ClearGreen Baths - Reuse baths
Product Options
Bath size options
|
1500 x 700mm
|
1500 x 750mm
|
1600 x 700mm
|
1700 x 700mm
|
|
1700 x 750mm
|
1700 x 800mm
|
1800 x 750mm
|
|
As Shown

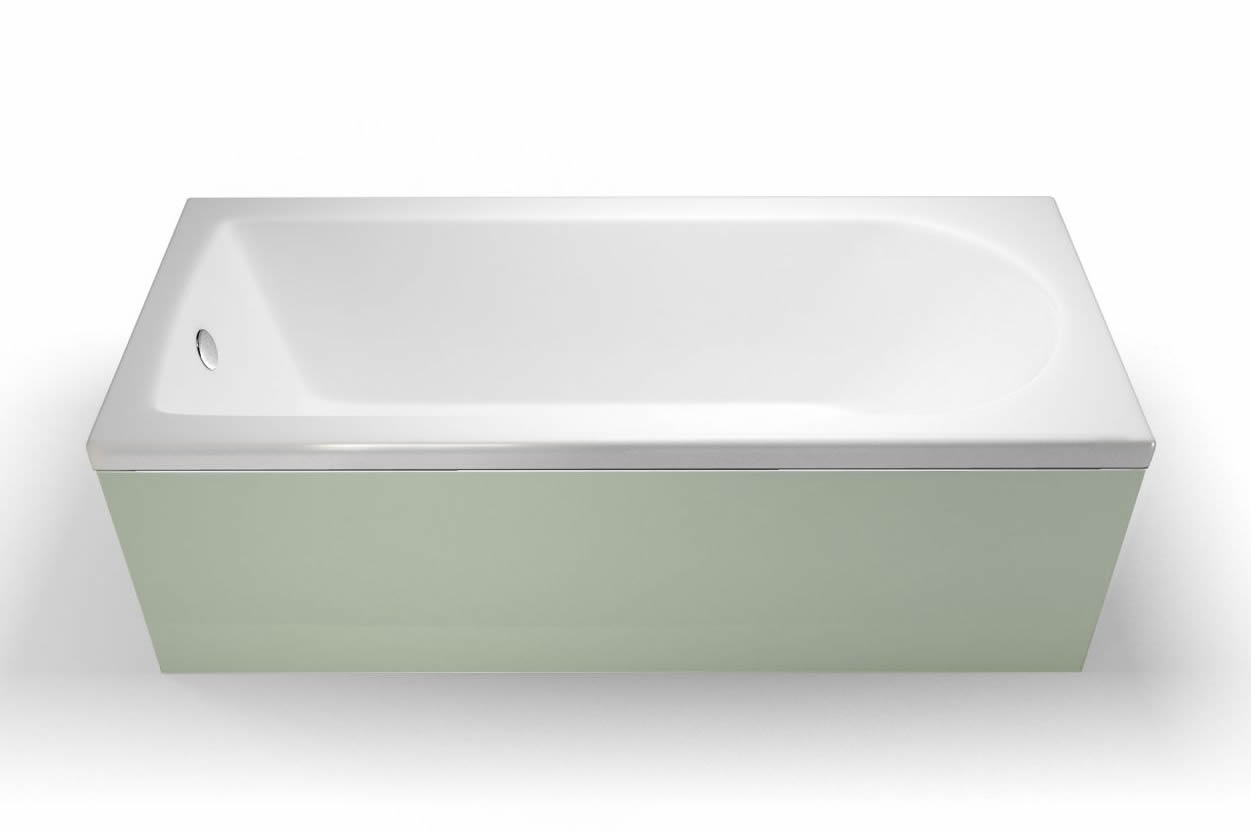

| R11 Reuse bath |
Colour
| R11 - bath - Gloss White |
Material
| R11 - bath - Acrylic |
Nett Weight
| R11 - bath - 20.75kg |
Gross Weight Including Packaging
| R11 - bath - 21.75kg |
Packed Dimension
| R11 - 1510 x 710 x 400 = 0.4288 m3 |
Bath water capacity
| 54 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| R23F - Front bath panel 1500 |
| R27E - End bath panel 700 |
| CW8 - Click-clack bath waste |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
| SP705 | rectangular ABS block on the Cleargreen bath |
| SP704 | square ABS block on the Cleargreen bath |
Downloads
-
2D CAD-File - DWG -
R11
(R11.dwg)
-

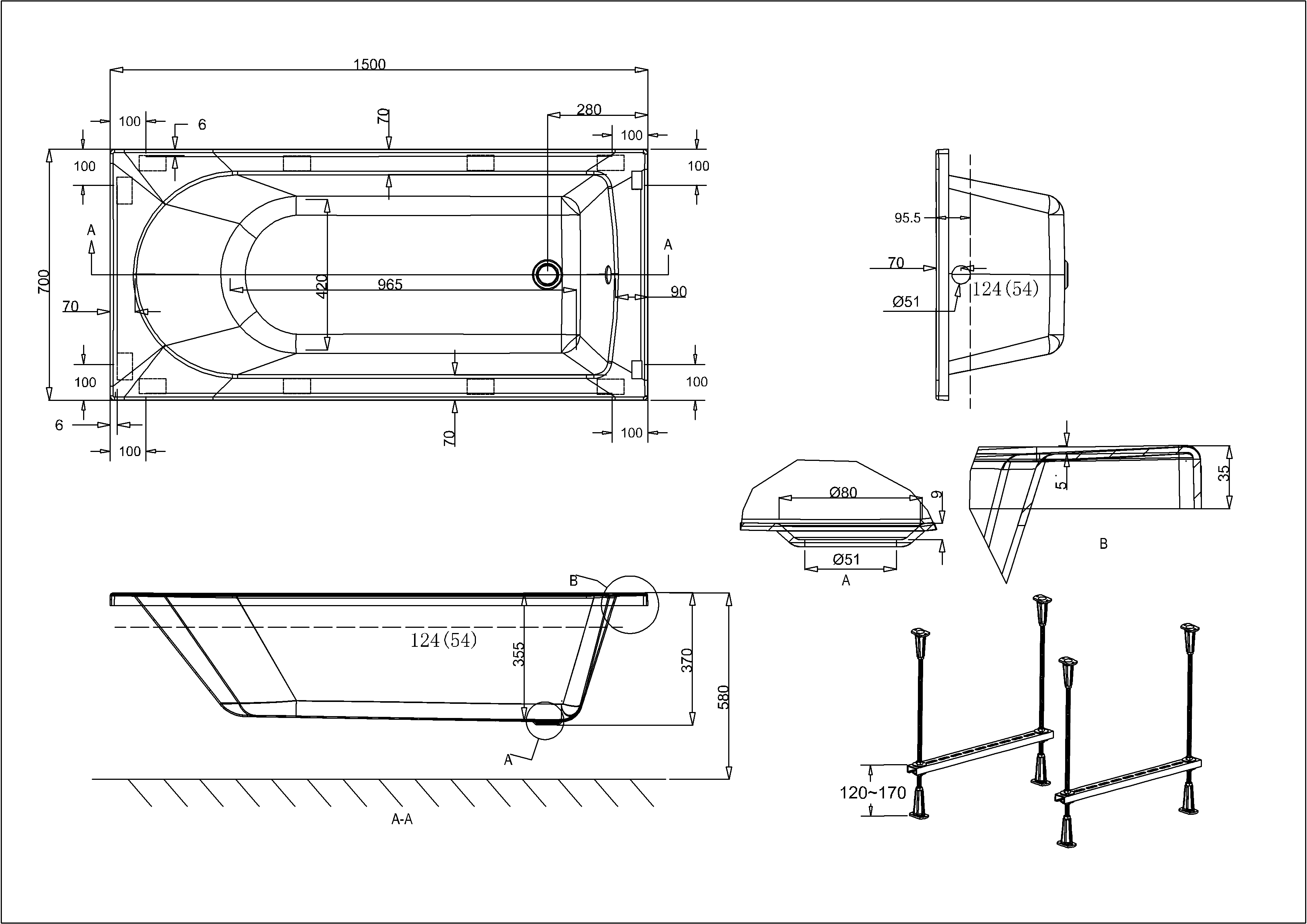

2D Drawing - PDF -
R11
(R11.pdf)
2D Drawing - PDF - R11
-
3D DWG - File - DWG
-
R11
(BSA-1504H WC.dwg)
-
3D DXF - File - DXF
-
R11
(BSA-1504H WC.dxf)
-
3D IGS - File - IGS
-
R11
(BSA-1504H WC.igs)
-
3D RFA BIMM Objects - File - RFA
-
R11
(R11.rfa)
-
