EcoRound End Panel

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

R20E EcoRound end bath panel

Colour

R20E - bath panel - Gloss White

Material

R20E - bath panel - Acrylic

Size

R20E - 525 x 720 x 40mm

Nett Weight

R20E - bath panel - 2.6kg

Gross Weight Including Packaging

R20E - bath panel - 3.1kg

Packed Dimension

R20E - 725 x 530 x 45 = 0.0173 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R20E (English)
Instructions - PDF - R20E (French)

2D CAD-File - DWG - R20E (R20E.dwg)

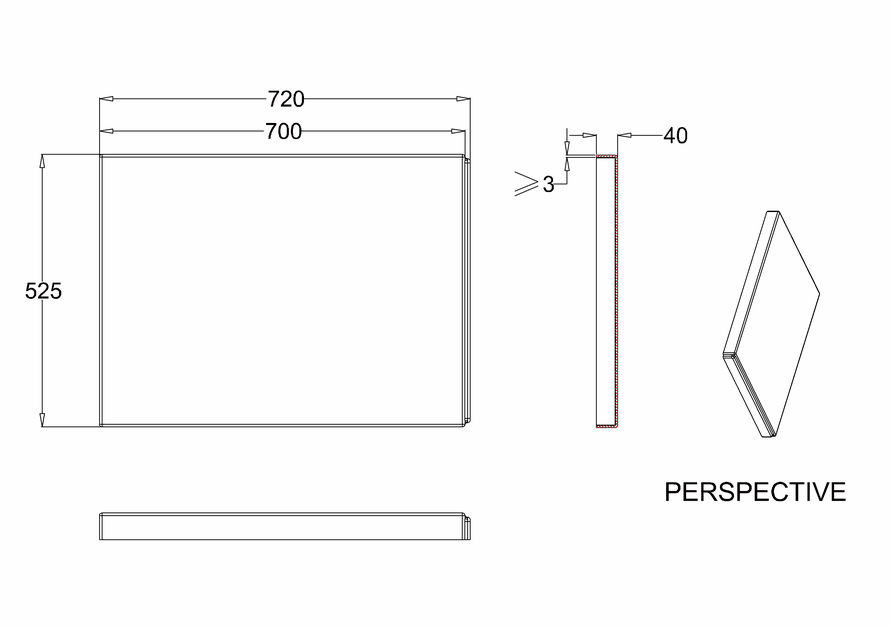

2D Drawing - PDF - R20E (R20E.pdf) 2D Drawing - PDF - R20E

3D DWG - File - DWG - R20E (BSAB-694-B.dwg)
3D DXF - File - DXF - R20E (BSAB-694-B.dxf)
3D IGS - File - IGS - R20E (BSAB-694-B.igs)
3D RFA BIMM Objects - File - RFA - R20E (R20E.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
