EcoSquare Front Panel

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

R18F EcoSquare front bath panel

Colour

R18F - bath panel - Gloss White

Material

R18F - bath panel - Acrylic

Size

R18F - 540 x 1700 x 40mm

Nett Weight

R18F - bath panel - 5.2kg

Gross Weight Including Packaging

R18F - bath panel - 5.7kg

Packed Dimension

R18F - 1710 x 545 x 50 = 0.0466 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R18F (English)
Instructions - PDF - R18F (French)

2D CAD-File - DWG - R18F (R18F.dwg)

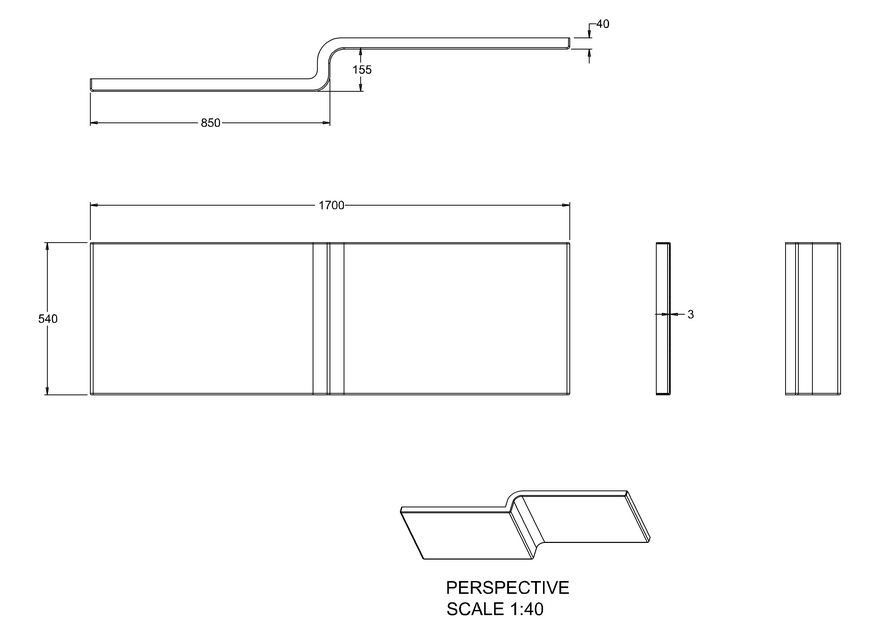

2D Drawing - PDF - R18F (R18F.pdf) 2D Drawing - PDF - R18F

3D DWG - File - DWG - R18F (BSAB-1785-A.dwg)
3D DXF - File - DXF - R18F (BSAB-1785-A.dxf)
3D IGS - File - IGS - R18F (BSAB-1785-A.igs)
3D RFA BIMM Objects - File - RFA - R18F (R18F.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
