EcoRound Front Panel

asaq2.Model.Web_product_new?.web_name

Product Options

EcoRound panel size options

EcoRound Front Panel 150cm

150cm panel

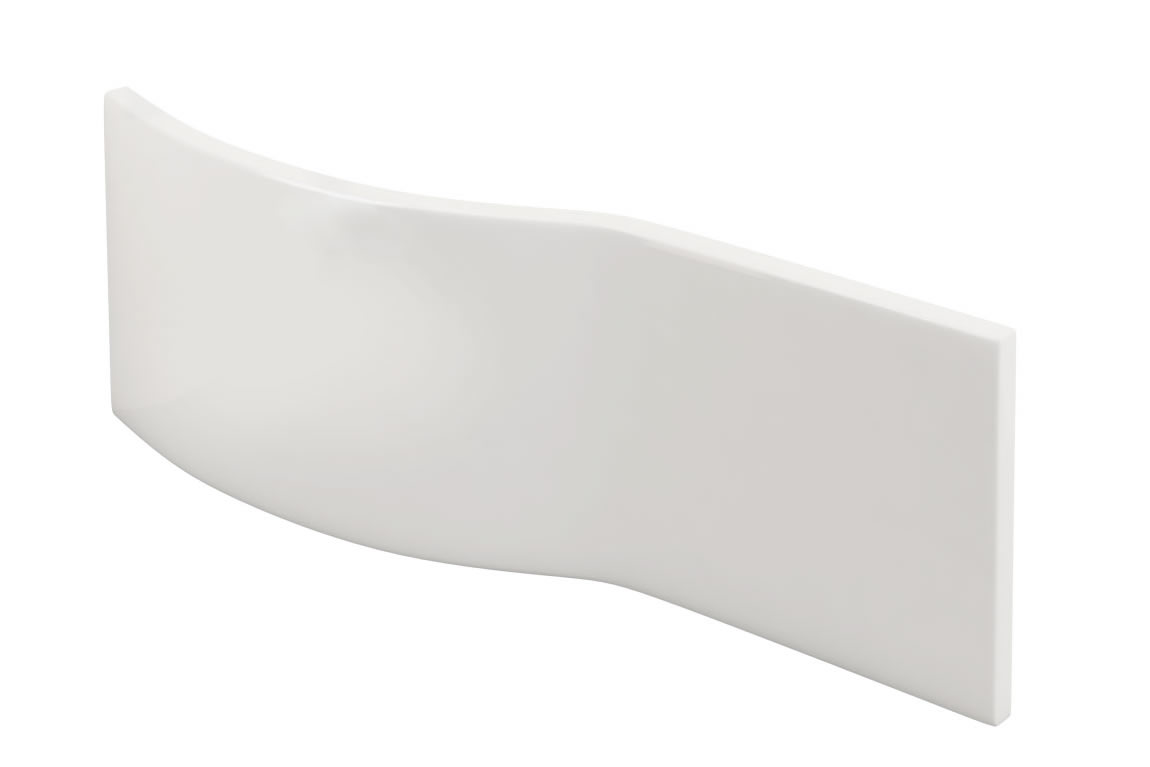

EcoRoundFront Panel 170cm

170cm panel

Alternate Text

As Shown

R20F 1500mm EcoRound front bath panel

Colour

R20F - bath panel - Gloss White

Material

R20F - bath panel - Acrylic

Size

R20F - 525 x 1500 x 40mm

Nett Weight

R20F - bath panel - 4.9kg

Gross Weight Including Packaging

R20F - bath panel - 5.4kg

Packed Dimension

R20F - 1510 x 530 x 45 = 0.036 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379	cleargreen bath panel spares
SP628	set of clips for bath panels (1 set of 8 pieces)

Downloads

Instructions - PDF - R20F (English)
Instructions - PDF - R20F (French)

2D CAD-File - DWG - R20F (R20F.dwg)

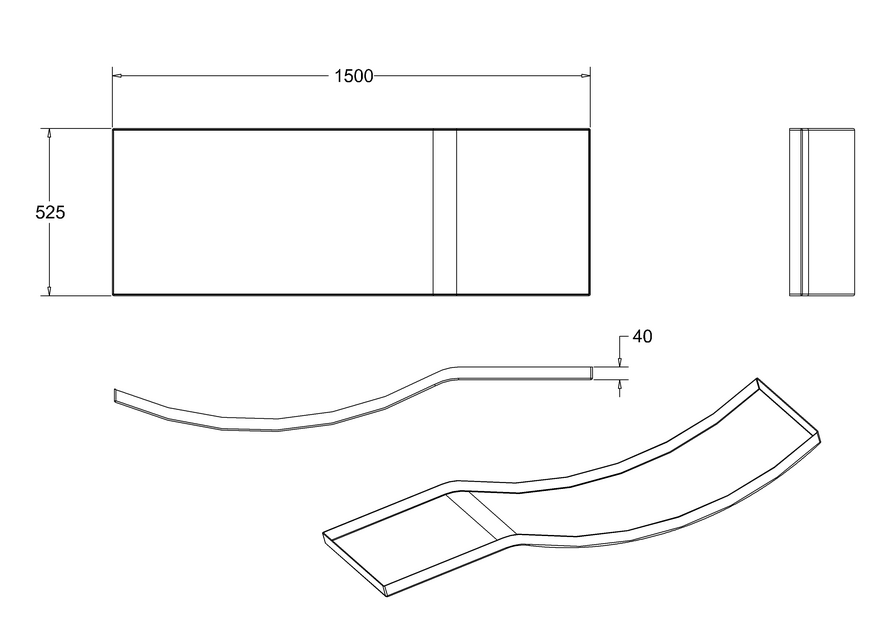

2D Drawing - PDF - R20F (R20F.pdf) 2D Drawing - PDF - R20F

3D DWG - File - DWG - R20F (BS-1592LR-FRONT PANEL.dwg)
3D DXF - File - DXF - R20F (BS-1592LR-FRONT PANEL.dxf)
3D IGS - File - IGS - R20F (BS-1592LR-FRONT PANEL.igs)
3D RFA BIMM Objects - File - RFA - R20F (R20F.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
