Bathscreen with inline panel
Product Options
Bathscreen options
|

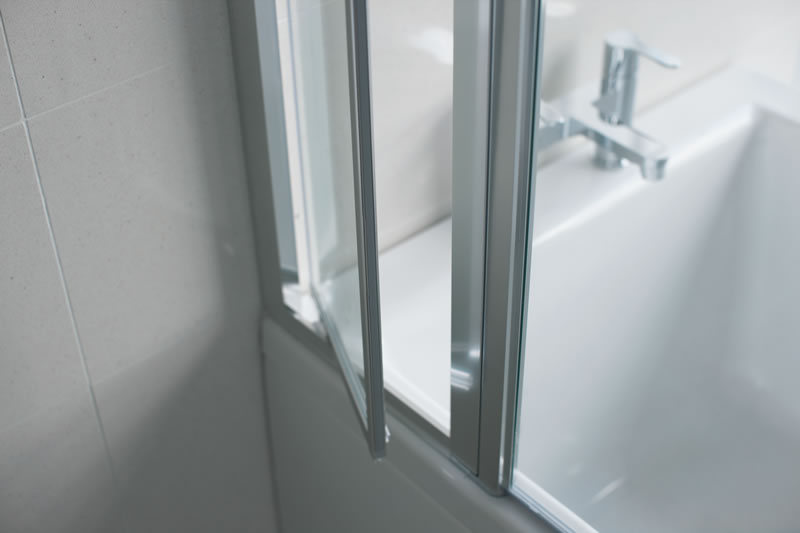

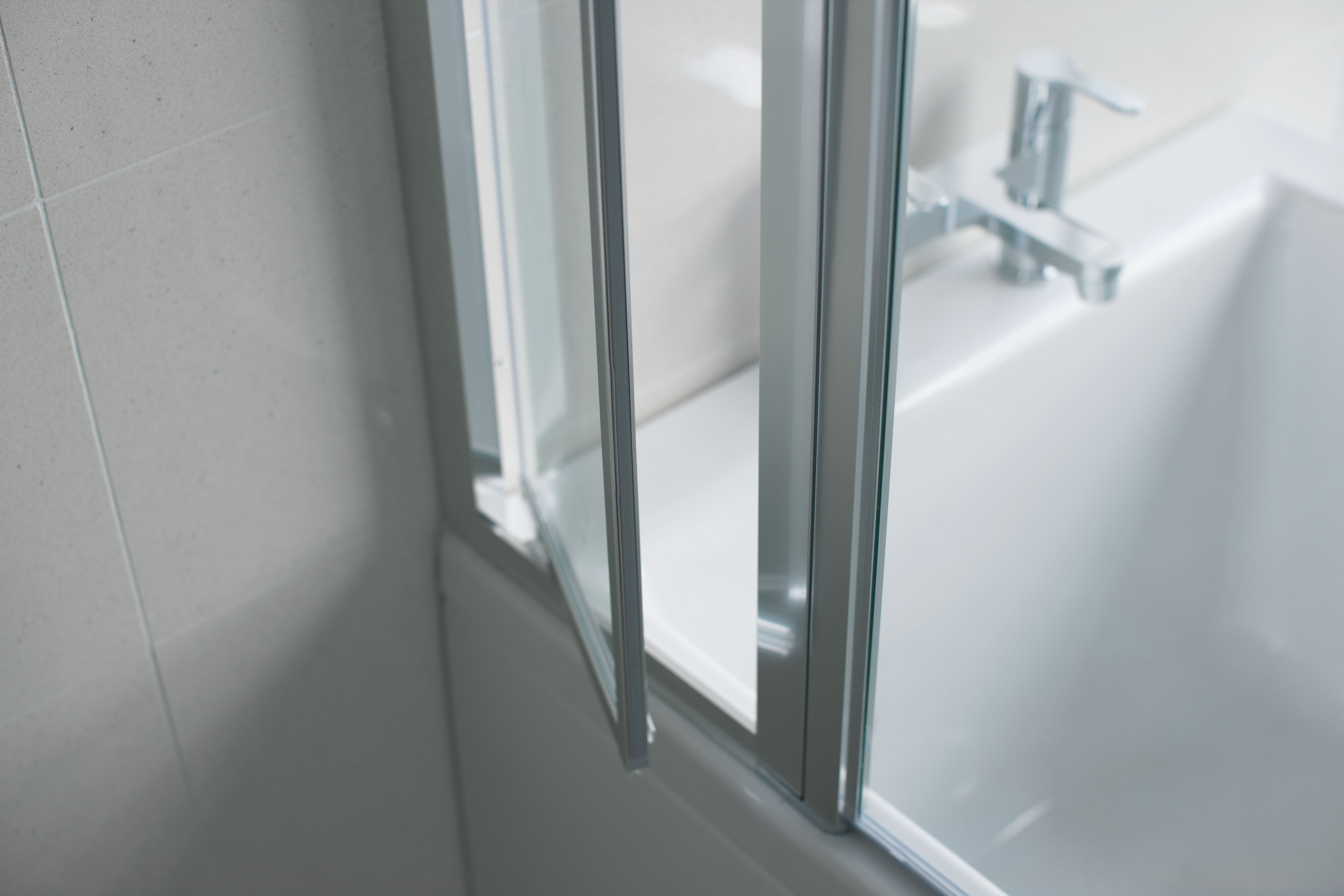

with access panel
|

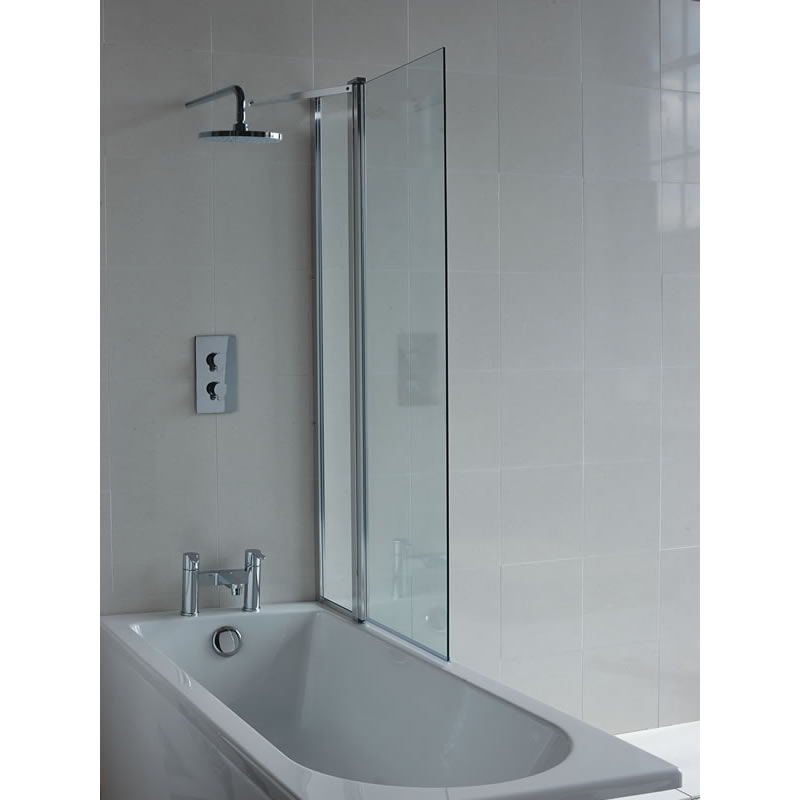

with fixed panel
|
As Shown
| BS3 Bathscreen with access panel |
Material
| BS3 - bathscreen - Aluminum |
Size
| BS3 - 850 x 1450mm |
Nett Weight
| BS3 - bathscreen - 19kg |
Gross Weight Including Packaging
| BS3 - bathscreen - 21.2kg |
Packed Dimension
| BS3 - 1535 x 635 x 95 = 0.0926 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Glass thickness: 6mm & 8mm |
|
Screen opens both inwards and outwards |
|
Can be fitted to either left or right hand baths |
|
Safety glass with 3M Easy Clean Coating |
| SP177 | bottom waterproof strip for BS1, BS2, BS3, BS6, BS7 bathscreens |
| SP563 | magnetic stripe for BS3 (in pair) |
| SP229 | support bar L=370 for BS2, BS3, BS8L, BS8R |
| SP181 | top and bottom waterproof strips for access panel door on product BS8L, BS8R, BS3 – pair |
| SP179 | vertical seal between profile & glass for access panel on BS3, BS8L & BS8R screens |
| SP182 | vertical seal between profile & glass for BS2, BS3, BS8L & BS8R bathscreens |
Downloads
-
2D CAD-File - DWG -
BS3
(DCP9LXBS3.dwg)
-

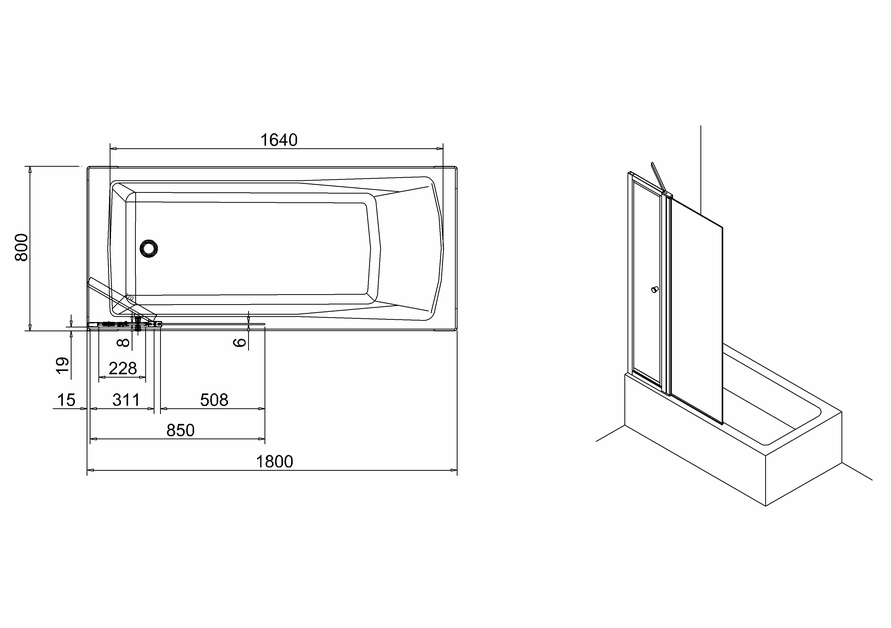

2D Drawing - PDF -
BS3
(DCP9LXBS3.pdf)
2D Drawing - PDF - BS3
-
3D DWG - File - DWG
-
BS3
(BS3.dwg)
-
3D DXF - File - DXF
-
BS3
(BS3.dxf)
-
3D IGS - File - IGS
-
BS3
(BS3.igs)
-
3D RFA BIMM Objects - File - RFA
-
BS3
(BS3.rfa)
