EcoCurve bathscreen

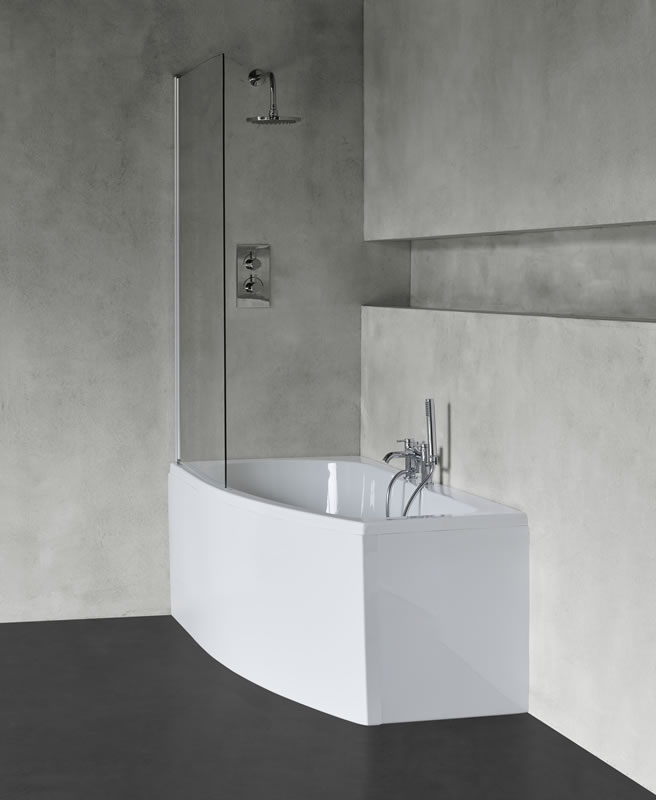

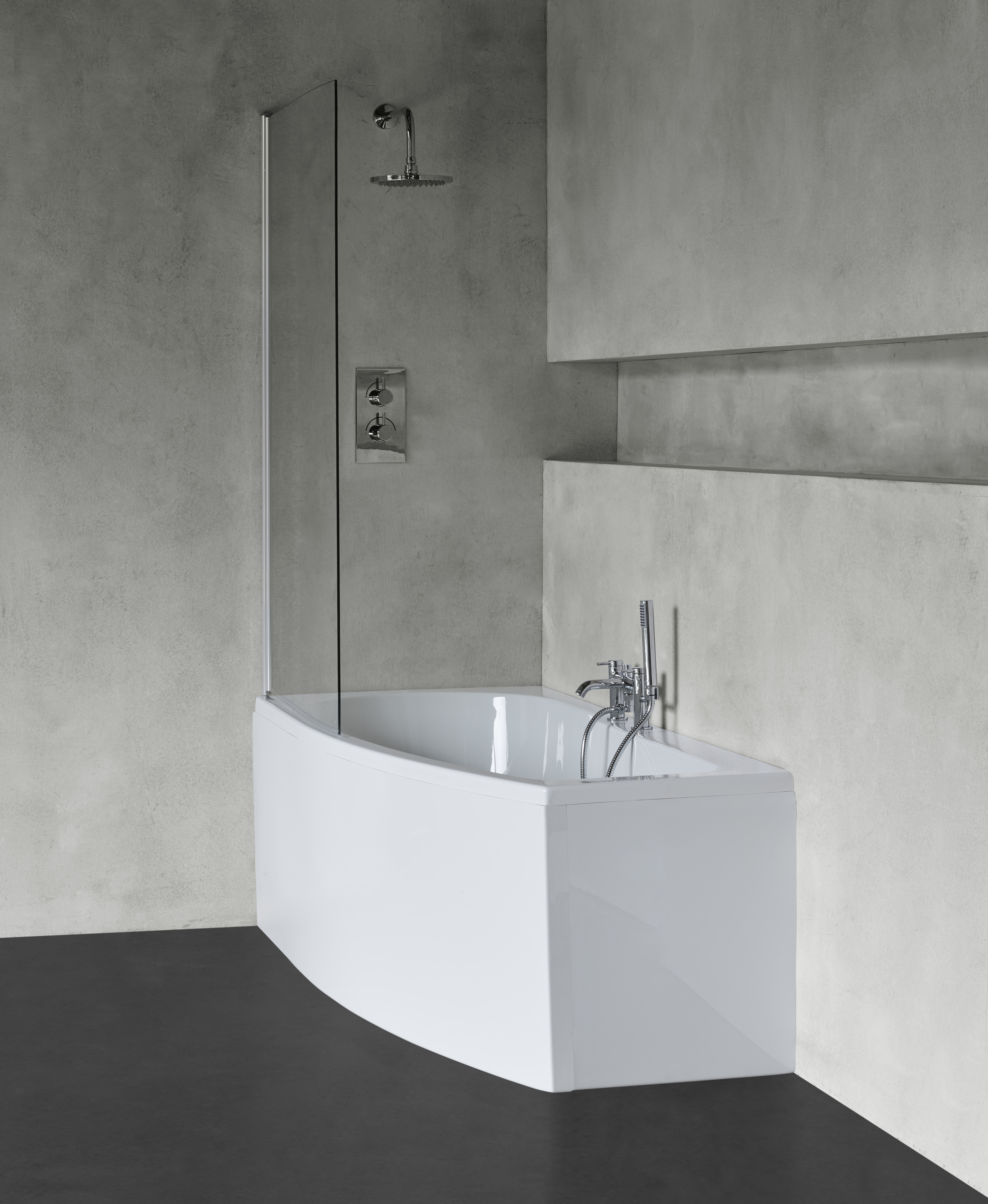

As Shown
| BS6 EcoCurve bathscreen |
Material
| BS6 - bathscreen - Aluminum |
Size
| BS6 - 850 x 1450mm |
Nett Weight
| BS6 - bathscreen - 18kg |
Gross Weight Including Packaging
| BS6 - bathscreen - 20.8kg |
Packed Dimension
| BS6 - 1550 x 950 x 95 = 0.1399 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M Easy Clean Coating |
|
Screen opens both inwards and outwards |
|
Can be fitted to either left or right hand baths |
| SP177 | bottom waterproof strip for BS1, BS2, BS3, BS6, BS7 bathscreens |
| SP214 | spare fitting kit for BS1 & BS6 bathscreen |
| SP178 | vertical seal between profile & glass for BS1, BS5L, BS5R & BS6 bathscreens |
Downloads
-
2D CAD-File - DWG -
BS6
(DCP9FG 1 layer 2012 02 15.dwg)
-

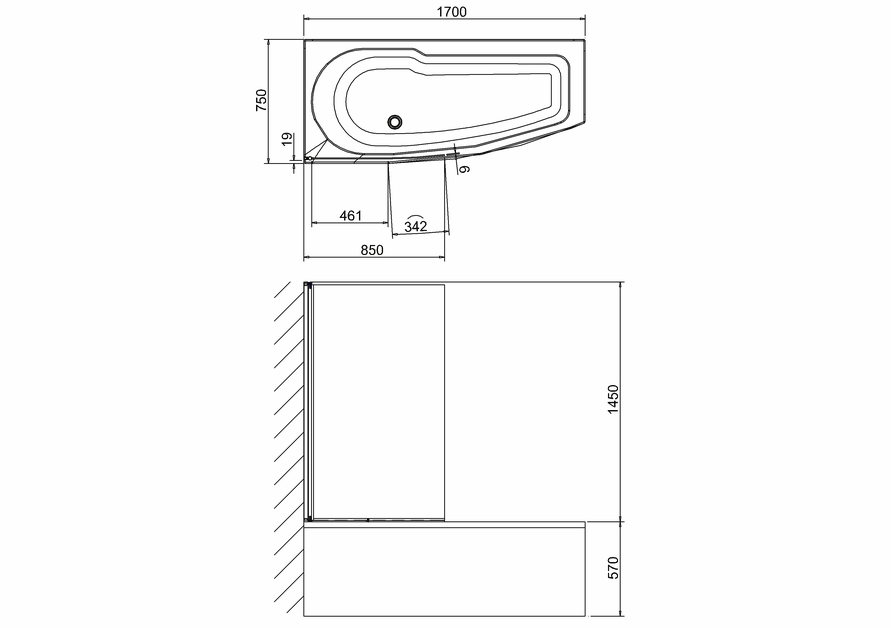

2D Drawing - PDF -
BS6
(DCP9FG 1 layer 2012 02 15.pdf)
2D Drawing - PDF - BS6
-
3D DWG - File - DWG
-
BS6
(BS6.dwg)
-
3D DXF - File - DXF
-
BS6
(BS6.dxf)
-
3D IGS - File - IGS
-
BS6
(BS6.igs)
-
3D RFA BIMM Objects - File - RFA
-
BS6
(BS6.rfa)
