EcoRound bathscreen
As Shown
| BS7 EcoRound bathscreen |
Material
| BS7 - bathscreen - Aluminum |
Size
| BS7 - 900 x 1450mm |
Nett Weight
| BS7 - bathscreen - 18.7kg |
Gross Weight Including Packaging
| BS7 - bathscreen - 21.9kg |
Packed Dimension
| BS7 - 1510 x 923 x 145 = 0.2021 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Safety glass with 3M Easy Clean Coating |
|
Screen opens both inwards and outwards |
|
Can be fitted to either left or right hand baths |
| SP1003 | adjustable profile (including the waterproof strip) of product BS7 |
| SP177 | bottom waterproof strip for BS1, BS2, BS3, BS6, BS7 bathscreens |
| SP219 | spare fitting kit for BS7 bathscreen |
| SP183 | vertical seal between profile & glass for BS7 bathscreen |
| SP210 | wall profile for BS7 bathscreen |
Downloads
-
2D CAD-File - DWG -
BS7
(BS7.dwg)
-

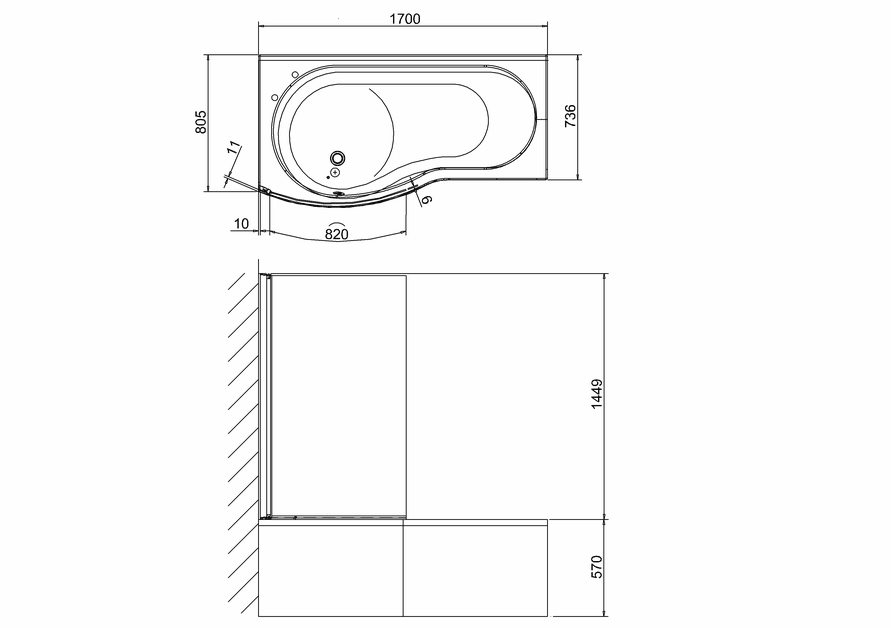

2D Drawing - PDF -
BS7
(BS7.pdf)
2D Drawing - PDF - BS7
-
3D DWG - File - DWG
-
BS7
(BS7.dwg)
-
3D DXF - File - DXF
-
BS7
(BS7.dxf)
-
3D IGS - File - IGS
-
BS7
(BS7.igs)
-
3D RFA BIMM Objects - File - RFA
-
BS7
(BS7.rfa)
-

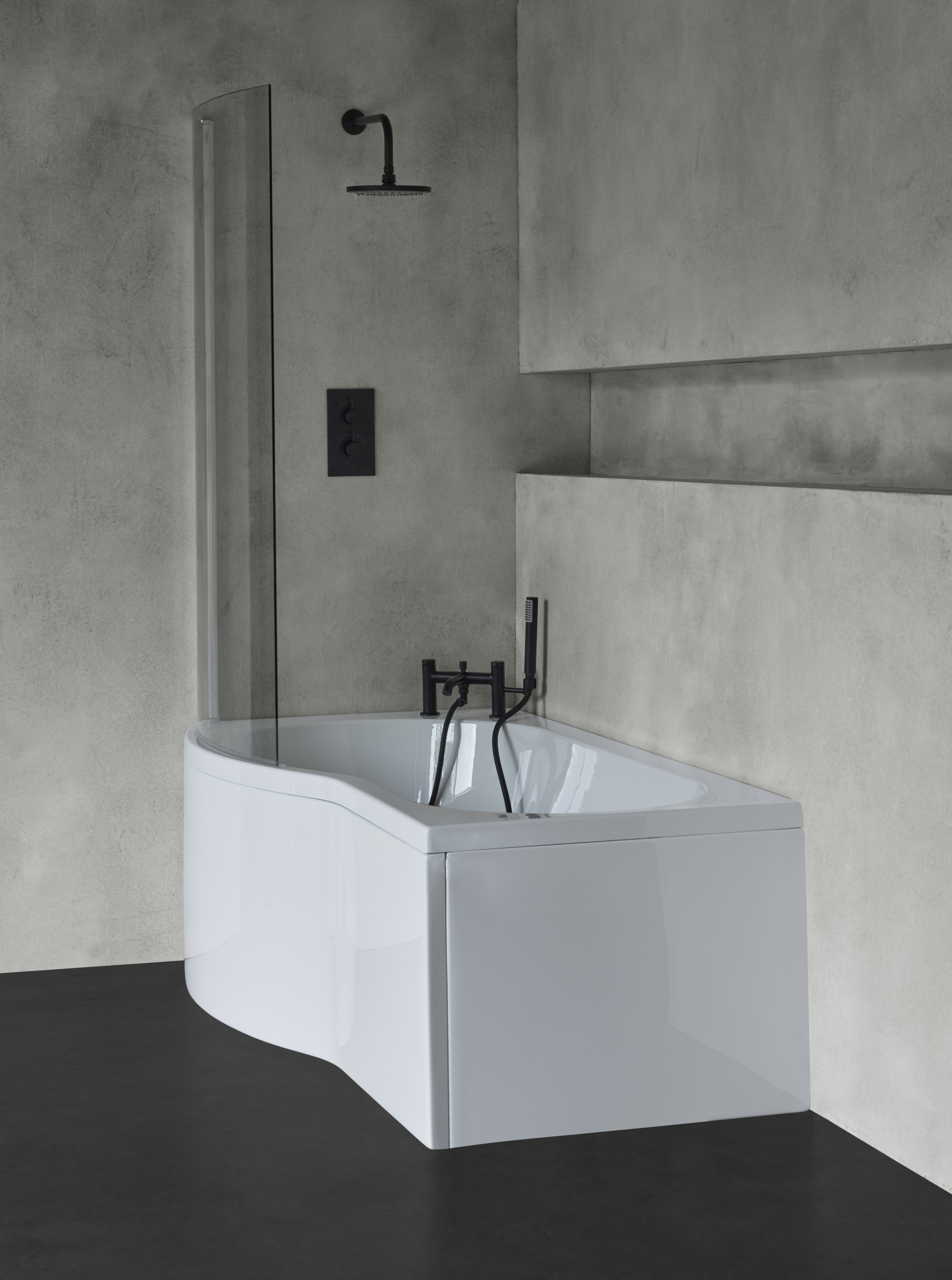

Lifestyle image 1 -
jpg -

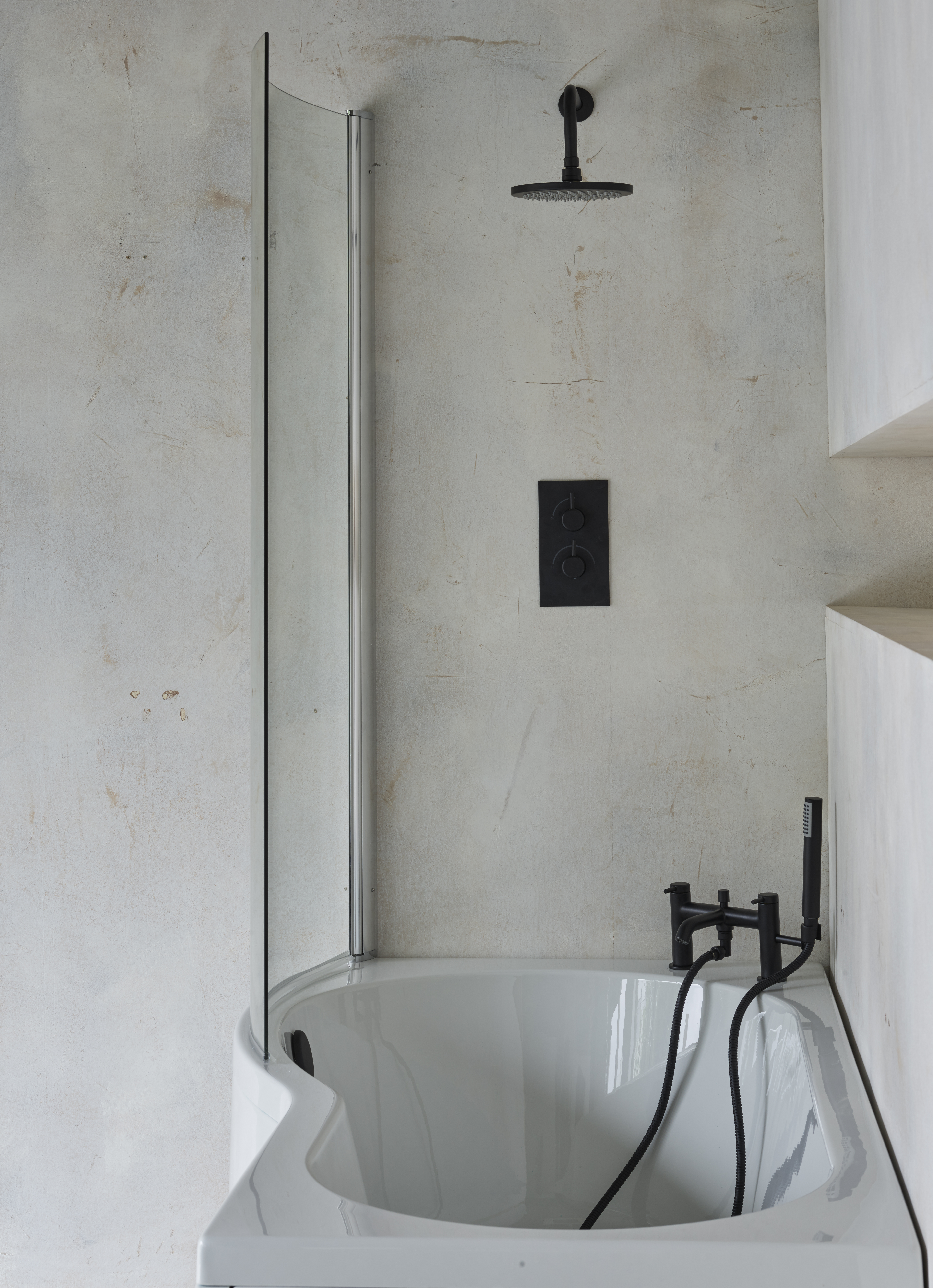

Lifestyle image 2 -
