Freefortis double - ended free-standing bath & surround
As Shown
| R35 Freefortis inner skin bath |
| R36 Freefortis bath outer skin |
Nett Weight
| R35 - bath - 29kg |
| R36 - Bath surround - 25kg |
Gross Weight Including Packaging
| R35 - bath - 30kg |
| R36 - Bath surround - 27kg |
Packed Dimension
| R35 - 1815 x 810 x 455 = 0.6689 m3 |
| R36 - 1795 x 800 x 605 = 0.8688 m3 |
Bath water capacity
| 95 litres displaced water capacity |
Tap Hole Options
| 0,1,2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14516:2006 |
Additional Information
|
Overflow hole is predrilled |
| SP237 | leg sets for Freestark, Freefortis, Nouveau, Nouveau Petite baths |
Downloads
- Instructions - PDF - R35 (English)
- Instructions - PDF - R36 (English)
- Instructions - PDF - R36 (French)
-
2D CAD-File - DWG -
R35 R36
(R35R36.dwg)
-

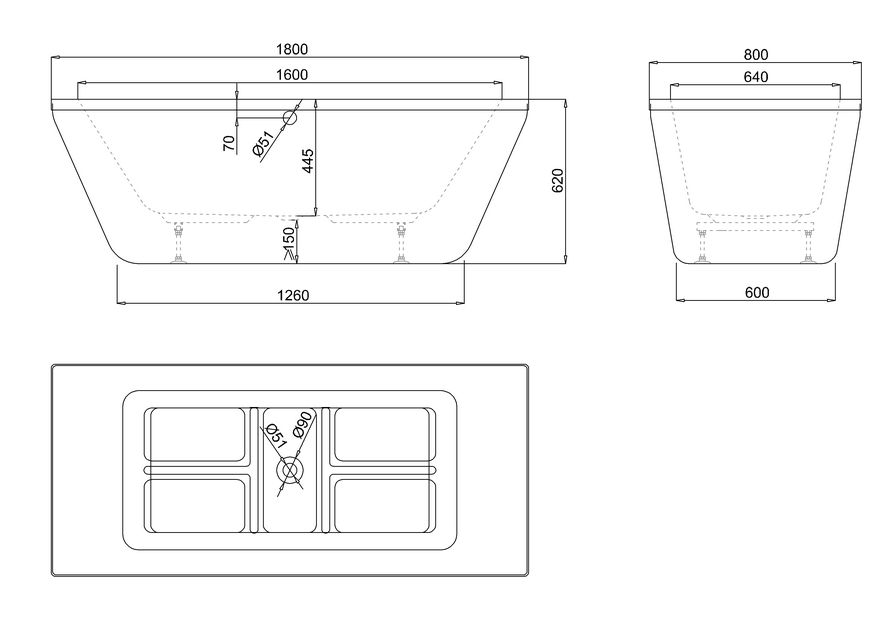

2D Drawing - PDF -
R35 R36
(R35R36.pdf)
2D Drawing - PDF - R35 R36
-
3D DWG - File - DWG
-
R35 R36
(3888.dwg)
-
3D DXF - File - DXF
-
R35 R36
(3888.dxf)
-
3D IGS - File - IGS
-
R35 R36
(3888.igs)
-
3D RFA BIMM Objects - File - RFA
-
R35 R36
(3888.rfa)
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -
Lifestyle image 4 -
tiff
jpg -
Lifestyle image 5 -
tiff
jpg -

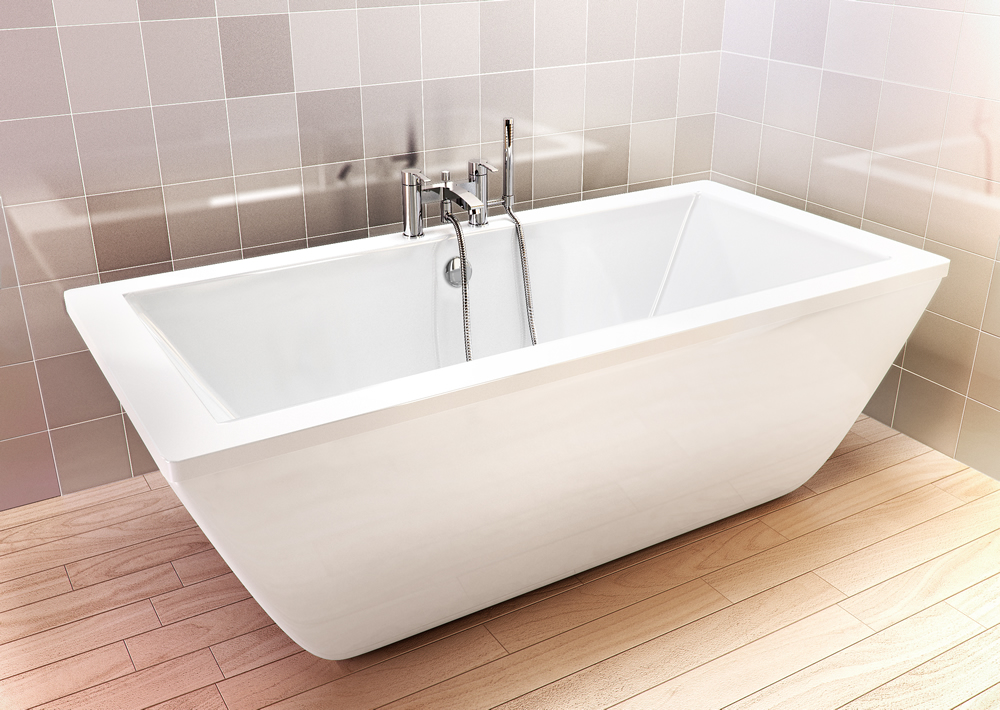

Product image 1 -
jpg
