Freefuerte double - ended free-standing bath & surround
As Shown
| R31 Freefuerte inner skin bath |
| R32 Freefuerte bath outer skin |
Nett Weight
| R31 - bath - 30kg |
| R32 - Bath surround - 15kg |
Gross Weight Including Packaging
| R31 - bath - 32kg |
| R32 - Bath surround - 17kg |
Packed Dimension
| R31 - 1750 x 885 x 625 = 0.968 m3 |
| R32 - 1750 x 875 x 640 = 0.98 m3 |
Bath water capacity
| 62 litres displaced water capacity |
Tap Hole Options
| 0, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14516:2006 |
Additional Information
|
Overflow hole is predrilled |
| SP236 | leg sets for Freefuerte bath |
Downloads
- Instructions - PDF - R31 (English)
- Instructions - PDF - R32 (English)
- Instructions - PDF - R31 (French)
-
2D CAD-File - DWG -
R31 R32
(R31R32.dwg)
-

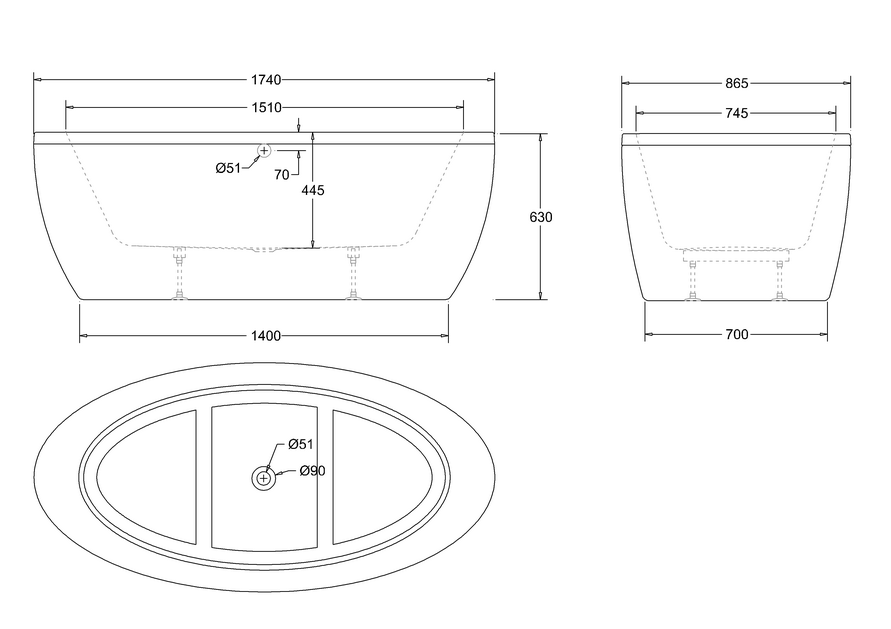

2D Drawing - PDF -
R31 R32
(R31R32.pdf)
2D Drawing - PDF - R31 R32
-
3D DWG - File - DWG
-
R31 R32
(3890.dwg)
-
3D DXF - File - DXF
-
R31 R32
(3890.dxf)
-
3D IGS - File - IGS
-
R31 R32
(3890.igs)
-
3D RFA BIMM Objects - File - RFA
-
R31 R32
(3890.rfa)
-
Lifestyle image 1 -
jpg -
Lifestyle image 2 -
tiff
jpg -
Lifestyle image 3 -
tiff
jpg -

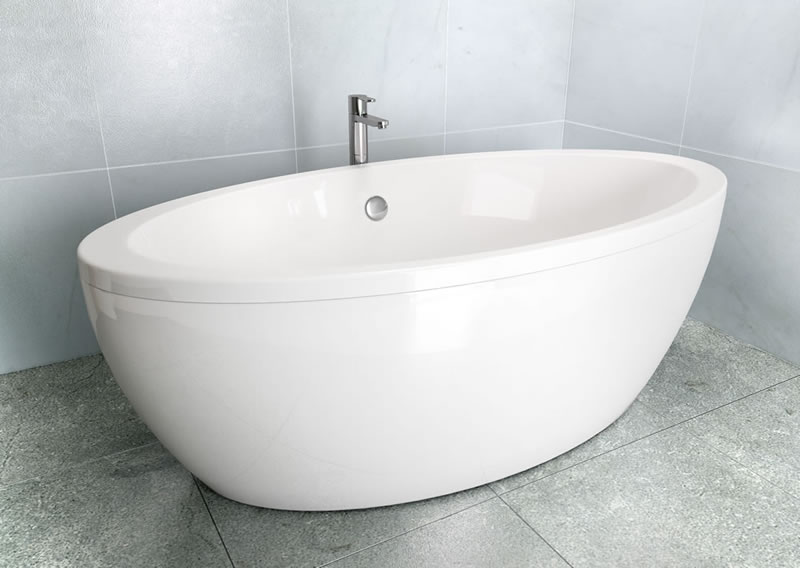

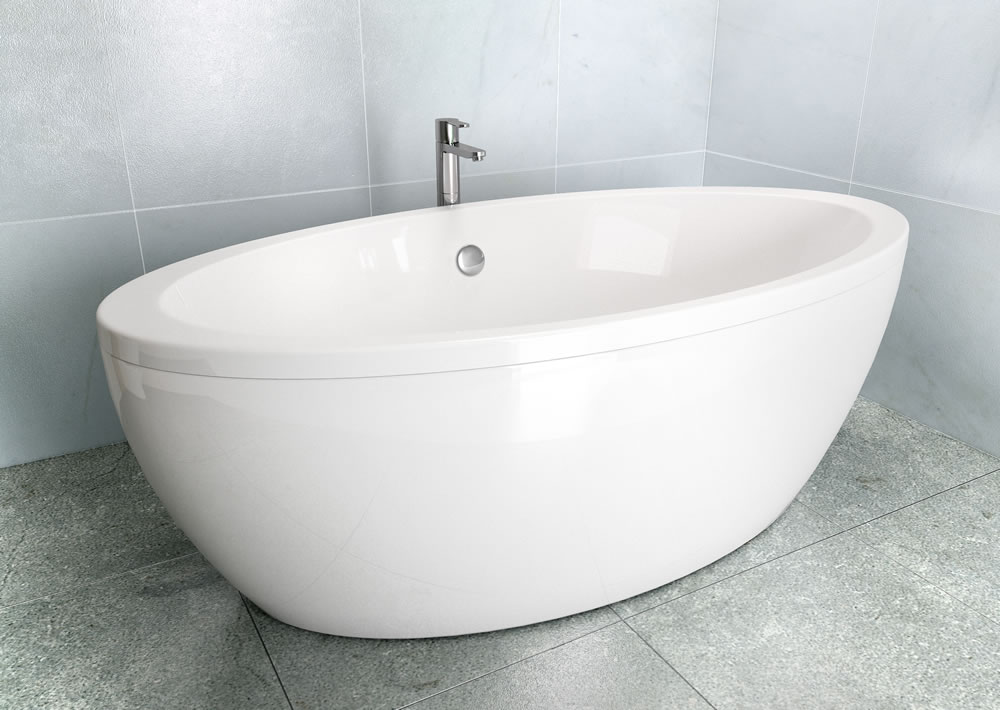

Product image 1 -
