Chelsea Straight Basin Mixer
Product Options
Tap Base options
Indicies & lever finish
waste options
|

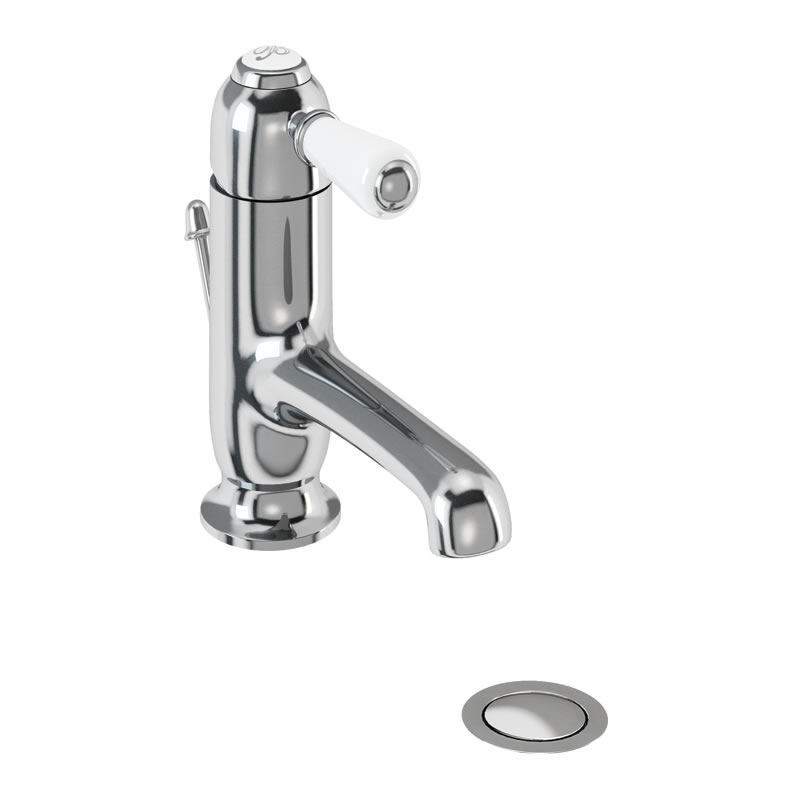

Standard base
|

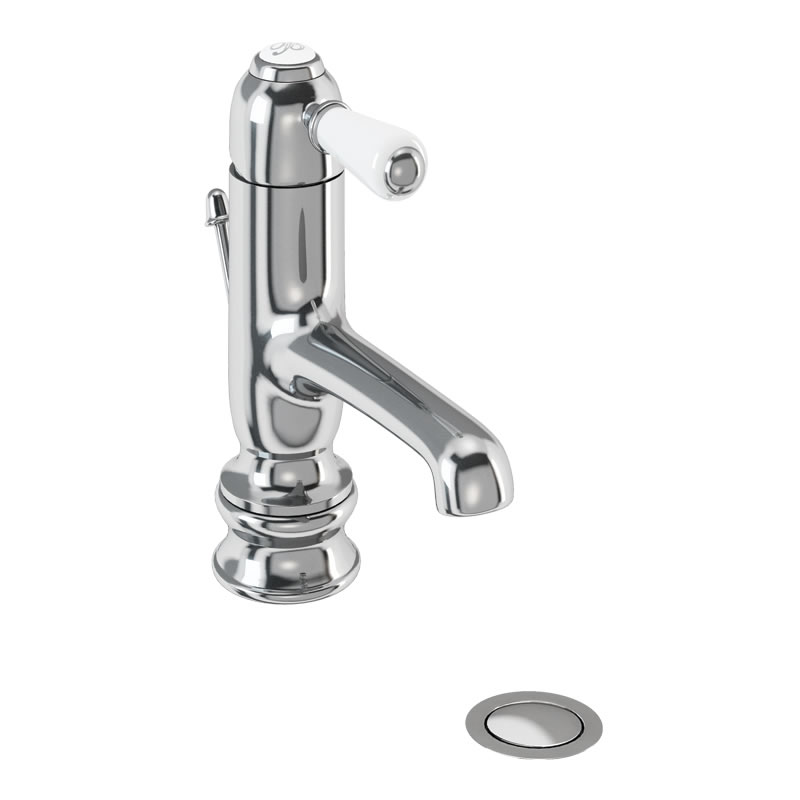

Regent base
|
|
White
|
Medici
|
Black
|
|
with pop-up waste
|
without waste
|
As Shown
| CH20 Chelsea straight basin mono tap with pop up waste |
| CH20 - Combined product code |
Colour
| CH20 - tap - Polished Chrome |
Material
| CH20 - tap - Brass |
Nett Weight
| CH20 - tap - 1.525kg |
Gross Weight Including Packaging
| CH20 - tap - 1.86kg |
Packed Dimension
| CH20 - 310 x 245 x 75 = 0.0057 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
ACS Approved |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 4.83 | n/a | 8.21 | 14.36 | 18 | n/a | n/a |
| Spout (aerator) | 2.9 | n/a | 4.99 | 9.11 | 11.09 | n/a | n/a |
| SP47 | b logo ceramic indice (D=21.4mm) for all finishes products of V12, CH19, R6, R7, W25 |
| SP1318 | cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23 |
| SP579 | cartridge of product CH19, CH20, CH21, CH22, CH23 |
| SP1309 | cartridge retaining nut for CH19, CH20, CH21, CH22, CH23 |
| SP1054 | chelsea tap lever of CH19, CH20, CH21, CH22, CH23 |
| SP817 | chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
| SP449 | flow straightener for all finishes products of T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23 |
| SP825 | lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23 |
| SP194 | o ring for all finishes products of T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT |
| SP655 | pair of flexible hose for all finishes products of T27-QT, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11 |
| SP974 | plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23 |
| SP807 | pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23 |
| SP942 | tap fixings (including black washer, metal plate, stud and nut) for all finishes products of T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23 |
| SP1238 | the decorative head for CH20 |
Downloads
-
2D CAD-File - DWG -
CH20
(CH20_LD.dwg)
-
2D Drawing - PDF -
CH20
(CH20_LD.pdf)
2D Drawing - PDF - CH20
-
3D DWG - File - DWG
-
CH20
(CH20_igs.dwg)
-
3D DXF - File - DXF
-
CH20
(CH20_igs.dxf)
-
3D IGS - File - IGS
-
CH20
(CH20_igs.igs)
-
3D RFA BIMM Objects - File - RFA
-
CH20
(CH20_igs.rfa)
- 3D DWG - File - DWG - CH20 (CH20_igs.dwg)
- 3D DXF - File - DXF - CH20 (CH20_igs.dxf)
- 3D IGS - File - IGS - CH20 (CH20_igs.igs)
