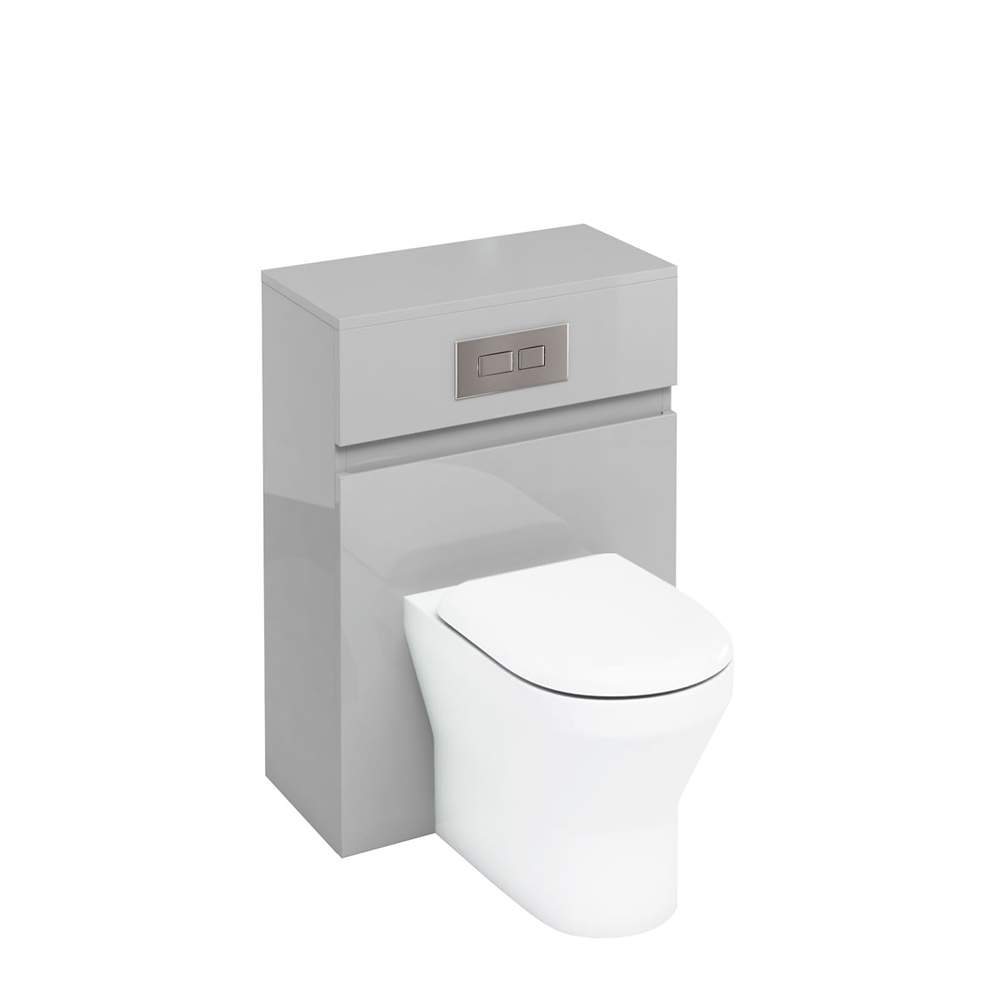

600mm back-to-wall WC cabinet with dual flush plate
Product Options
Colour options:
|
White
|
Light Grey
|
As Shown
| AW32W 600mm back to wall WC unit (including cistern tank and front dual flush plate),White |
Nett Weight
| AW32W - base unit - 15.5kg |
Gross Weight Including Packaging
| AW32W - base unit - 16.5kg |
Packed Dimension
| AW32W - 700 x 400 x 920 = 0.2576 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Please ensure that the chosen WC pan is tall enough to cover the cut out |
|
Vinyl wrap gloss finish |
|
Full and half dual flush system |
|
Removable front access panel |
|
Rigid solid carcass - not flat pack |
|
Work top required |
Downloads
-
2D CAD-File - DWG -
AW32W
(AW34W_LD.dwg)
-
2D Drawing - PDF -
AW32W
(AW34W_LD.pdf)
2D Drawing - PDF - AW32W
-
3D DWG - File - DWG
-
AW32W
(AW32-20201119.dwg)
-
3D DXF - File - DXF
-
AW32W
(AW32-20201119.dxf)
-
3D IGS - File - IGS
-
AW32W
(AW32-20201119.igs)
-
3D RFA BIMM Objects - File - RFA
-
AW32W
(AW32-20201119.rfa)
