Basin bottle trap

asaq2.Model.Web_product_new?.web_name

Product Options

Waste options

Round bottomed basin bottle trap

Round bottomed

Square bottomed basin bottle trap

Square bottomed

Alternate Text

As Shown

W17 Square basin bottle trap

Colour

W17 - bottle trap - Polished Chrome

Material

W17 - bottle trap - Brass

Size

W17 - 360 x 67 x 150mm

Nett Weight

W17 - bottle trap - 0.94kg

Gross Weight Including Packaging

W17 - bottle trap - 1.16kg

Packed Dimension

W17 - 405 x 150 x 60 = 0.0036 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 247:2002

SP1217	the top washer for all finishes products of W14, W17, W15, W13, HOX.0402
SP1284	wall decorative cover for W13, W14, W17

Downloads

Instructions - PDF - W17 (English)
Instructions - PDF - W17 (French)

2D CAD-File - DWG - W17 (W17_LD.dwg)

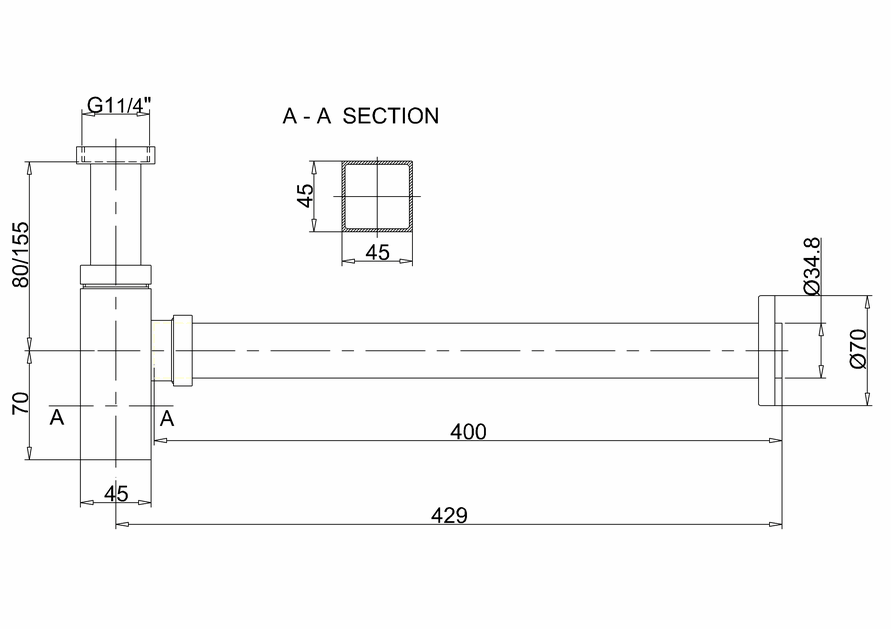

2D Drawing - PDF - W17 (W17_LD.pdf) 2D Drawing - PDF - W17

3D DWG - File - DWG - W17 (W17.dwg)
3D DXF - File - DXF - W17 (W17.dxf)
3D IGS - File - IGS - W17 (W17.igs)
3D RFA BIMM Objects - File - RFA - W17 (W17.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
