Basin bottle trap

asaq2.Model.Web_product_new?.web_name

Product Options

Waste options

Round bottomed basin bottle trap

Round bottomed

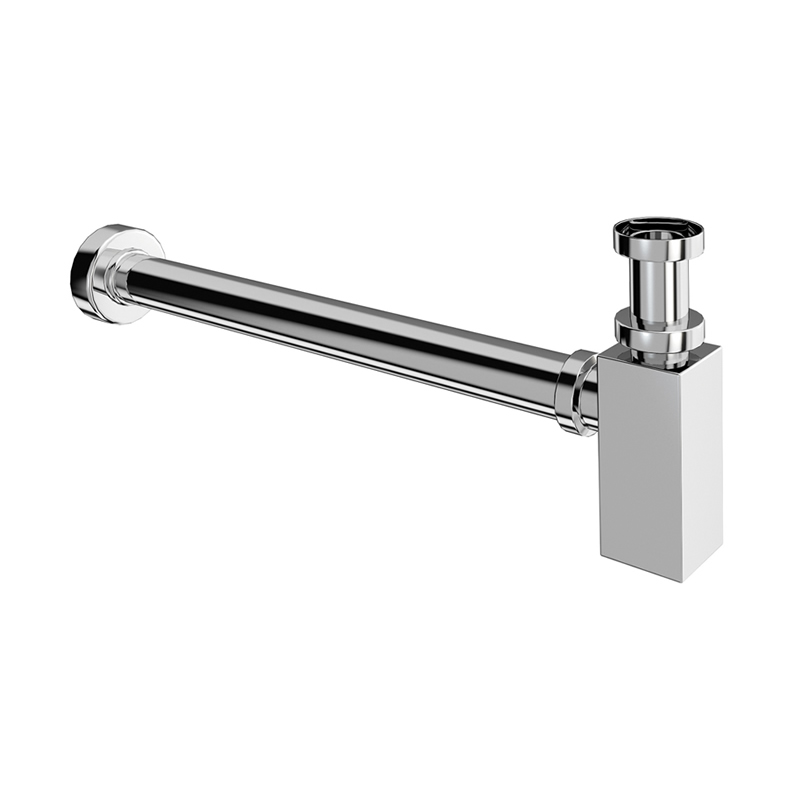

Square bottomed basin bottle trap

Square bottomed

Alternate Text

As Shown

W14 −

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 247:2002

SP909	Chrome pipe of product W14
SP1018	bottom part of product W14
SP1097	inner box for the W14
SP1217	the top washer for all finishes products of W14, W17, W15, W13, HOX.0402

Downloads

Instructions - PDF - W14 (English)
Instructions - PDF - (French)

2D CAD-File - DWG - W14 (W14_4.dwg)

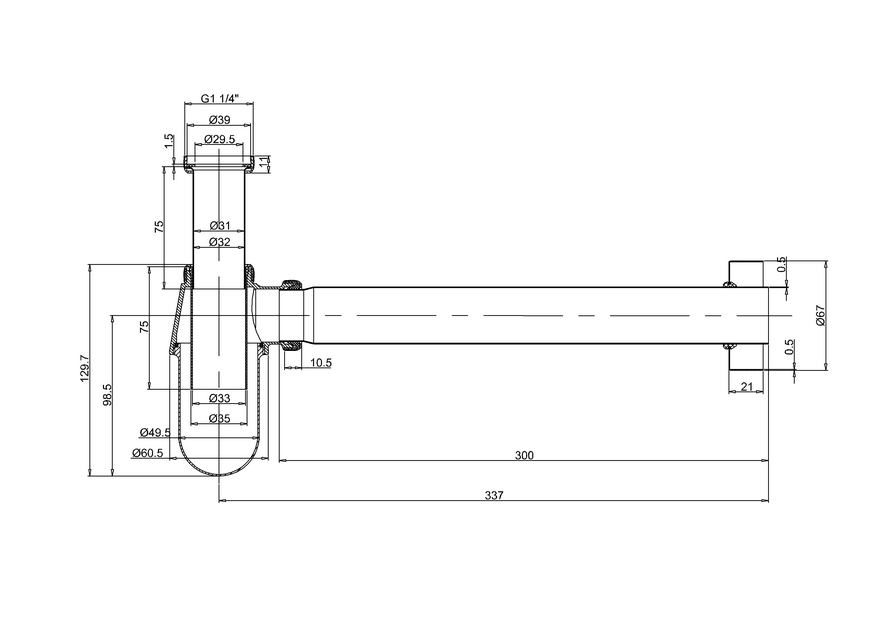

2D Drawing - PDF - W14 (W14_4.pdf) 2D Drawing - PDF - W14

3D DWG - File - DWG - W14 (W14.dwg )
3D DXF - File - DXF - W14 (W14.dxf )
3D IGS - File - IGS - W14 (W14.igs )
3D RFA BIMM Objects - File - RFA - W14 (W14.rfa)

Lifestyle image 1 - tiff pending.
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
