Large deep corner wire basket | BB Whitebook

Welcome to the Bathroom Brands Technical Whitebook

Large deep corner wire basket

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

A33 CHR Single corner wire basket, right installation 190X190X80

Colour

A33 CHR - wire basket - Polished Chrome

Material

A33 CHR - wire basket - Brass

Size

A33 CHR - 189 x 189 x 82mm

Nett Weight

A33 CHR - wire basket - 0.47kg

Gross Weight Including Packaging

A33 CHR - wire basket - 0.57kg

Packed Dimension

A33 CHR - 200 x 200 x 90 = 0.0036 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN248:2002

SP565

fixing bracket (including screws) of wire baskets A28 CHR, A29 CHR, A30 CHR, A31 CHR, A32 CHR, A33 CHR

Downloads

Instructions - PDF - A33 CHR (English)
Instructions - PDF - A33 CHR (French)

2D CAD-File - DWG - A33 CHR (A33CHR.dwg)

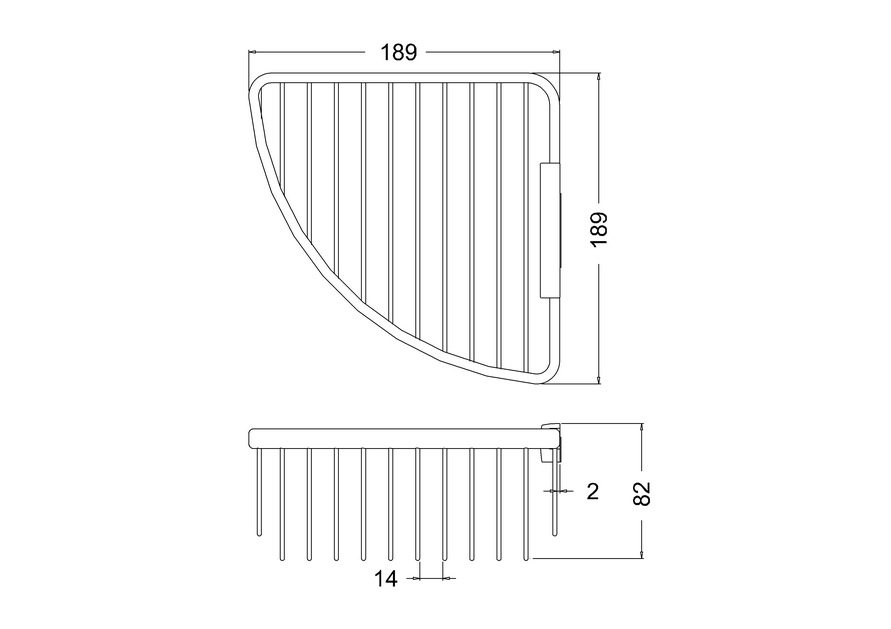

2D Drawing - PDF - A33 CHR (A33CHR.pdf) 2D Drawing - PDF - A33 CHR

3D DWG - File - DWG - A33 CHR (A33.dwg)
3D DXF - File - DXF - A33 CHR (A33.dxf)
3D IGS - File - IGS - A33 CHR (A33.igs)
3D RFA BIMM Objects - File - RFA - A33 CHR (A33.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.

Product name:
asaq2.Model.Web_product_new?.web_name
