Chelsea Curved Bidet Mixer with pop-up waste
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Base options
Chelsea curved bidet mixer with pop up waste Standard base Chelsea Regent curved bidet mixer with pop up waste Regent base
Indicies & lever finish
Chelsea Regent curved bidet mixer with pop up waste White Chelsea Medici Regent curved bidet mixer with pop up waste Medici
Alternate Text
As Shown

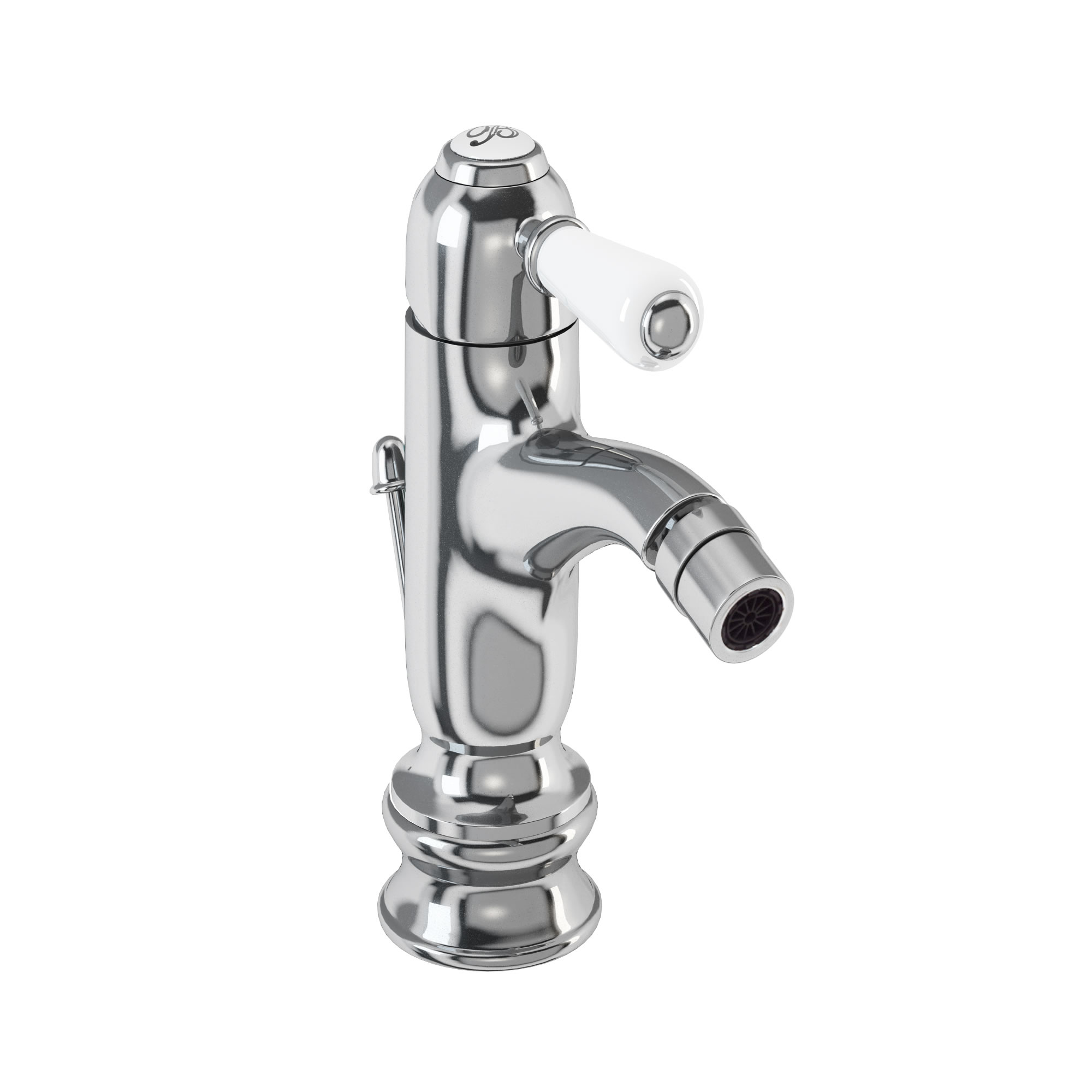

CH23 Chelsea curved bidet mono tap with pop up waste
T4B Regent small single tap base
CHR23  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
CH23  -  UK Compliant
T4B  -  WRAS Not Applicable
BS EN 200:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 5.24  9.78  11.08  15.02  18.86  n/a  n/a
Spout (aerator) 3.31  4.81  6.32  8.62  11.08  n/a  n/a
SP450 aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP47 b logo ceramic indice (D=21.4mm) for V12, CH19, R6 CHR, R7 CHR
SP1318 cartridge cover(part #19) for CH19, CH20, CH21, CH22, CH23
SP579 cartridge of product CH19, CH20, CH21, CH22, CH23
SP1309 cartridge retaining nut for CH19, CH20, CH21, CH22, CH23
SP1054 chelsea tap lever of CH19, CH20, CH21, CH22, CH23
SP449 flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP825 lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP655 pair of flexible hose for T27-QT, T27-QT GOLD, T27-QT NKL, CH22, T13, CH19, CH21, T12, CH23, CH20, T13-QT, T12-QT, STA11-QT, STA11
SP138 plastic insert for T4B Regent small tap base
SP974 plug of pop up waste for product T14, T14-QT, T14 BLA, T14-QT BLA, T14 MED, T14-QT MED, T26, T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807 pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP942 tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP1125 the nozzle for T15, T15-QT, CH23
