Compact 450 basin

asaq2.Model.Web_product_new?.web_name

Product Options

Pedestal options

Compact 450 basin and round fronted pedestal

with round fronted pedestal

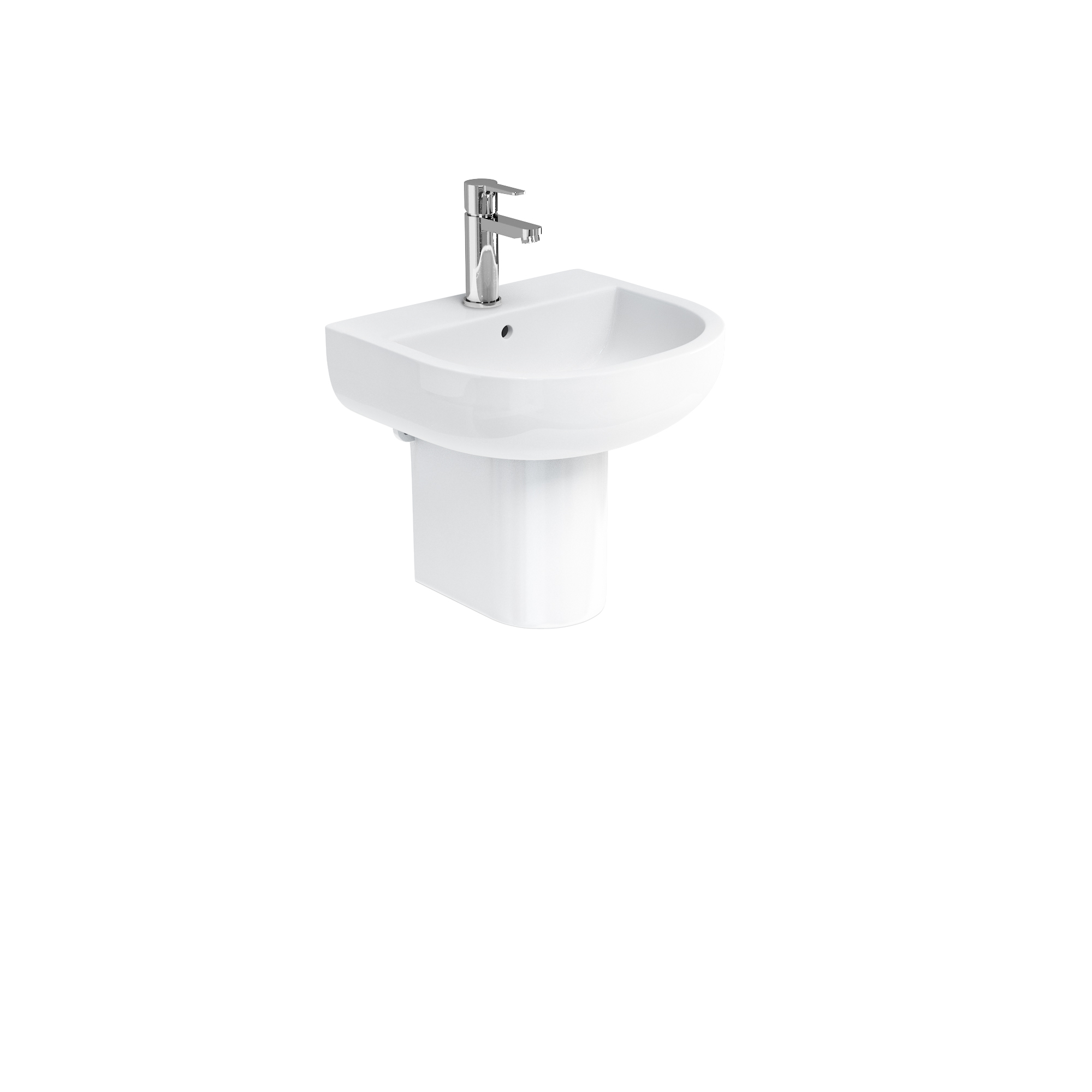

Compact 450 basin and round fronted semi pedestal

with round fronted semi pedestal

Alternate Text

As Shown

FP.1032 Round full pedestal

CM.0001 450mm Compact washbasin

Colour

FP.1032 - pedestal - Gloss White

CM.0001 - basin - Gloss White

Material

FP.1032 - pedestal - Vitreous China

CM.0001 - basin - Vitreous China

Size

FP.1032 - 163 x 190 x 690mm

CM.0001 - 400 x 450 x 180mm

Nett Weight

FP.1032 - pedestal - 13.4kg

CM.0001 - basin - 11.78kg

Gross Weight Including Packaging

FP.1032 - pedestal - 14.4kg

CM.0001 - basin - 13.65kg

Packed Dimension

FP.1032 - 735 x 230 x 222 = 0.0375 m3

CM.0001 - 480 x 430 x 200 = 0.0413 m3

Tap Hole Options

1

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 31:2011

BS EN 14688:2015

Compatible Products

W11 - Click-Clack Basin Waste (slotted)

W18 - Flip Top Basin Waste (slotted)

Downloads

2D CAD-File - DWG - FP.1032 CM.0001 (FP.1032 CM.0001_LD.dwg)

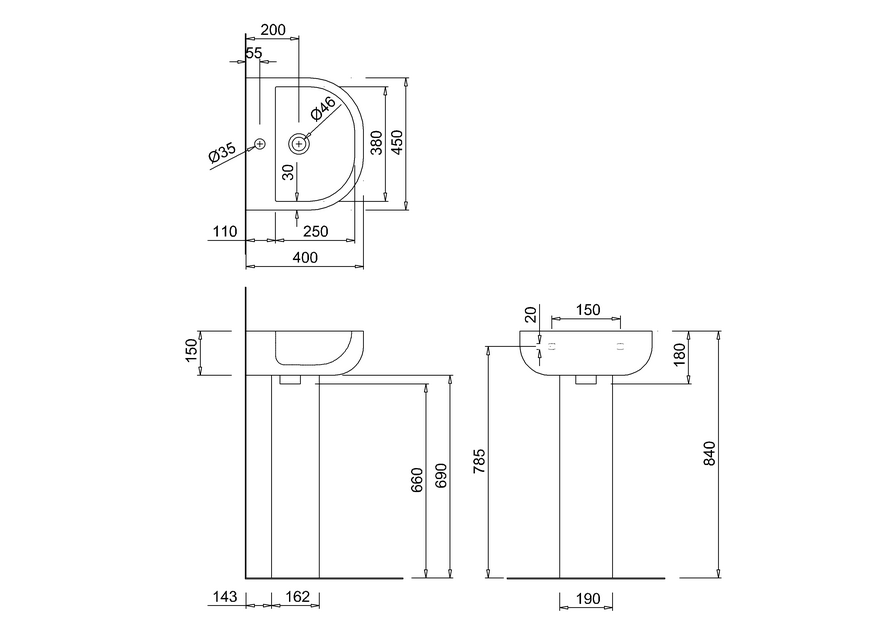

2D Drawing - PDF - FP.1032 CM.0001 (FP.1032 CM.0001_LD.pdf) 2D Drawing - PDF - FP.1032 CM.0001

3D DWG - File - DWG - FP.1032 CM.0001 (7829.dwg)
3D DXF - File - DXF - FP.1032 CM.0001 (7829.dxf)
3D IGS - File - IGS - FP.1032 CM.0001 (7829.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
