Compact 650 basin

asaq2.Model.Web_product_new?.web_name

Product Options

Pedestal options

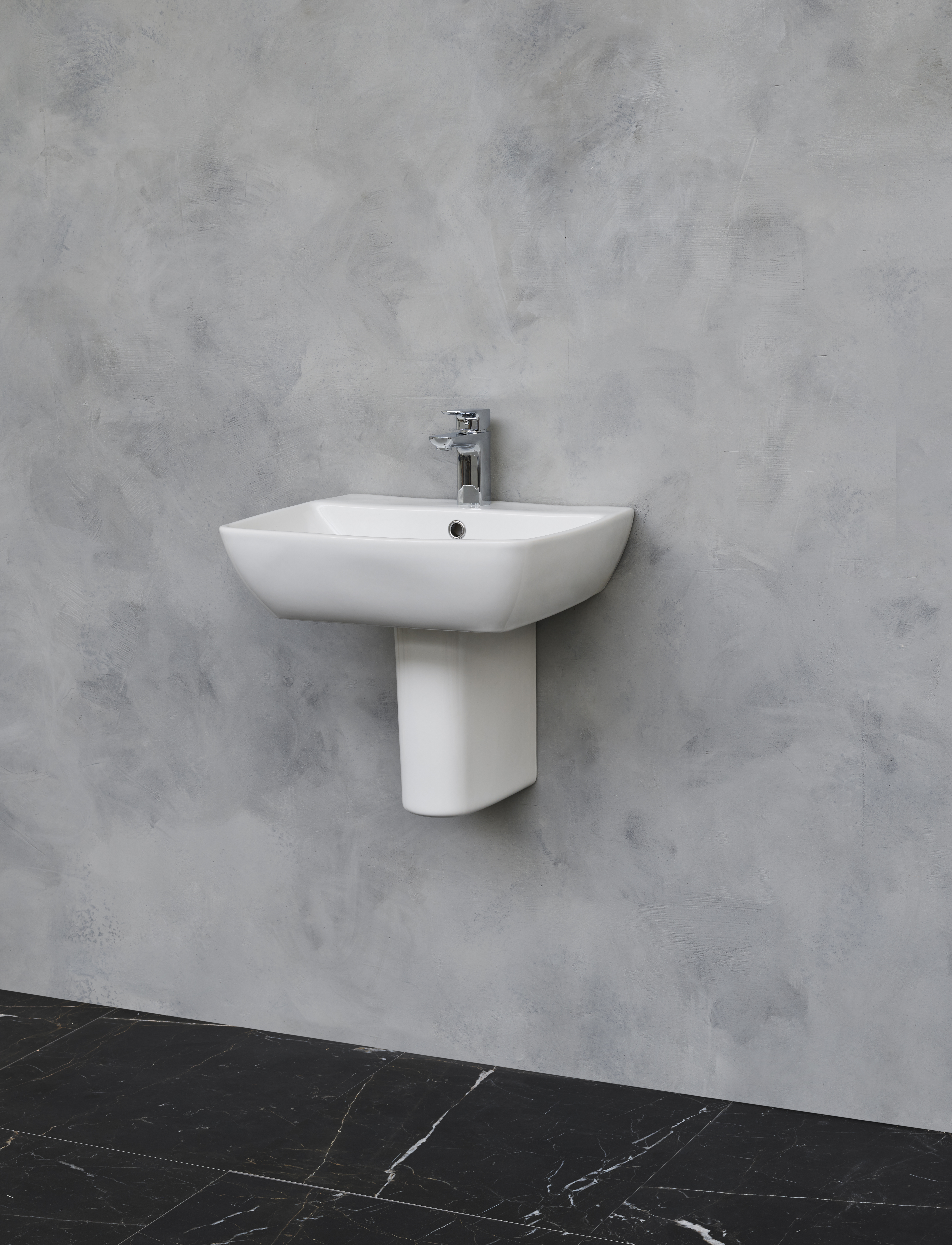

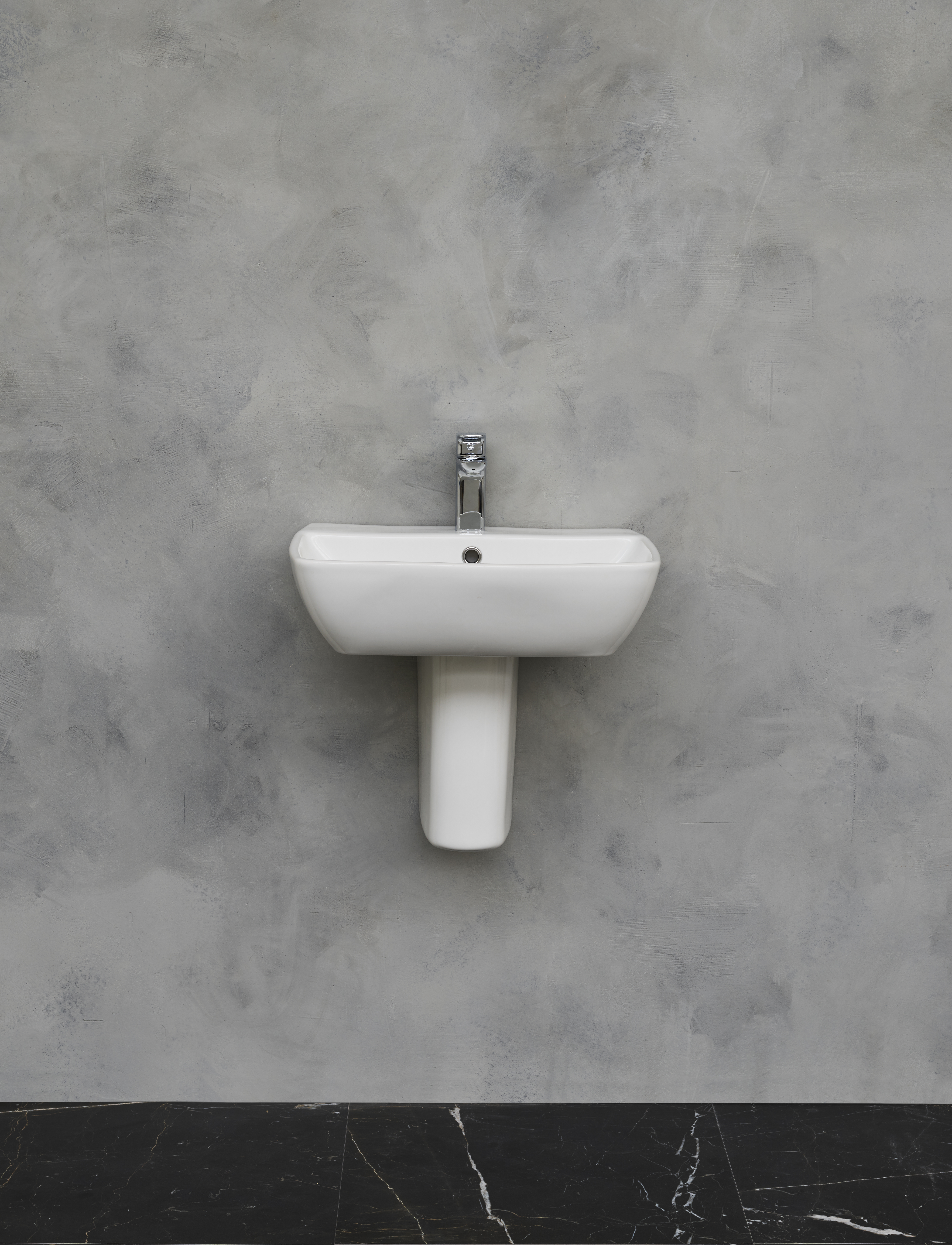

Compact 650 basin and round fronted pedestal

with round fronted pedestal

Compact 650 basin and round fronted semi pedestal

with round fronted semi pedestal

Alternate Text

As Shown

CM.0003 650mm Compact washbasin

SP.1033 Round semi pedestal

Colour

CM.0003 - basin - Gloss White

SP.1033 - pedestal - white

Material

CM.0003 - basin - Vitreous China

SP.1033 - pedestal - vitreous china

Size

CM.0003 - 400 x 650 x 180mm

SP.1033 - 265 x 175 x 250mm

Nett Weight

CM.0003 - basin - 17.9kg

SP.1033 - pedestal - 5.6kg

Gross Weight Including Packaging

CM.0003 - basin - 20.09kg

SP.1033 - pedestal - 6.44kg

Packed Dimension

CM.0003 - 670 x 430 x 200 = 0.0576 m3

SP.1033 - 276 x 191 x 271 = 0.0143 m3

Guarantee

Lifetime guarantee*
*Full terms & conditions here

Standards Information

BS EN 31:2011

BS EN 14688:2015

Compatible Products

W11 - Click-Clack Basin Waste (slotted)

W18 - Flip Top Basin Waste (slotted)

SP96	fixing for Semi Pedestal

Downloads

2D CAD-File - DWG - SP.1033 CM.0003 (SP.1033 CM.0003_LD.dwg)
2D Drawing - PDF - SP.1033 CM.0003 (SP.1033 CM.0003_LD.pdf) 2D Drawing - PDF - SP.1033 CM.0003

3D DWG - File - DWG - SP.1033 CM.0003 (7840.dwg)
3D DXF - File - DXF - SP.1033 CM.0003 (7840.dxf)
3D IGS - File - IGS - SP.1033 CM.0003 (7840.igs)

Lifestyle image 1 -

jpg
Lifestyle image 2 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
