Stafford Mono Basin Mixer with pop-up waste
Product Options
Quarter turn options
quarter turn
|
tradional screw-down
|
As Shown
| STA11 Stafford mono basin mixer with pop up waste |
| STA11 - Combined product code |
Material
| STA11 - tap - Brass |
Nett Weight
| STA11 - tap - 1.67kg |
Gross Weight Including Packaging
| STA11 - tap - 1.93kg |
Packed Dimension
| STA11 - 330 x 220 x 100 = 0.0073 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (straightener) | 13.83 | 15.8 | 21.1 | 26.3 | 33.6 | n/a | n/a |
| SP1487 | aerator(including chrome part) for STA11, STA11-QT |
| SP1488 | flow straightener(including chrome part) for STA11, STA11-QT |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
Downloads
-
2D CAD-File - DWG -
STA11
(STA11_LD.dwg)
-

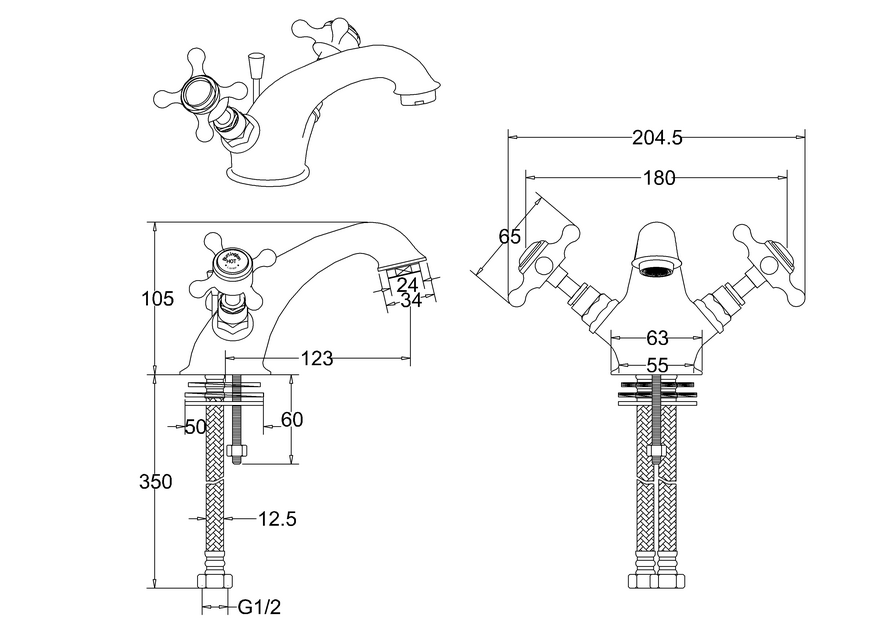

2D Drawing - PDF -
STA11
(STA11_LD.pdf)
2D Drawing - PDF - STA11
-
3D DWG - File - DWG
-
STA11
(ST11 2013 05 03.dwg)
-
3D DXF - File - DXF
-
STA11
(ST11 2013 05 03.dxf)
-
3D IGS - File - IGS
-
STA11
(ST11 2013 05 03.igs)
-
3D RFA BIMM Objects - File - RFA
-
STA11
(STA11.rfa)
