Stafford Long Nose Basin Pillar taps
Product Options
Quarter turn options
quarter turn
|
tradional screw-down
|
As Shown
| STA12 Stafford long nose basin pillar taps |
| STA12 - Combined product code |
Material
| STA12 - tap - Brass |
Nett Weight
| STA12 - tap - 1.058kg |
Gross Weight Including Packaging
| STA12 - tap - 1.15kg |
Packed Dimension
| STA12 - 180 x 135 x 82 = 0.002 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
No flow strengthener or aerator are included. |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout | 8.42 | 10.5 | 15 | 19.1 | 22.8 | n/a | n/a |
| SP45 | T1, T2, T3 'Hot' and 'Cold' ceramic indice |
Downloads
-
2D CAD-File - DWG -
STA12
(STA12_LD.dwg)
-

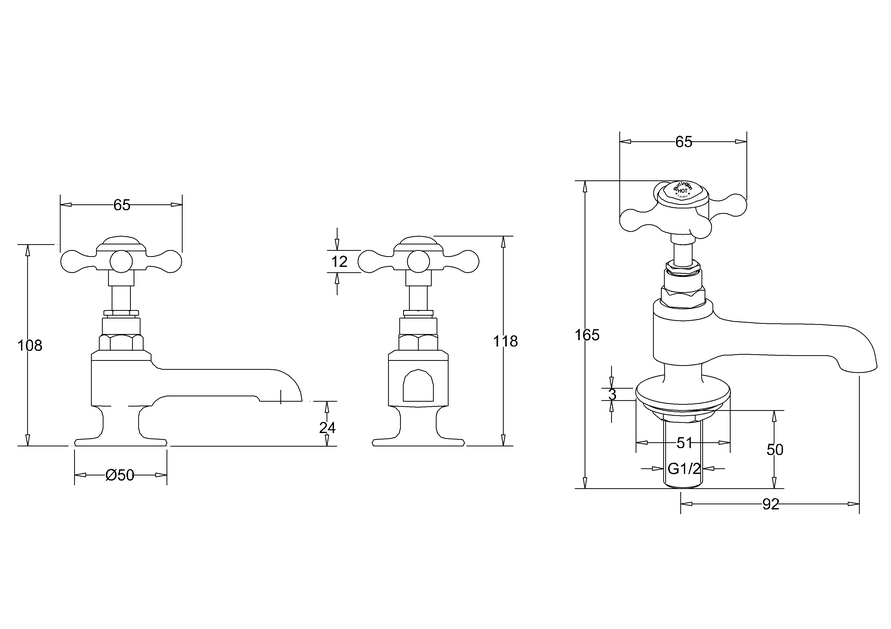

2D Drawing - PDF -
STA12
(STA12_LD.pdf)
2D Drawing - PDF - STA12
-
3D DWG - File - DWG
-
STA12
(ST12 2013 05 03.dwg)
-
3D DXF - File - DXF
-
STA12
(ST12 2013 05 03.dxf)
-
3D IGS - File - IGS
-
STA12
(ST12 2013 05 03.igs)
-
3D RFA BIMM Objects - File - RFA
-
STA12
(STA12.rfa)
