Stafford Bath Shower Mixer deck mounted

asaq2.Model.Web_product_new?.web_name

Product Options

Quarter turn options

Stafford quarter turn bath deck mounted shower mixer(including the handles)

quarter turn

tradional screw-down

Alternate Text

As Shown

STA14 Stafford bath deck mounted shower mixer

STA14 - Combined product code

Colour

STA14 - tap - Polished Chrome

Material

STA14 - tap - Brass

Size

STA14 - 203 x 228 x 272mm

Nett Weight

STA14 - tap - 3.65kg

Gross Weight Including Packaging

STA14 - tap - 4.12kg

Packed Dimension

STA14 - 330 x 235 x 165 = 0.0128 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 200:2008

BS EN 817:2008

Additional Information

Supplied with flow straighter for use with low water pressure

Also supplied with aerator for use with high water pressure

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Handset	4.4	7.2	8.4	10.6	13.2	n/a	n/a
Spout	28.92	35.5	43.1	49.2	55.6	n/a	n/a

Downloads

Instructions - PDF - STA14 (English)
Instructions - PDF - STA14 (French)

2D CAD-File - DWG - STA14 (STA14_LD.dwg)

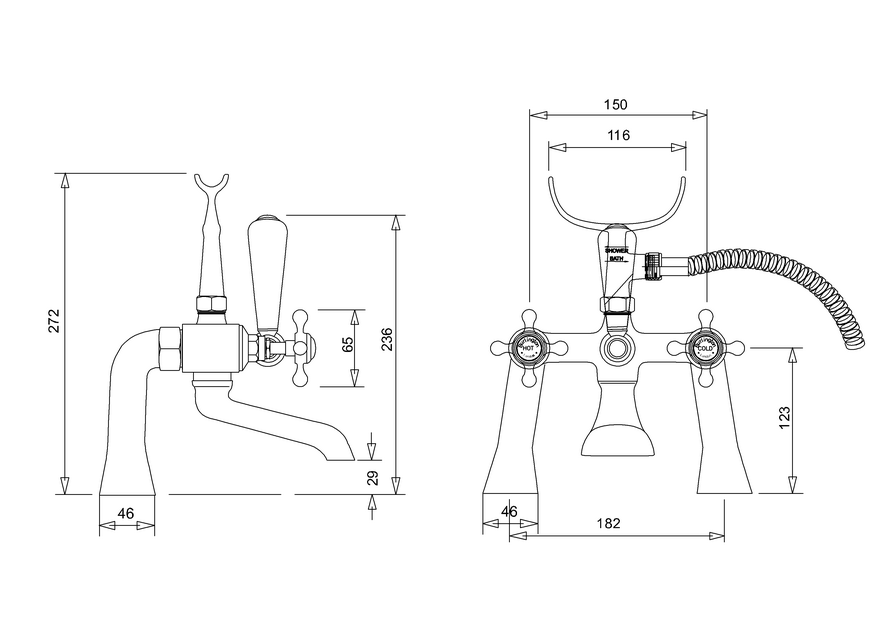

2D Drawing - PDF - STA14 (STA14_LD.pdf) 2D Drawing - PDF - STA14

3D DWG - File - DWG - STA14 (STA14 updated.dwg)
3D DXF - File - DXF - STA14 (STA14 updated.dxf)
3D IGS - File - IGS - STA14 (STA14 updated.igs)
3D RFA BIMM Objects - File - RFA - STA14 (STA14.rfa)

Product image 1 - jpg
Product image 2 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
