Regal Low / High Level Pan
asaq2.Model.Web_product_new?.web_name
Product Options
flush pipe options

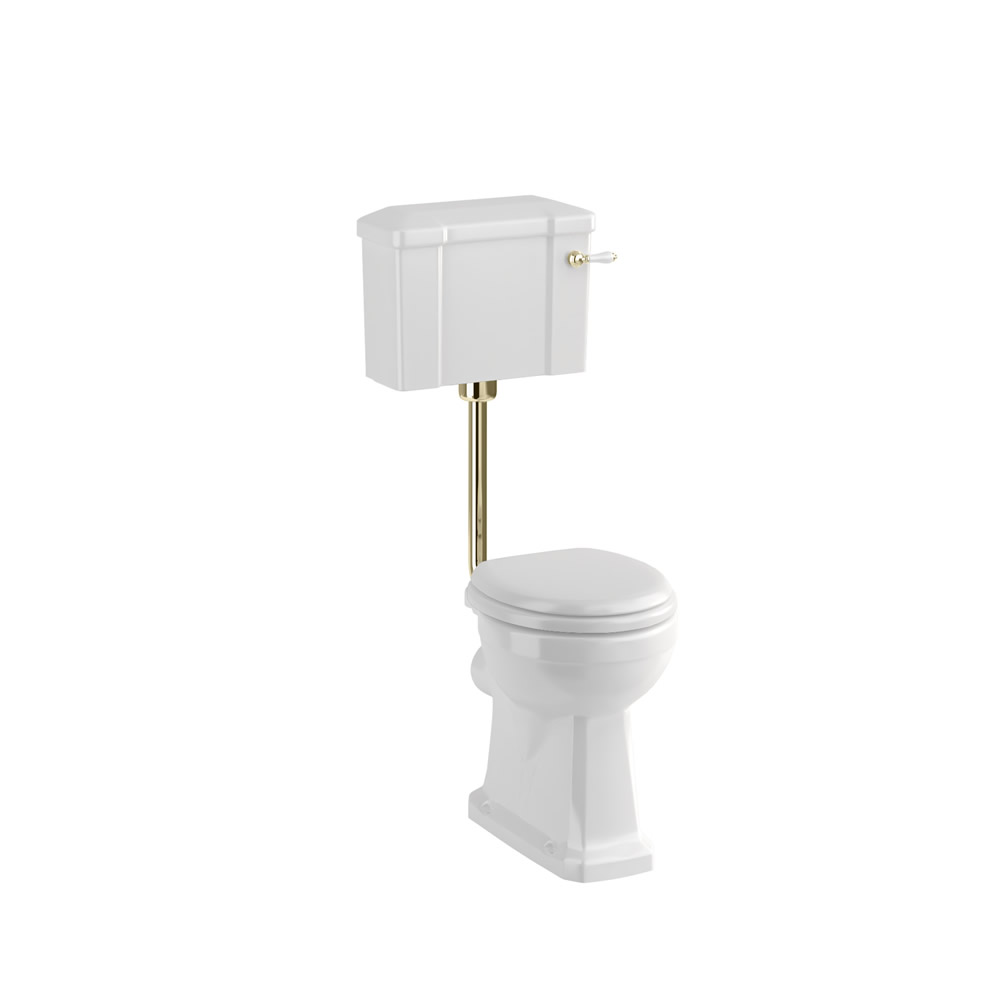

Regal low level WC with 520 lever cistern Chrome Regal low level WC with 520 lever cistern - NICKEL Nickel Regal low level WC with 520 lever cistern - GOLD Gold
Alternate Text
As Shown
P16 Regal low/high level pan
C1 510mm close coupled/low level ceramic lever cistern
T31CHR Low Level Flush Pipe kit including Flush pipes and reverse screw cistern connector
S18 Gloss white soft close hinge seat
Colour
P16 - pan - Gloss White
C1 - cistern - Gloss White
T31CHR - fittings - Polished Chrome
S18 - seat - Gloss White
Material
P16 - pan - Vitreous China
C1 - cistern - Vitreous China
T31CHR - fittings - Brass
S18 - seat - Urea
Size
P16 - 525 x 358 x 483mm
C1 - 205 x 515 x 330mm
T31CHR - 221 x 38 x 420mm
S18 - 370 x 439 x 56mm
Nett Weight
P16 - pan - 18.4kg
C1 - cistern - 16.15kg
T31CHR - fittings - 1.27kg
S18 - seat - 2.53kg
Gross Weight Including Packaging
P16 - pan - 21.2kg
C1 - cistern - 18.45kg
T31CHR - fittings - 1.59kg
S18 - seat - 2.76kg
Packed Dimension
P16 - 545 x 382 x 510 = 0.1062 m3
C1 - 537 x 227 x 360 = 0.0439 m3
T31CHR - 440 x 230 x 65 = 0.0066 m3
S18 - 462 x 376 x 72 = 0.0125 m3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 248:2002
BS EN 33:2019
BS EN 14055:2018
BS EN 997:2018
Additional Information
Supplied with floor fixings
SP11 51cm Cistern Lid for C1 & C2
SP511 back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP965 brass decorative cover of cistern connection for product T31 CHR
SP1353 brass fixing nut for all finishes products of T30, T31, T33, T34
SP8 ceramic Cistern lever for Close Coupled, Low Level Cistern
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP84 cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP390GOLD cistern Lever for C1, C3 - GOLD
SP890 flush pipe of product T31 CHR
SP504_2 inlet valve for Burlington close coupled cisterns
SP508 kit for close couple cistern
SP507 kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP160 l shape bracket(pair) for T31CHR
SP5A lever Flush Bottom Entry cistern fitting with ceramic lever
SP17 screw fixing pack for pan and bidet
SP802 the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP387 WC floor fixing plastic caps - GOLD
SP1744 white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
Downloads
  • Instructions - PDF - C1 (English)
  • Instructions - PDF - T31CHR (English)
  • Instructions - PDF - S18 (English)
  • Instructions - PDF - S18 (French)
  • Instructions - PDF - T31CHR (French)
  • Instructions - PDF - C1 (French)
  • 3D DWG - File - DWG  -  C1 T31 CHR P16 (7872.dwg)
  • 3D RFA BIMM Objects - File - RFA  -  C1 T31 CHR P16 (7872.rfa)
  • 3D STP - File - STP  -  C1 T31 CHR P16 (P16.stp)
  • 3D IGS - File - IGS  -  C1 T31 CHR P16 (t31.igs)
  • 3D IGS - File - IGS - S18 (S18.igs)
  • Lifestyle image 1 - tiff pending.
  • Lifestyle image 2 - tiff pending.
  • Product image 1 - jpg

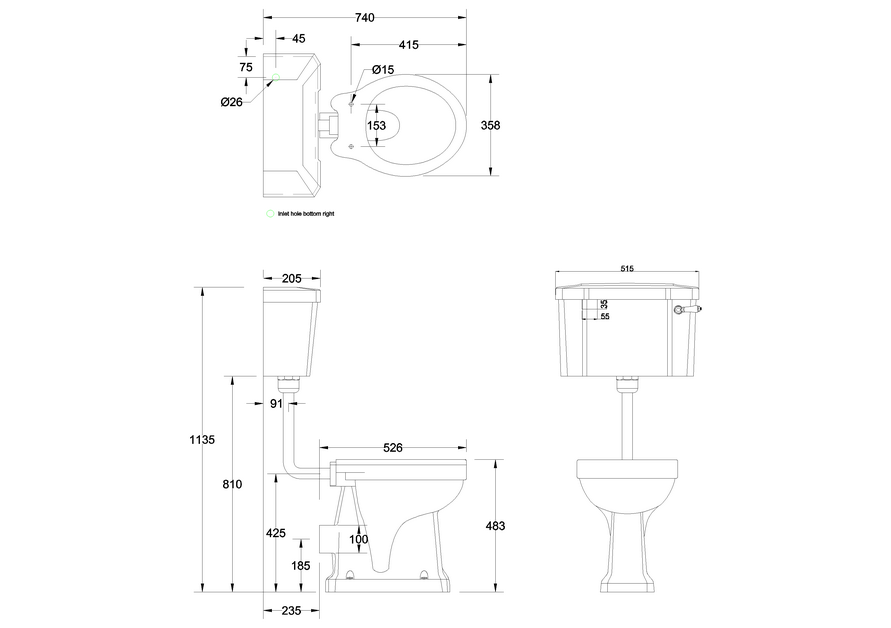

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
