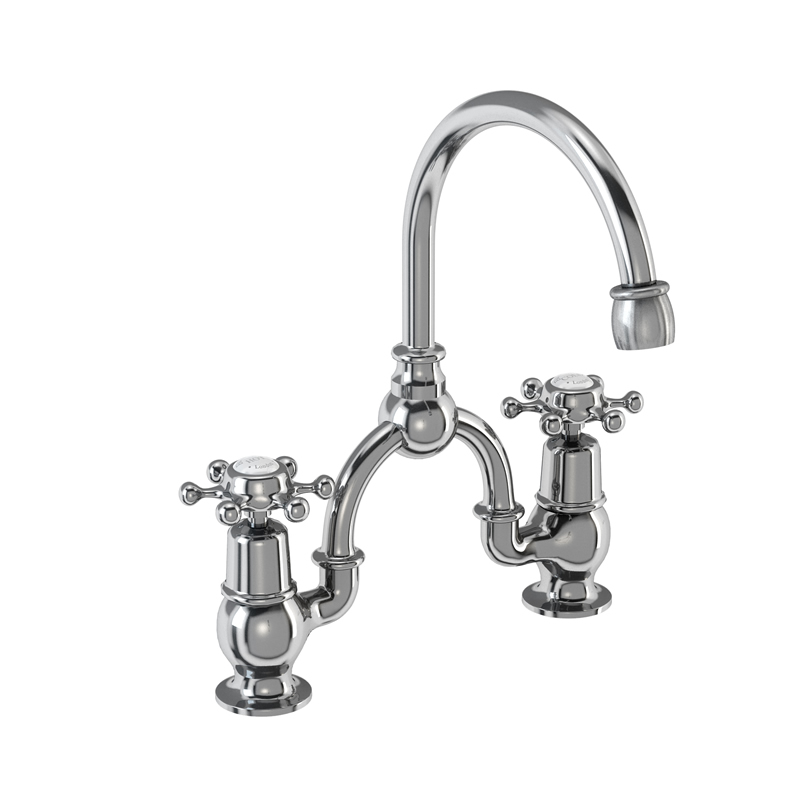

Burlington arch basin mixer with curved spout (200 mm tap centers)
2 tap hole arch mixer with curved spout (200mm centres)
Product Options
Tap Head Options (Chrome Finish Shown)
2 tap hole arch mixer with curved spout  (200mm centres) Claremont 2 tap hole arch mixer with curved spout (200mm centres) Anglesey Ceramic Tap Hand_T1_PAGE71_PAGE73.jpg Birkenhead 2 tap hole arch mixer with curved spout (200mm centres) Kensington
Quarter turn options
2 tap hole arch mixer with curved spout (200mm centres) quarter turn full_done.jpg tradional screw-down
Tap Base options
2 tap hole arch mixer with curved spout (200mm centres) Standard base 2 tap hole arch mixer with curved spout (200mm centres) Regent base
Indicies & lever finish
2 tap hole arch mixer with curved spout (200mm centres) White Birkenhead Medici 2 tap hole arch mixer with curved spout (200mm centres) Medici 2 tap hole arch mixer with curved spout (200mm centres) Black
Alternate Text
As Shown
T24 Arch mixer with curved spout 2TH
T3 Birkenhead tap handles
BI27  -  Combined product code
Gross Weight Including Packaging
T24 - tap - 2.21kg
T3 - tap handles - 0.21kg
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
T24  -  UK Compliant
T3  -  WRAS Not Applicable
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
Supplied without a basin waste
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.5  16.5  23.32  33  41.9  n/a  n/a
Spout (aerator) 4.5  7.5  10.2  15  18.32  n/a  n/a
SP162 aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44, T2WS, T2DS, T2WB, T2DB
SP523 bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP92 G3, 4 fixing nut and washer for products T7, T18
SP1006 o rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27 T9, T24, T25 3, 4 full turn cartridge
SP1093 thread tube O ring seal for T16, T16-QT, T14, T14-QT, T14 BLA, T14-QT BLA, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
