600mm basin
Product Options
mounting options
overflow finish options
tap hole options
pedestal
|
basin stand
|
ceramic console legs
|
|
nickel overflow
|
chrome overflow
|
no tap holes
|
1 tap hole
|
2 tap holes
|
3 tap holes
|

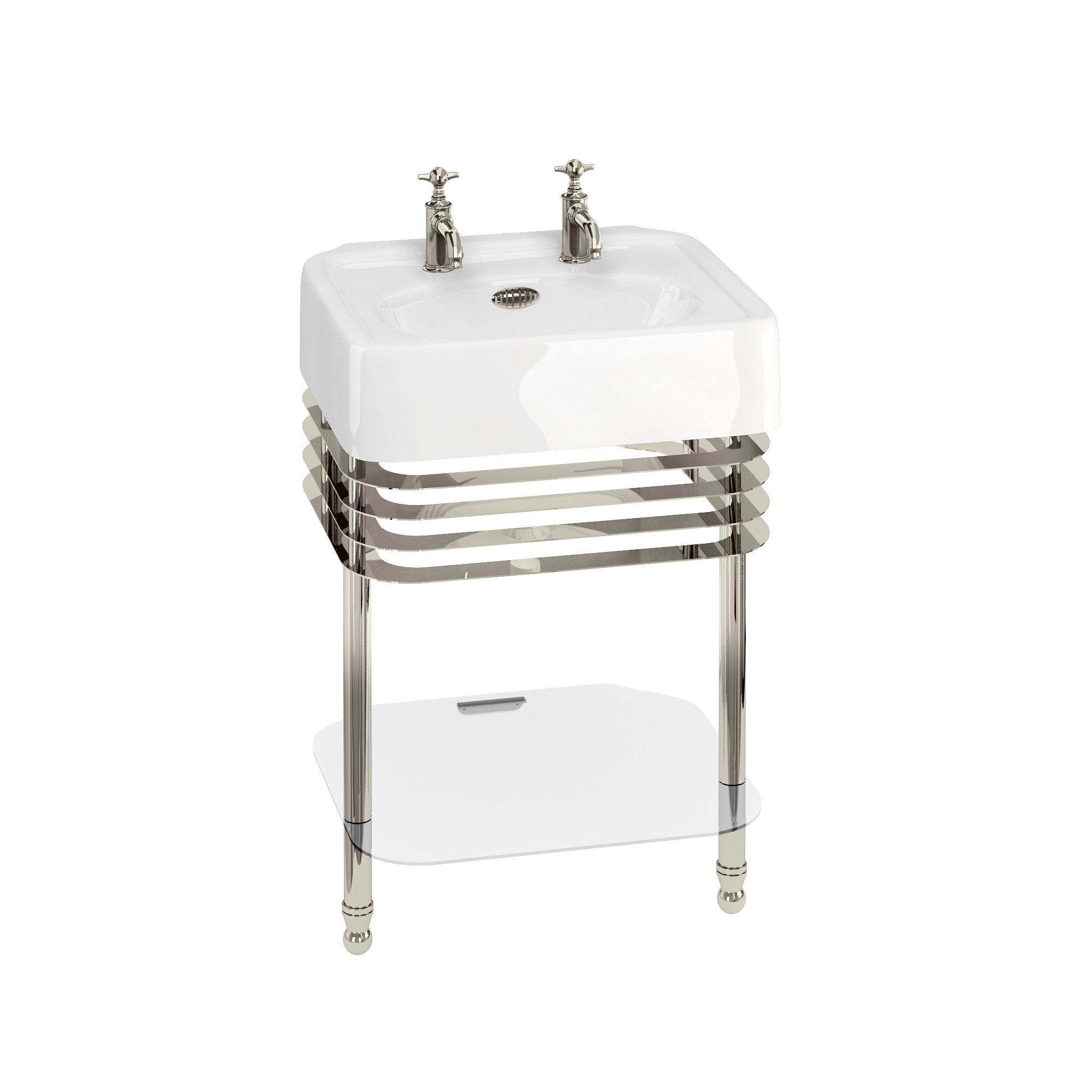

As Shown
| ARC600 2TH − |
| ARC22 − |
Tap Hole Options
| 0,1,2 or 3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code. |
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
A chrome overflow ring availabel as optional item(A68 CHR). |
Compatible Products
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| W4 NKL - Traditional bottle trap with extended wall tube |
| ARCW18 CHR - Arcade flip top basin waste (for basins with overflow ) |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
| SP968 | small adjustable supports for the basin stands |
Downloads
-
2D CAD-File - DWG -
ARC600 2TH ARC22
(ARC22-ARC600 2TH_20201127.dwg)
-

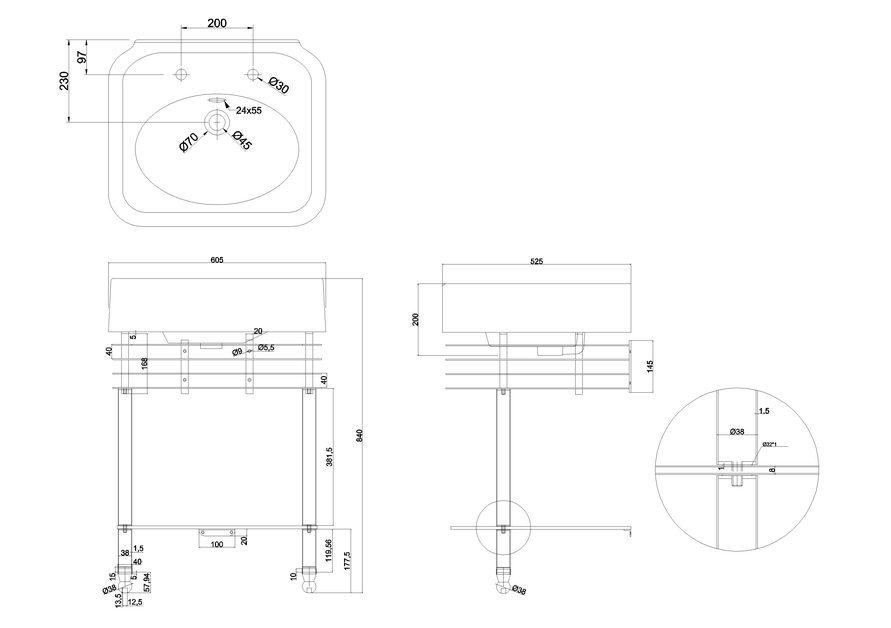

2D Drawing - PDF -
ARC600 2TH ARC22
(ARC22-ARC600 2TH_20201127.pdf)
2D Drawing - PDF - ARC600 2TH ARC22
-
3D DWG - File - DWG
-
ARC600 2TH ARC22
(80043.dwg)
-
3D DXF - File - DXF
-
ARC600 2TH ARC22
(80043.dxf)
-
3D IGS - File - IGS
-
ARC600 2TH ARC22
(80043.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARC600 2TH ARC22
(80043.rfa)
