1200mm basin
Product Options
mounting options
overflow finish options
tap hole options
|
basin stand
|

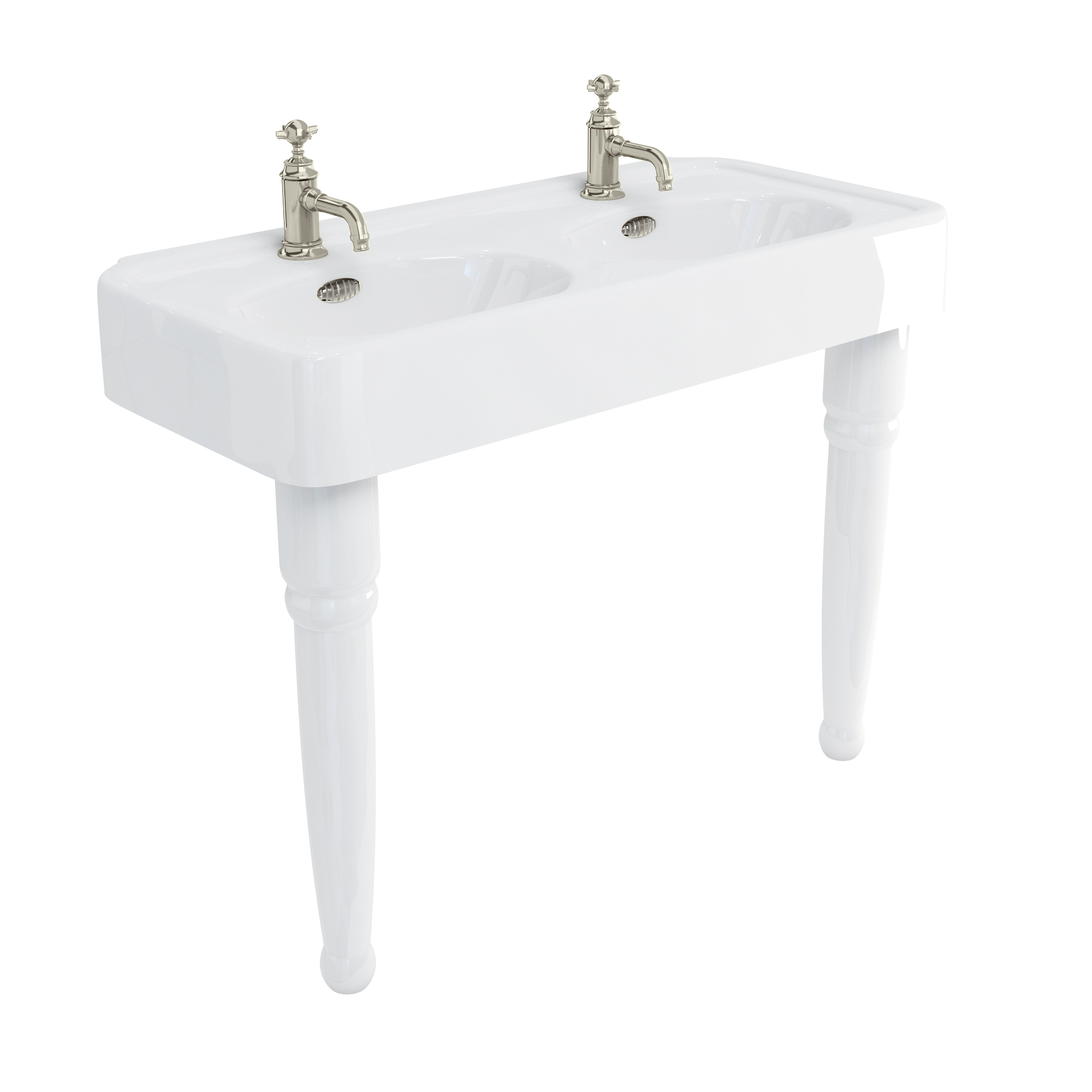

ceramic console legs
|
|
nickel overflow
|
chrome overflow
|
no tap holes
|
1 tap hole
|
2 tap holes
|
3 tap holes
|

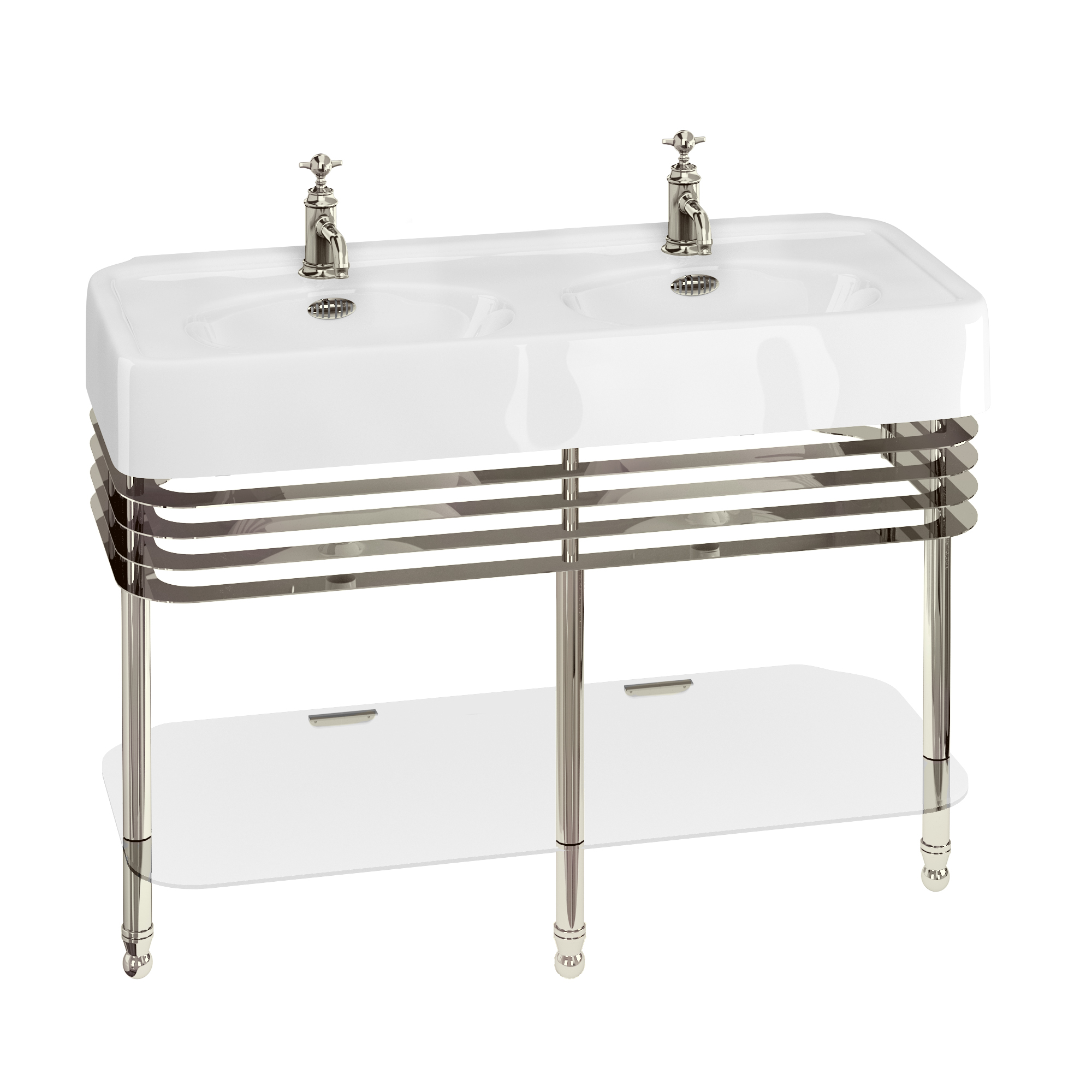

As Shown
| ARC1200 1TH 1200mm Arcade double basin 1TH |
| ARC24 1200mm Arcade floor stand for double basin |
Gross Weight Including Packaging
| ARC1200 1TH - basin - 45.5kg |
| ARC24 - floor stand - 34kg |
Tap Hole Options
| Available with no(NT), one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
|
Nickel plated to BS EN248:2009 Sanitary tapware. General specification for electro deposited coatings of Ni |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W14 - Traditional basin bottle trap |
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| W4 NKL - Traditional bottle trap with extended wall tube |
| W18 - Flip-top basin waste slotted |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
| SP968 | small adjustable supports for the basin stands |
Downloads
-
2D CAD-File - DWG -
ARC1200 1TH ARC24
(ARC24-ARC1200 1TH_20201127.dwg)
-

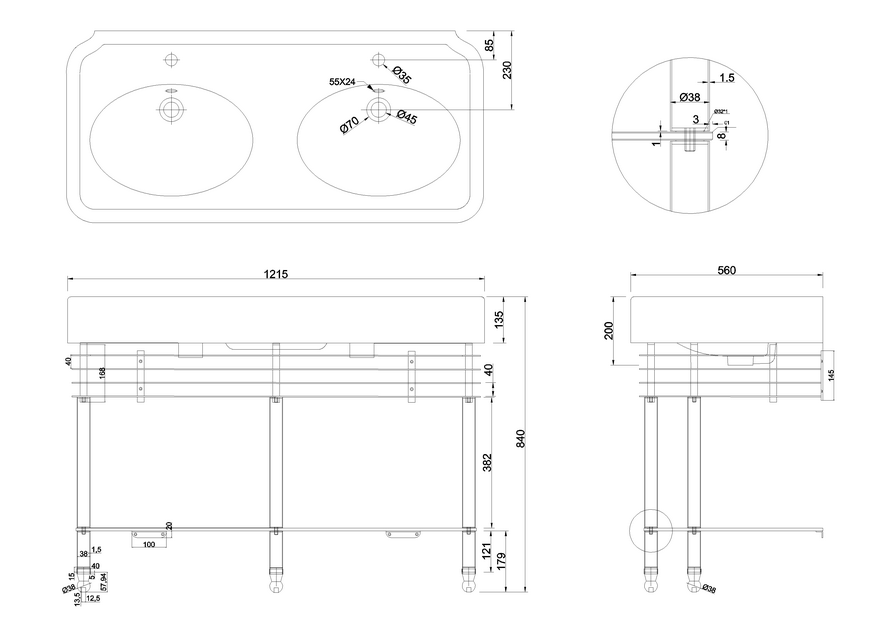

2D Drawing - PDF -
ARC1200 1TH ARC24
(ARC24-ARC1200 1TH_20201127.pdf)
2D Drawing - PDF - ARC1200 1TH ARC24
-
3D DWG - File - DWG
-
ARC1200 1TH ARC24
(80062.dwg)
-
3D DXF - File - DXF
-
ARC1200 1TH ARC24
(80062.dxf)
-
3D IGS - File - IGS
-
ARC1200 1TH ARC24
(80062.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARC1200 1TH ARC24
(80062.rfa)
