Arcade bath shower mixer deck-mounted with handle
Product Options
finish options
handle options
chrome
|
nickel
|
|
crosshead handle
|
brass lever
|
white ceramic lever
|
gloss black ceramic lever
|
As Shown

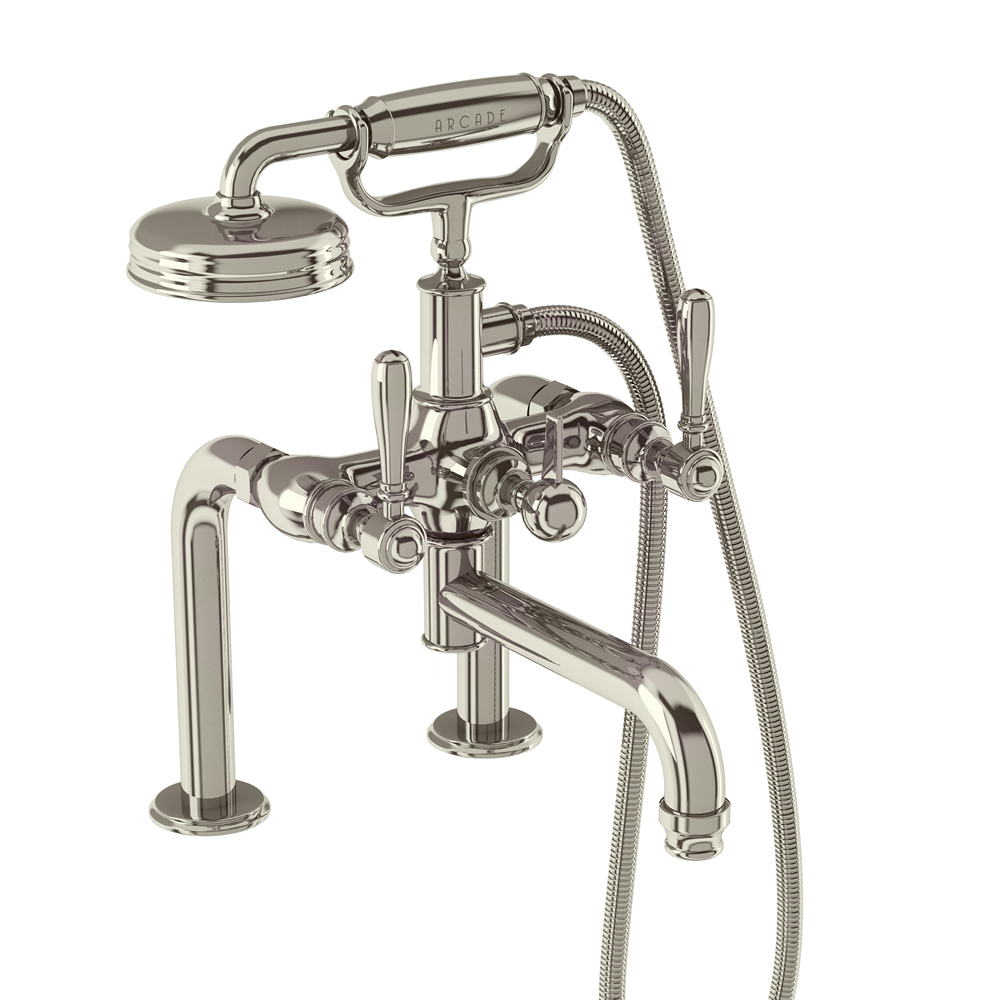

| ARC 2018 NKL Arcade bath shower mixer - deck mounted with brass handle handset - nickel |
| ARCHLN Crosshead handle (pair) for ARCADE 2012,2013,2018,2019- nickel, 64*64mm |
| ACL18N - Combined product code |
Nett Weight
| ARC 2018 NKL - tap - 4.56kg |
| ARCHLN - handle - 0.27kg |
Gross Weight Including Packaging
| ARC 2018 NKL - tap - 5.53kg |
| ARCHLN - handle - 0.33kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Recommended pressure 1 Bar Minimum. |
|
Also supplied with aerator for use with high water pressure |
|
Supplied with flow straighter for use with low water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 7.5 | 13.46 | 20.39 | 29.68 | 36.53 | 42.34 | 47.27 |
| Aerator | 4.13 | 6.75 | 10.21 | 14.67 | 18.33 | 21.13 | 23.77 |
| Handset | 2.11 | 4.05 | 6.68 | 9.85 | 12.74 | 15.19 | 17.21 |
| ARCSP169 | diverter cartridge of Arcade bath tap ARC18, ARC18 CHR, ARC19, ARC19 CHR, ARC2018 CHR, ARC2018 NKL, ARC2019 CHR, ARC 2019NKL |
| ARCSP173 NKL | nickel finish base plate of deck mounted legs for product ARC18, ARC2018 NKL(including the O ring) single piece |
| ARCSP175 NKL | nickel finish diverter handle for Arcade bath taps ARC 2018 NKL, ARC2019 NKL, ARC18, ARC19 |
| ARCSP142 NKL | nickel finish leg sets (pair) for ARC18, ARC2018 NKL |
| ARCSP108 NKL | nickel finsih Arcade 1750mm shower hose |
| SP1491 | screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR) |
| SP1033 | SP1033-gasket (piece) for ARC2018 CHR, ARC 2018 NKL, ARC 2019 CHR, ARC 2019 NKL, ARC18, ARC18 CHR, ARC19, ARC19 CHR |
Downloads
- Instructions - PDF - ARC 2018 NKL (English)
- Instructions - PDF - ARCHLN (English)
- Instructions - PDF - ARCHLN (French)
- Instructions - PDF - ARC 2018 NKL (French)
-
2D CAD-File - DWG -
ACL18N
(ARC 2018_ARCHL _NKL_CHR.dwg)
-
2D Drawing - PDF -
ACL18N
(ARC 2018_ARCHL _NKL_CHR.pdf)
2D Drawing - PDF - ARC18 NKL with handle
-
3D RFA BIMM Objects - File - RFA
-
ACL18N
(ACL18C.rfa)
- 3D IGS - File - IGS - ARC 2018 NKL (ARC 2018.igs)
- 3D IGS - File - IGS - ARCHLN (ARCHLC.igs)
-
