Four-panel bathscreen
As Shown
| BS5 − |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN14428:2015 |
|
BS EN 12150-1:2015 |
Additional Information
|
Can be fitted to either left or right hand baths |
|
Safety glass with 3M Easy Clean Coating |
|
Screen opens both inwards and outwards |
| SP878 | bottom hinge D of product BS4, BS5 |
| SP495 | bottom waterproof strip for BS4 and BS5 |
| SP858 | connecting part of hinges on product BS4, BS5 |
| SP859 | cover of hinges on product BS4, BS5 |
| SP728 | left cover for bottom waterproof barrier for BS4, BS5 (B112 ) |
| SP805 | right cover of bottom waterproof barrier for BS4, BS5 (B114 ) |
| SP467 | seal between the glass panels for BS4, BS5 |
| SP875 | top hinge A of product BS4, BS5 |
| SP876 | top hinge B of product BS4, BS5 |
| SP1134 | wall profile for BS4, BS5 |
| SP496 | water barrier for BS4 and BS5 |
Downloads
-
2D CAD-File - DWG -
BS5
(BS5_LD.dwg)
-

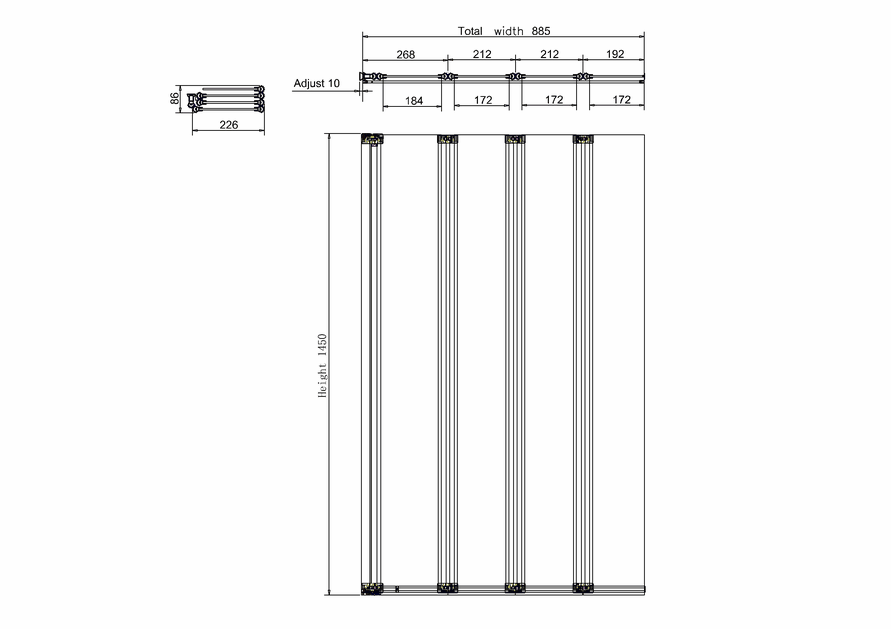

2D Drawing - PDF -
BS5
(BS5_LD.pdf)
2D Drawing - PDF - BS5
-
3D DWG - File - DWG
-
BS5
(BS5.dwg)
-
3D DXF - File - DXF
-
BS5
(BS5.dxf)
-
3D IGS - File - IGS
-
BS5
(BS5.igs)
-
3D RFA BIMM Objects - File - RFA
-
BS5
(BS5.rfa)
