9 inch air boosted rain shower rose without arm - easy clean nipples

asaq2.Model.Web_product_new?.web_name

Product Options

finish options

9" AirBurst shower head

chrome

9" AirBurst shower head gold

gold

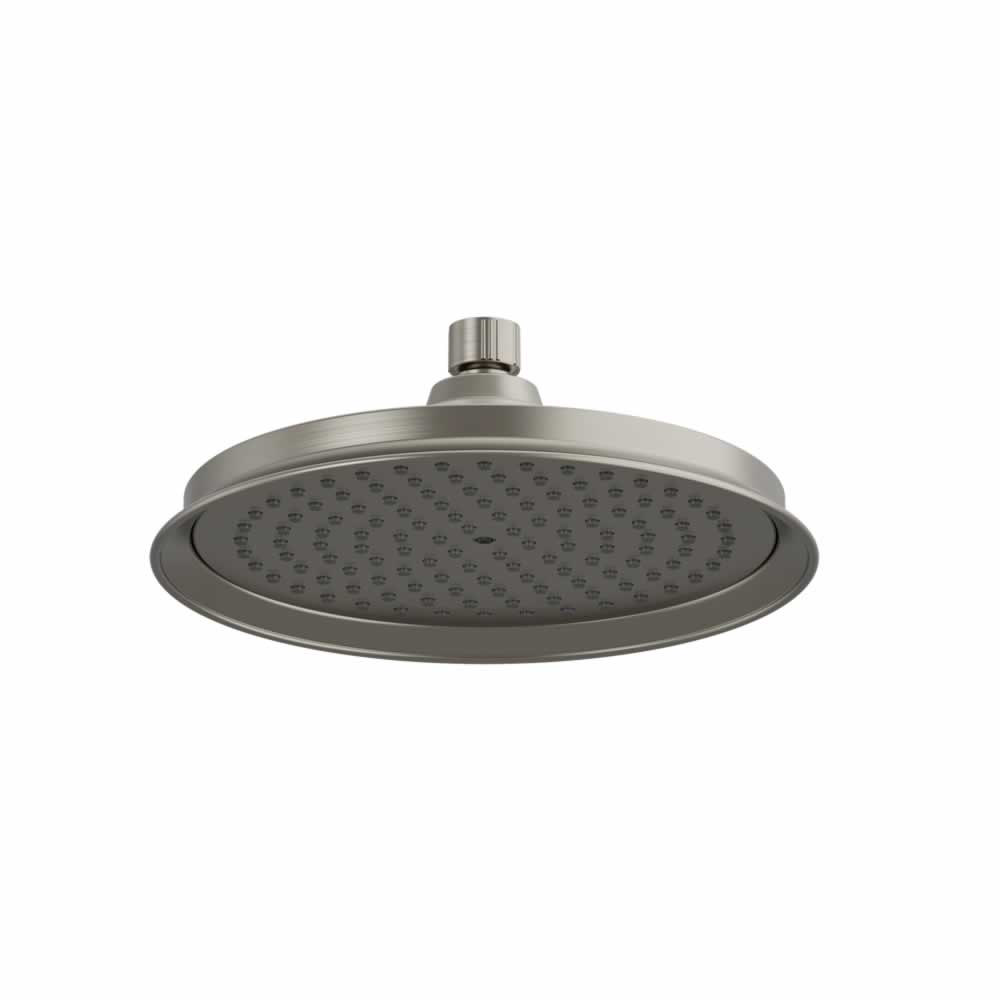

9'' ABS Air Round Rain Shower Brushed Nickel

brushed nickel

Alternate Text

As Shown

V17 9 inch shower rose

Colour

V17 - shower rose - Polished Chrome

Material

V17 - shower rose - ABS

Size

V17 - 236 x 236 x 88mm

Nett Weight

V17 - shower rose - 0.56kg

Gross Weight Including Packaging

V17 - shower rose - 0.87kg

Packed Dimension

V17 - 260 x 240 x 100 = 0.0062 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

Downloads

Instructions - PDF - V17 (English)

2D CAD-File - DWG - V17 (V17_LD.dwg)

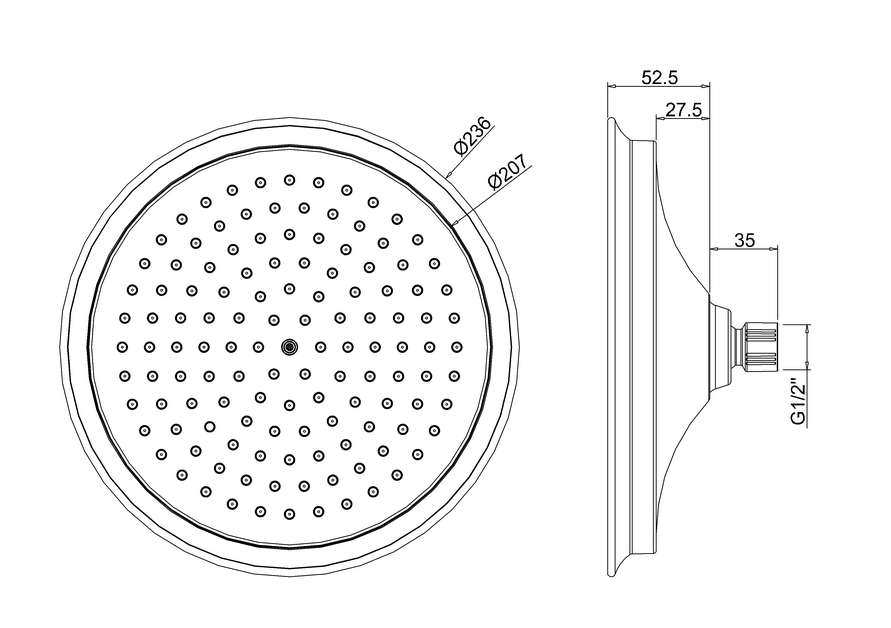

2D Drawing - PDF - V17 (V17_LD.pdf) 2D Drawing - PDF - V17

3D DWG - File - DWG - V17 (V17_9_showerhead.dwg)
3D DXF - File - DXF - V17 (V17_9_showerhead.dxf)
3D IGS - File - IGS - V17 (V17_9_showerhead.igs)
3D RFA BIMM Objects - File - RFA BIMM Objects - V17 (V17_9_showerhead.rfa)

Lifestyle image 1 - tiff pending.
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
