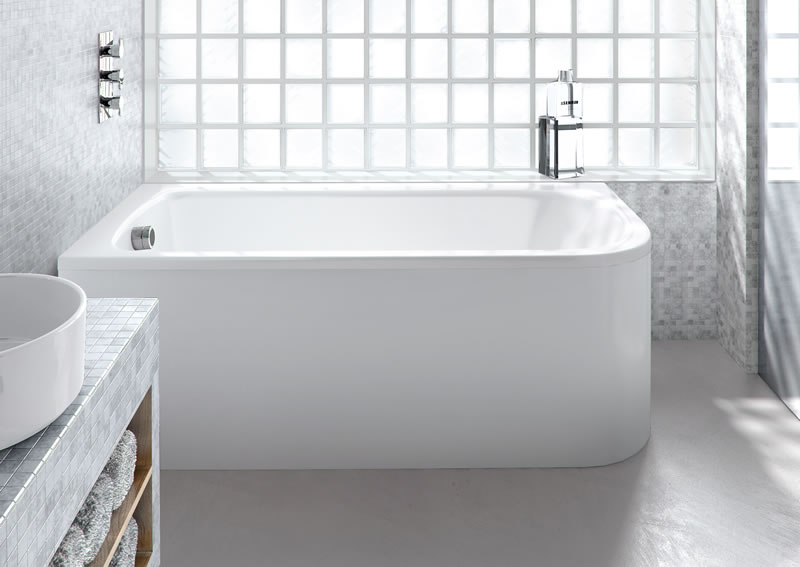

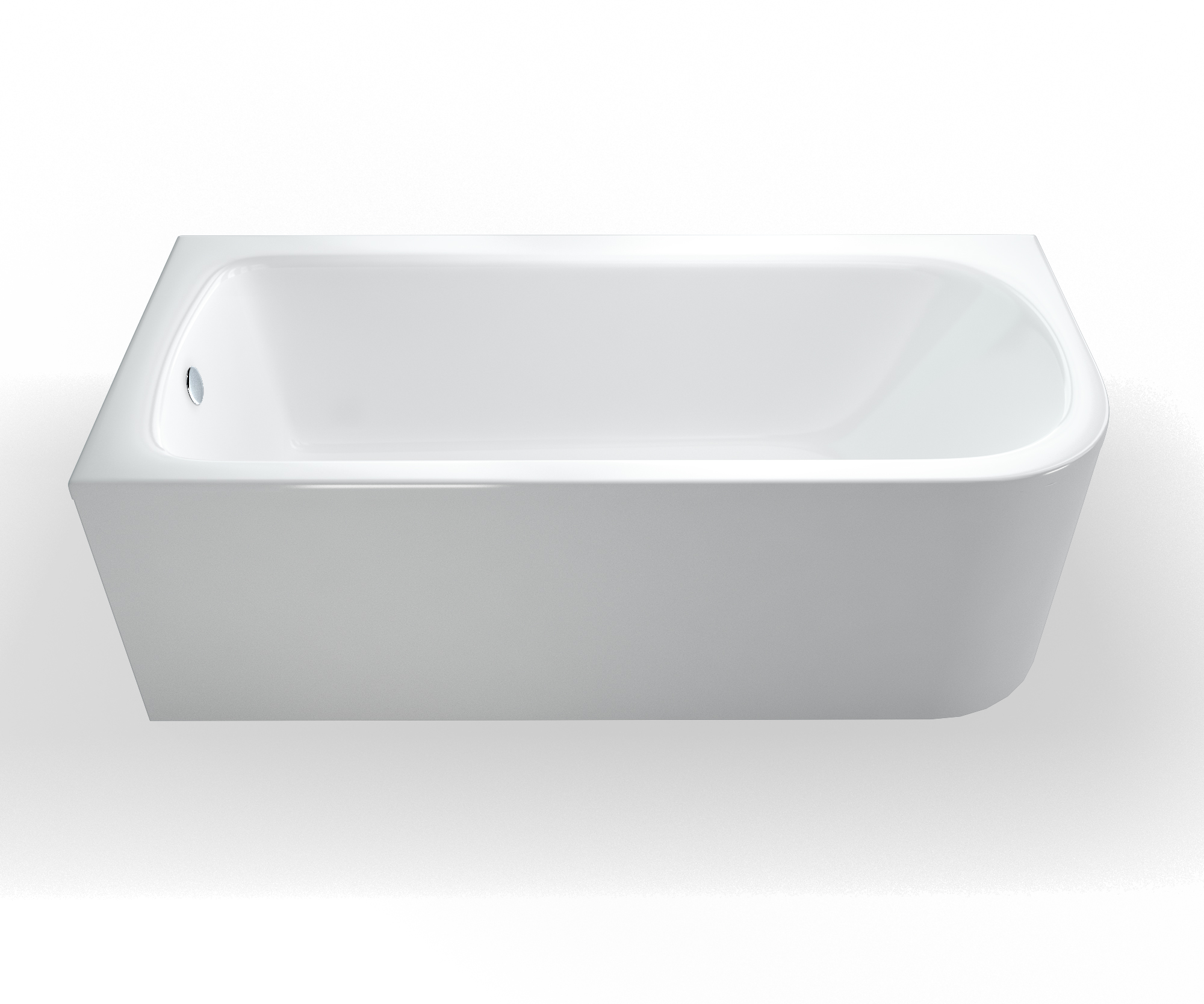

Viride offset Bath
Product Options
Bath size options
|
left hand
|
right hand
|
As Shown
| R53 − |
Bath water capacity
| 154 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| CW8 - Click-clack bath waste |
| R55 - Viride offset bath panel 1800 x 750mm |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
Downloads
-
2D CAD-File - DWG -
R53
(R53.dwg)
-

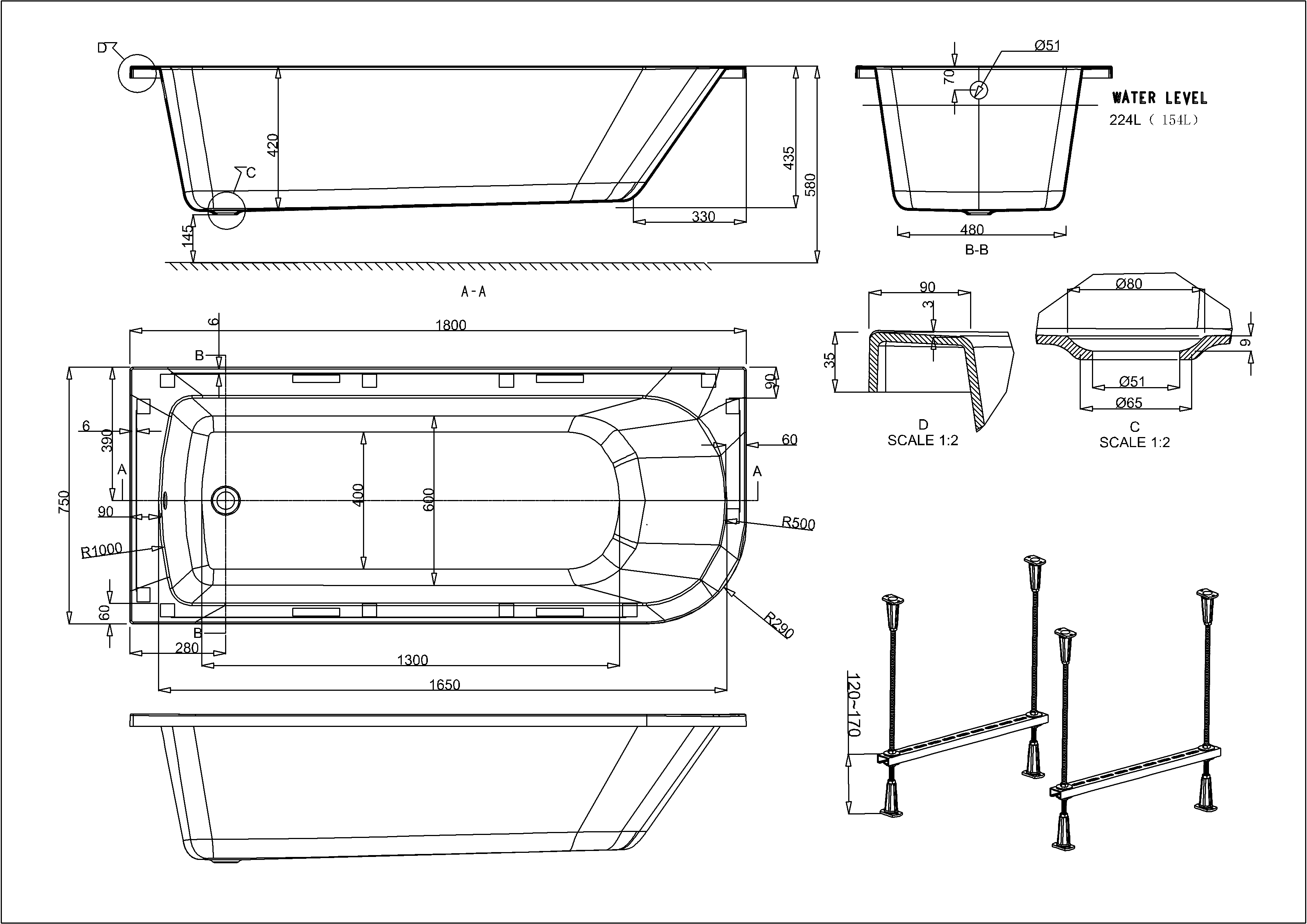

2D Drawing - PDF -
R53
(R53.pdf)
2D Drawing - PDF - R53
-
3D DWG - File - DWG
-
R53
(R53.dwg)
-
3D DXF - File - DXF
-
R53
(R53.dxf)
-
3D IGS - File - IGS
-
R53
(R53.igs)
-
3D RFA BIMM Objects - File - RFA
-
R53
(R53.rfa)
