Arcade bath shower mixer wall-mounted with handle
Product Options
finish options
handle options
|
chrome
|

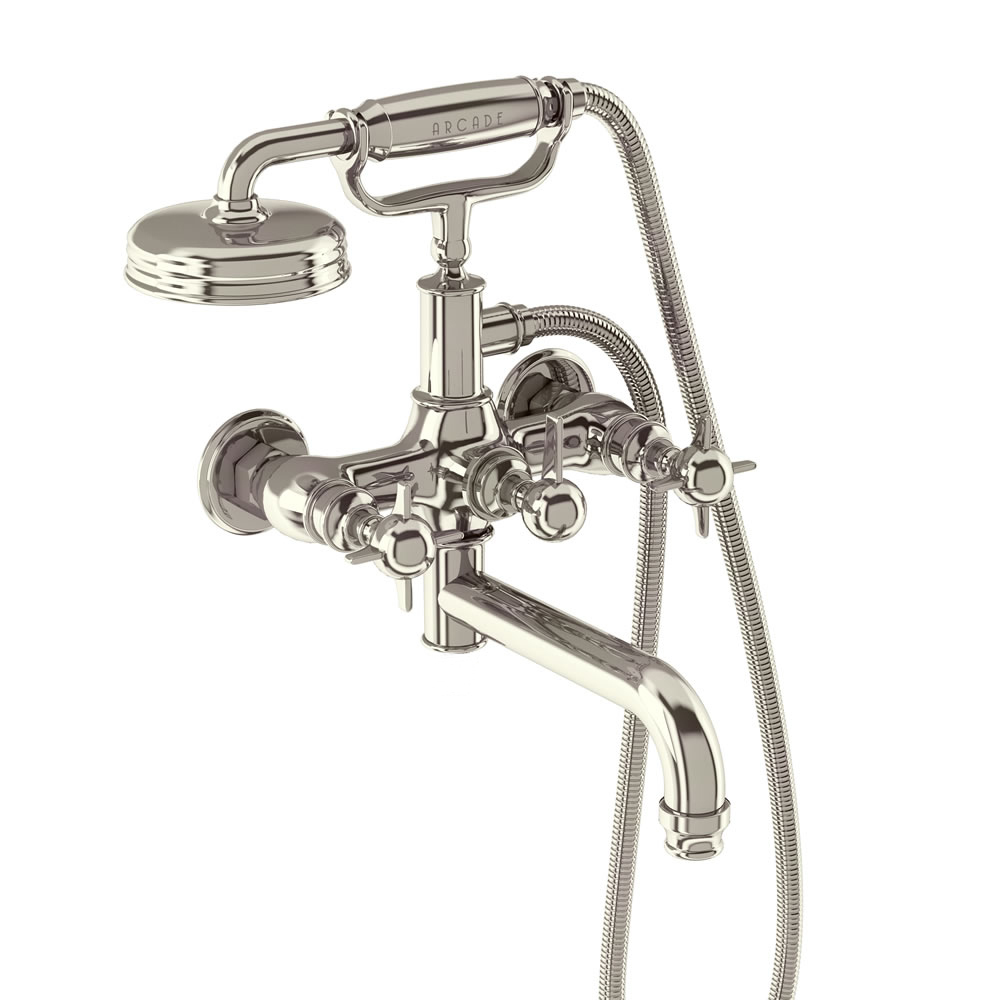

nickel
|
|
crosshead handle
|

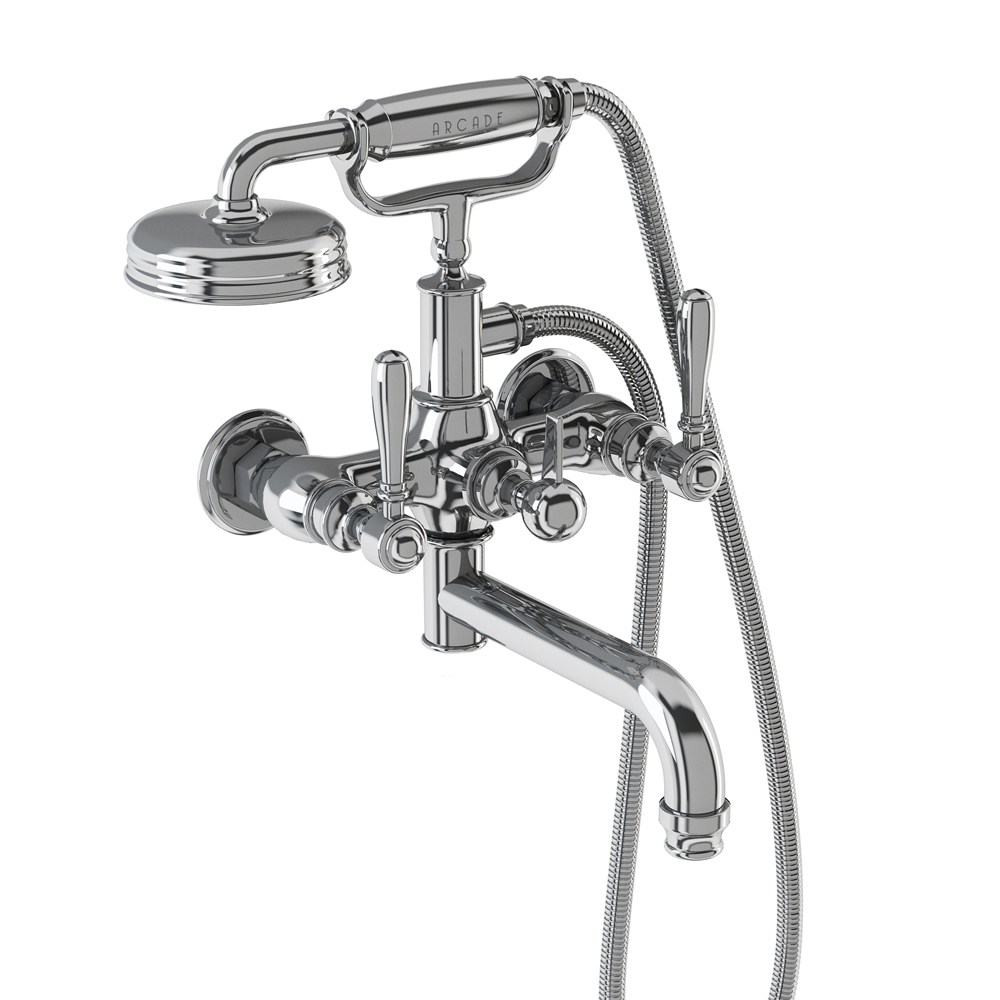

brass lever
|

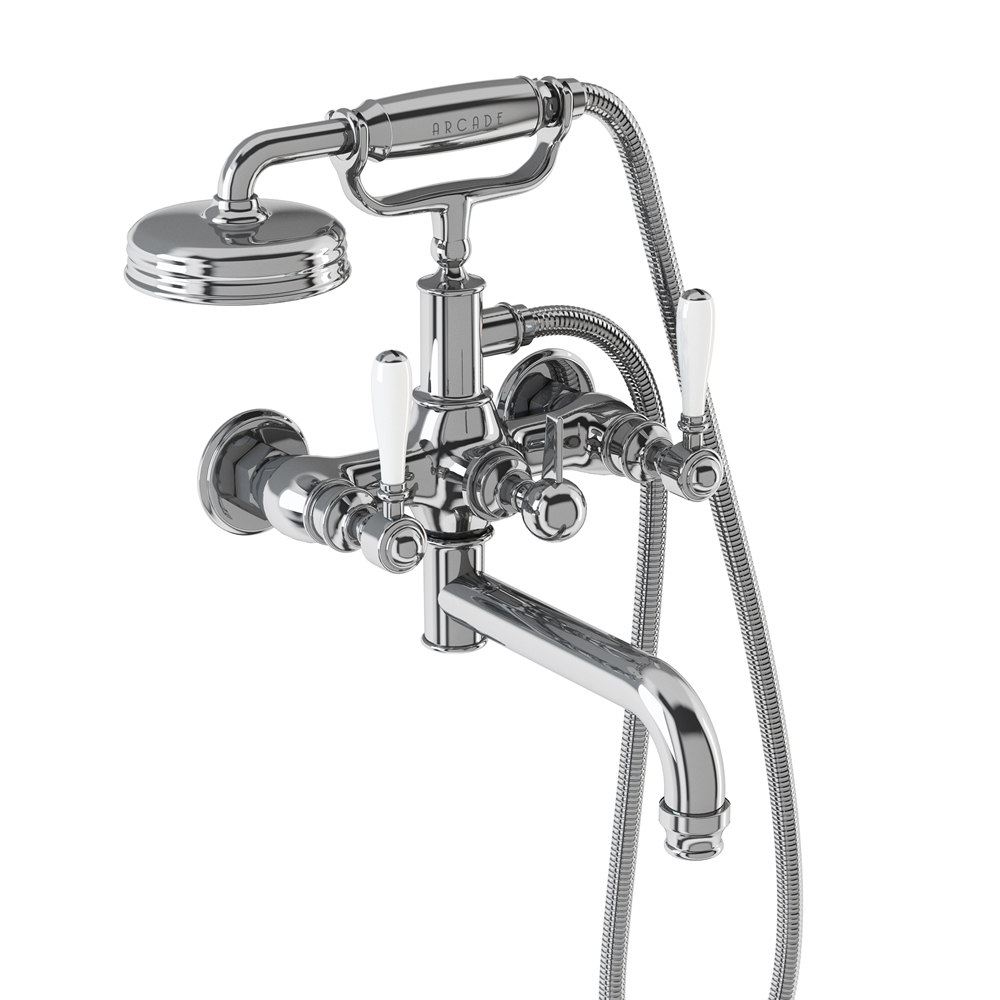

white ceramic lever
|

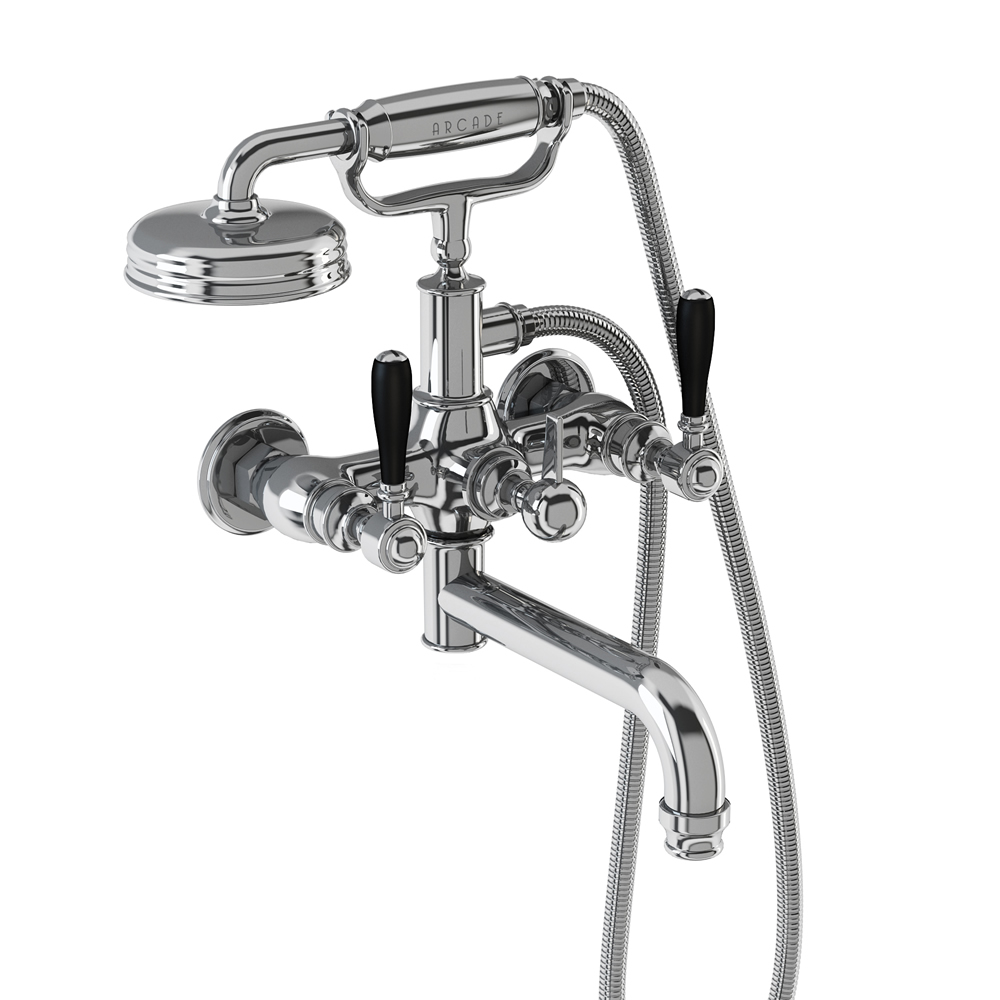

gloss black ceramic lever
|
As Shown
| ARC 2019 CHR Arcade bath shower mixer - wall mounted with brass handle handset - chrome |
| ARCHLC Crosshead handle (pair) for ARCADE 2012,2013,2018,2019 - chrome, 64*64mm |
| ACL19C - Combined product code |
Nett Weight
| ARC 2019 CHR - tap - 3.9kg |
| ARCHLC - handle - 0.27kg |
Gross Weight Including Packaging
| ARC 2019 CHR - tap - 5kg |
| ARCHLC - handle - 0.33kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Recommended pressure 1 Bar Minimum. |
|
Also supplied with aerator for use with high water pressure |
|
Supplied with flow straighter for use with low water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 8.62 | 14.94 | 21.9 | 31.29 | 38.66 | 44.55 | 49.32 |
| Aerator | 4.66 | 7.35 | 10.39 | 15.42 | 19.03 | 21.22 | 24.88 |
| Handset | 2.2 | 4.21 | 6.54 | 9.84 | 12.44 | 14.78 | 17.03 |
| SP1689 | brass connecting pipes (pair) for ARC 2019 CHR, ARC 2019 NKL, ARC19, ARC19 CHR |
| ARCSP140 CHR | chrome finish Crosshead handle (single piece) for Arcade basin taps(ARC12 CHR, ARC2012 CHR) and Arcade bath tap(ARC2018 CHR, ARC18 CHR, ARC2019 CHR, ARC19 CHR) |
| ARCSP174 CHR | chrome finish diverter handle for Arcade bath taps ARC 2018 CHR, ARC2019 CHR, ARC18 CHR, ARC19 CHR |
| ARCSP178 CHR | chrome finish Wall plate for ARC19 CHR, ARC2019 CHR |
| ARCSP169 | diverter cartridge of Arcade bath tap ARC18, ARC18 CHR, ARC19, ARC19 CHR, ARC2018 CHR, ARC2018 NKL, ARC2019 CHR, ARC 2019NKL |
| SP1491 | screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR) |
| SP1033 | SP1033-gasket (piece) for ARC2018 CHR, ARC 2018 NKL, ARC 2019 CHR, ARC 2019 NKL, ARC18, ARC18 CHR, ARC19, ARC19 CHR |
Downloads
- Instructions - PDF - ARC 2019 CHR (English)
- Instructions - PDF - ARCHLC (English)
- Instructions - PDF - ARCHLC (French)
- Instructions - PDF - ARC 2019 CHR (French)
- 2D CAD-File - DWG - ACL19C (ARC 2019_ARCHL _NKL_CHR.dwg)
-

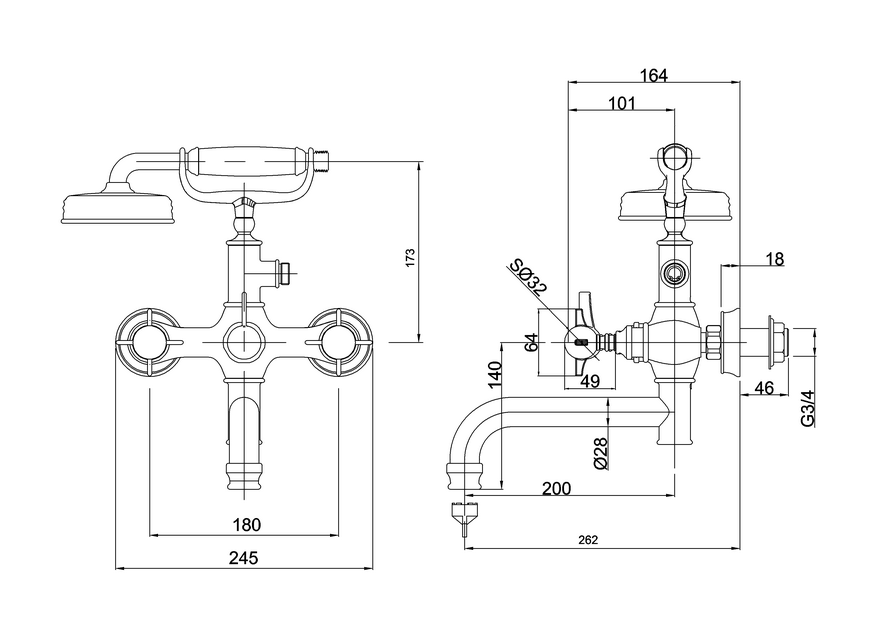

2D Drawing - PDF -
ACL19C
(ARC 2019_ARCHL _NKL_CHR.pdf)
2D Drawing - PDF - ARC19 CHR with handle
-
3D RFA BIMM Objects - File - RFA
-
ACL19C
(ACL19C.rfa)
- 3D IGS - File - IGS - ARC 2019 CHR (ARC 2019.igs)
- 3D IGS - File - IGS - ARCHLC (ARCHLC.igs)
