Extended vertical riser (with two adjustable vertical riser wall brackets)
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options

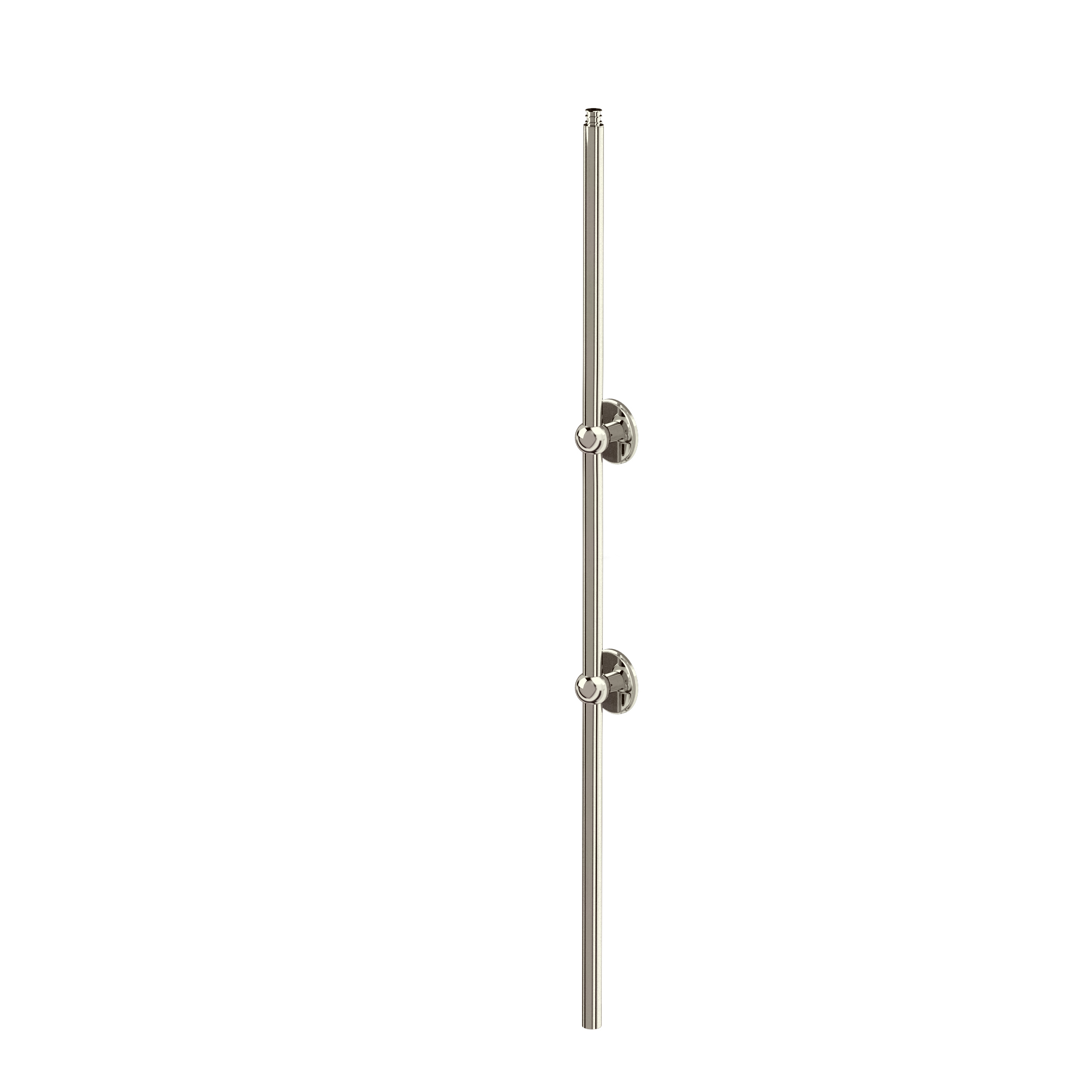

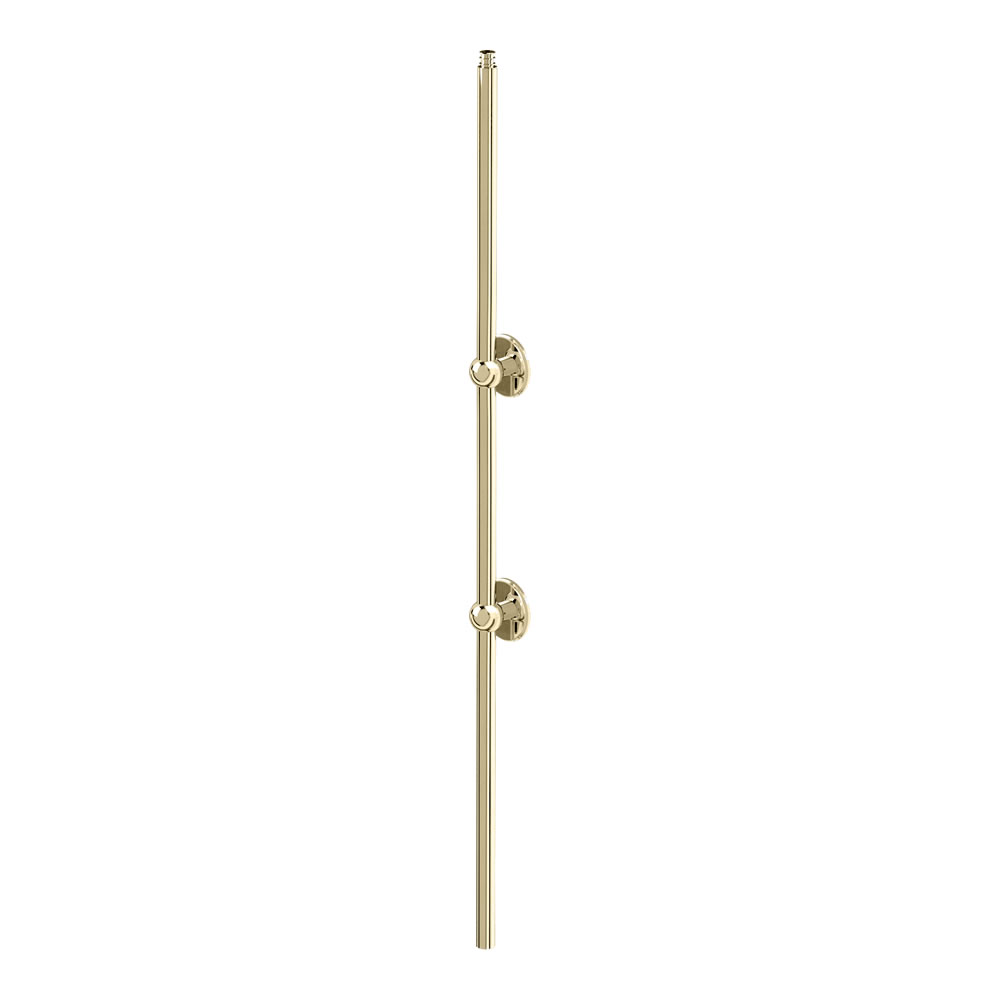

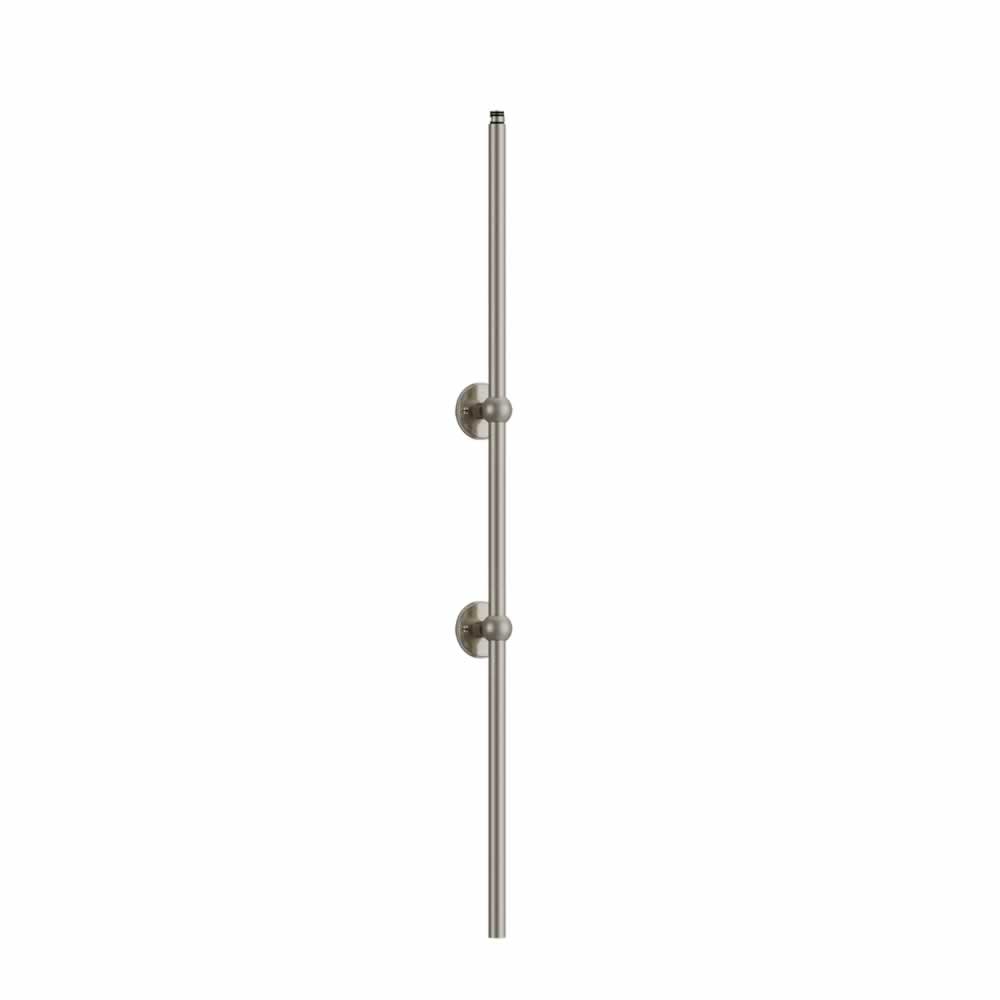

Arcade Extended vertical riser  (with two adjustable vertical riser wall brackets) - chrome Chrome Extended vertical riser (with two adjustable vertical riser wall brackets) - GOLD Gold Arcade Extended vertical riser  (with two adjustable vertical riser wall brackets) - nickel Nickel Extended Vertical Riser Brushed Nickel Brushed Nickel
Alternate Text
As Shown
V22 Extended vertical riser
Colour
V22 - riser - Polished Chrome
Material
V22 - riser - Brass
Size
V22 - 171 x 60 x 1800mm
Nett Weight
V22 - riser - 1.84kg
Gross Weight Including Packaging
V22 - riser - 2.41kg
Packed Dimension
V22 - 1820 x 95 x 70 = 0.0121 m3
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
SP806 3x rubber o rings and 1x plastic washer for all finishes products of V21, V22, ARCV21, ARCV22
SP1147 the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws)
Downloads
  • Instructions - PDF - V22 (French)
  • 3D RFA BIMM Objects - File - RFA BIMM Objects - V22 (V22.rfa)
  • 3D IGS - File - IGS - V22 (V22.igs)
  • Product image 1 - jpg

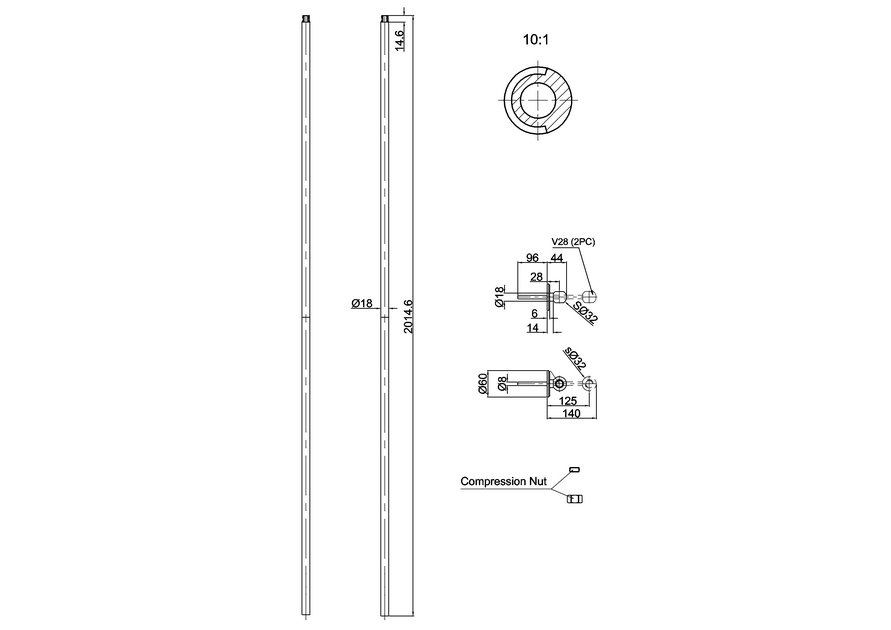

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
