Eden Thermostatic single outlet twin control valve with Extended Rigid Riser
asaq2.Model.Web_product_new?.web_name
Product Options
shower head options
6_shower_head_wb.jpg 6 inch Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Extended Rigid Riser and Swivel Shower Arm with 9 inch rose 9 inch Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Extended Rigid Riser and Swivel Shower Arm with 12 inch rose 12 inch
Indicies & lever finish
Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Extended Rigid Riser and Swivel Shower Arm with 6 inch rose White Eden Medici Thermostatic Exposed Shower Bar Valve Single Outlet with Extended Rigid Riser and Swivel Shower Arm with 6 inch rose Medici Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Extended Rigid Riser and Swivel Shower Arm with 6 inch rose  - Black Black
Alternate Text
As Shown
EF1S Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Swivel Shower Arm
V16 6 inch shower rose
V22 Extended vertical riser
BEF1S.EXT-V16  -  Combined product code
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
EF1S  -  UK Compliant
V16  -  WRAS Approved
V22  -  WRAS Approved
Alternate Text
Additional Information
Traditional brass body, Claremont handles, with ceramic indices
18mm diameter vertical brass shower riser
355mm adjustable swivel shower arm

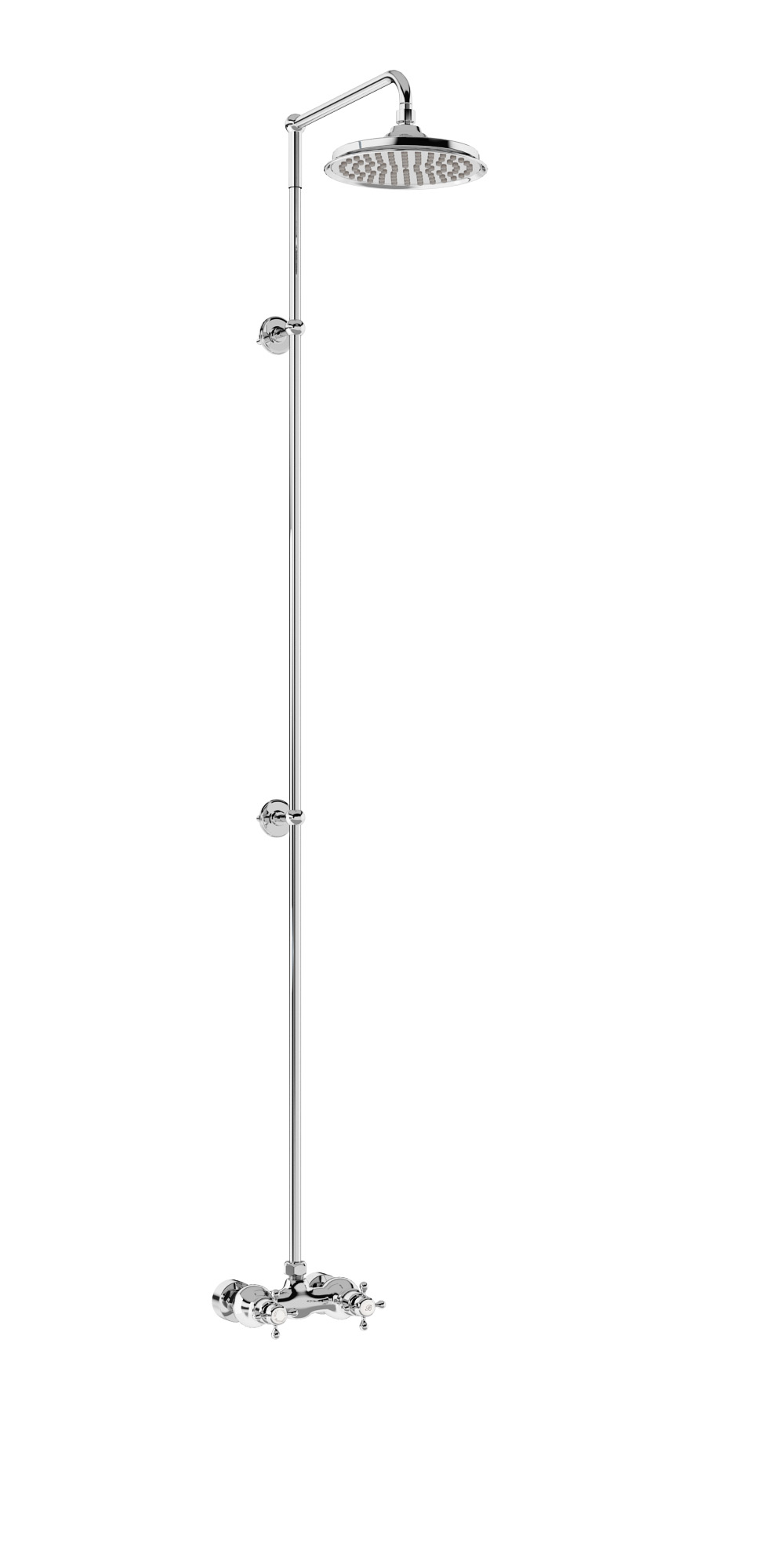

Image shown is with 6" Airburst shower head.
Image shown is with 6 inch rose.
V22 Extended vertical riser is available if required and can be ordered as an option
The shower head has anti-limescale silicon nipples.
Hot & cold inlet ∅15mm
Compatible Products
V2 -    Anglesey Valve Handle (single)
V3 -    Birkenhead Valve Handle (single)
V23 -    Soap basket
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
12 inch rose 3.46  4.2  7.81  11.7  14.73  n/a  n/a
6 inch rose 3.36  4.99  7.11  10.71  12.96  n/a  n/a
9 inch rose 3.14  4.04  6.38  9.73  12.18  n/a  n/a
SP806 3x rubber o rings and 1x plastic washer for V21, V22, ARCV21 NKL, ARCV22 NKL
SP432 a pair of adjustable vertical riser wall brackets for the latest V22 (adjustment tolerance of the bracket is 28~125mm)
SP376 adaptor(pair) G1, 2 male thread to 15mm pipe
SP1052 cartridge cover for EF1S, EF2S, T2WB, T2DB, T2WS, T2DS
SP1664 check valve for product EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, AF3S BLA, AF3S GOLD, AF3S NKL, T2DB, T2WB
SP873 chrome bevel and threaded part of Burlington & Arcade valve handles
SP110 chrome compression nut and olive for V21, V22, V31, V27
V1 claremont valve handle 1 (single)
SP596 claremont valve handle for all valves, (except Stour)
SP478 filter & washer for shower roses
SP599 grub screw (M4x4)
SP580 hent F4 flow control cartridge
SP1483 joint cover for T2WS, EF1S, EF2S, T2WB
SP726 metal block for Trent, Severn, Eden, Spey shower valves
SP1170 new Sedal cartridge for Tay BSM, used for EF1S, EF2S, T2WS, T2DS, T2WB, T2DB which with updated valve body
SP695 on, off ceramic indice for EF1S
SP1701 one pair of connectors for EF1S, EF2S, T2WS, T2WB
SP1268 one piece of wall plate for EF1S, EF2S, T2WS, T2WB
SP662 one unit of wall Bracket for V21and V22(28-171mm)
SP804 pair of connectors for EF1S, EF2S, T2WS, T2WB
SP981 pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB
SP1350 retaining nut for T2DB, T2WB, EF1S, EF2S, T2WS, T2DS
SP862 sleeve connector for product EF1S
SP601 small grub screw (M4x4)
V11-1 straight shower arm for vertical riser mounting
SP668 straight shower arm for vertical riser mounting (same as V11-1)
SP435 the box for V16
SP1147 the bracket for BF3S, BF2S, SF3S, V21, V22 (including screws)
SP1128 the screws and expansion tubes for Trent, Avon, Eden valves (6 sets)
SP585 VQT2 cartridge temperature control cartridge
SP929 wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
SP188 wall Bracket for V21and V22(28-125mm)
