Angled rail

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

A55 CHR Angled rail

Colour

A55 CHR - rail - Polished Chrome

Material

A55 CHR - rail - Brass

Size

A55 CHR - 396 x 190 x 89mm

Nett Weight

A55 CHR - rail - 0.64kg

Gross Weight Including Packaging

A55 CHR - rail - 1.18kg

Packed Dimension

A55 CHR - 210 x 130 x 450 = 0.0123 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

BS EN248:2002

Additional Information

Supplied with an extra chrome plated domed screw.

Downloads

Instructions - PDF - A55 CHR (English)
Instructions - PDF - A55 CHR (French)

2D CAD-File - DWG - A55 CHR (A55 CHR_LD.dwg)

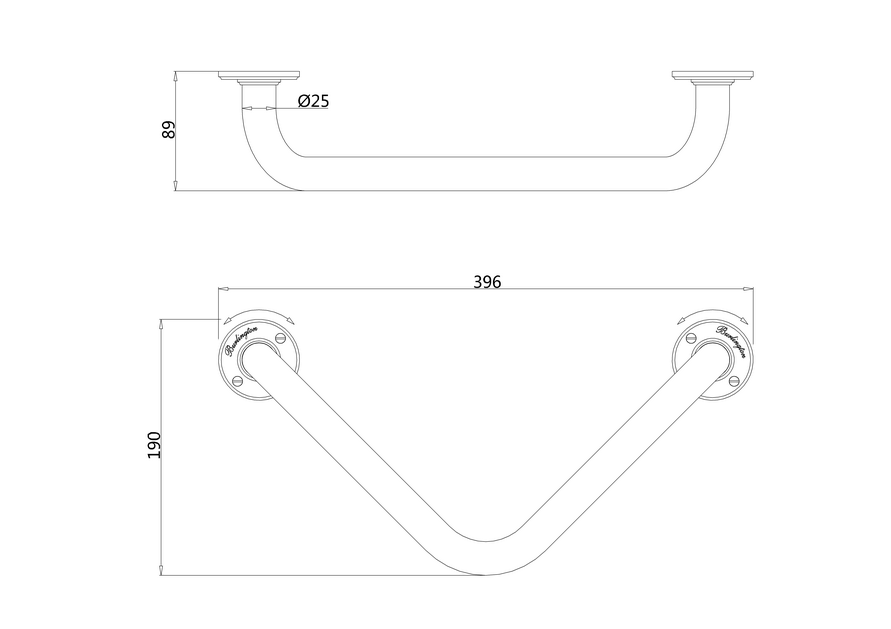

2D Drawing - PDF - A55 CHR (A55 CHR_LD.pdf) 2D Drawing - PDF - A55 CHR

3D DWG - File - DWG - A55 CHR (A55 CHR-5035004.dwg)
3D DXF - File - DXF - A55 CHR (A55 CHR-5035004.dxf)
3D IGS - File - IGS - A55 CHR (A55 CHR-5035004.igs)
3D RFA BIMM Objects - File - RFA - A55 CHR (A55 CHR-5035004.rfa)

Product image 1 - jpg
Product image 2 - pending.

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
