Burlington Basin tap shut off valves ( hot / cold )
As Shown
| W28 Burlington Basin tap shut off valves ( hot / cold ) |
Material
| W28 - valve - Brass |
Nett Weight
| W28 - valve - 0.65kg |
Gross Weight Including Packaging
| W28 - valve - 0.95kg |
Packed Dimension
| W28 - 330 x 140 x 55 = 0.0025 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 817:2008 |
|
BS EN 200:2008 |
| SP931 | decorative cap of Burlington tap handles - cold |
| SP930 | decorative cap of Burlington tap handles - hot |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1296 | tube for W28 |
Downloads
-
2D CAD-File - DWG -
W28
(W28_LD.dwg)
-

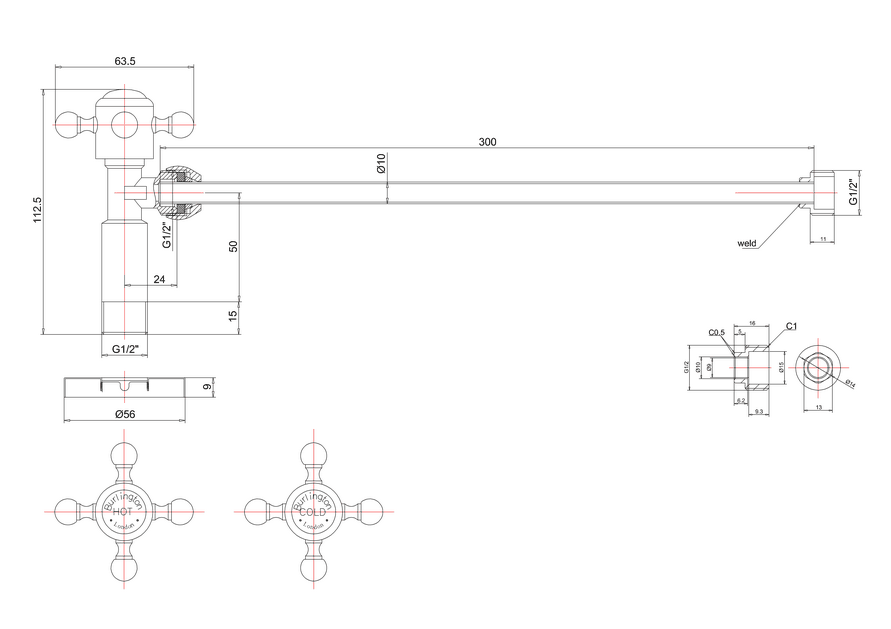

2D Drawing - PDF -
W28
(W28_LD.pdf)
2D Drawing - PDF - W28
-
3D DWG - File - DWG
-
W28
(W28.dwg)
-
3D DXF - File - DXF
-
W28
(W28.dxf)
-
3D IGS - File - IGS
-
W28
(W28.igs)
-
3D RFA BIMM Objects - File - RFA
-
W28
(W28.rfa)
