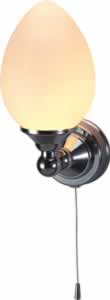

Edwardian single eliptical LED light
As Shown
| T52 Edwardian single elliptical light |
Material
| T52 - light - Zinc Alloy |
Nett Weight
| T52 - light - 0.7kg |
Gross Weight Including Packaging
| T52 - light - 0.9kg |
Packed Dimension
| T52 - 340 x 175 x 150 = 0.0089 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 60598-1:2015+A1:2018 |
|
BS EN 60598-2-2:2012 |
Additional Information
|
This light is supplied with G9 LED light, They are 3.5 Watts, but give 40 watts of light and have an IP rating of IP44. |
|
The mouth blown glass shades are handmade and may feature unique characteristics such as air bubbles and individual variations |
|
This light is supplied with a blank washer so you can switch the light centrally if desired. |
| SP199 | 2pcs grub screws and 1pcs Allen key for T50, T51, T52, T53 |
| SP643 | LED bulb for T50, T52 |
| SP126 | light shade for T52, T53 |
| SP707 | pull chord for T52, T50 |
Downloads
-

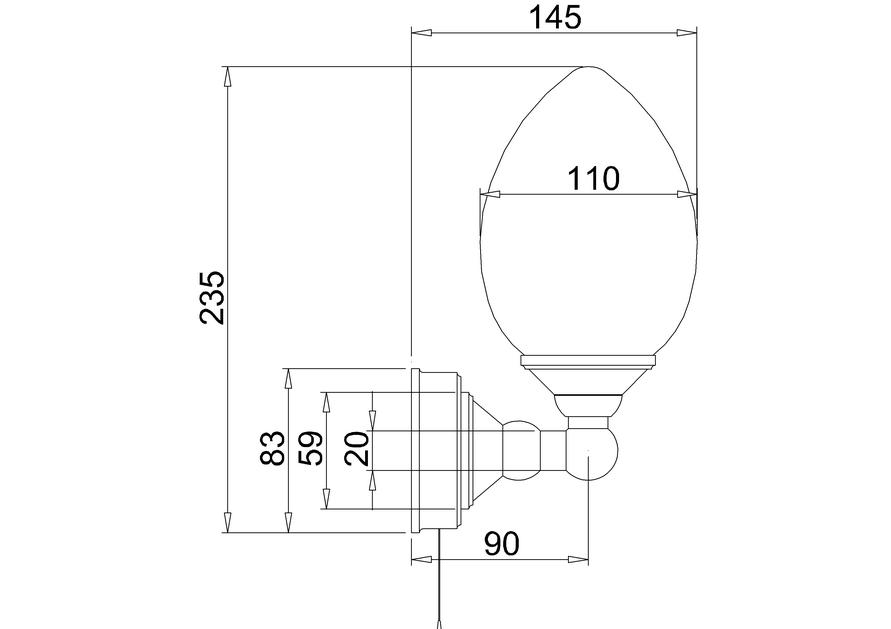

2D CAD-File - DWG -
T52
(T52_LD.dwg)
-
2D Drawing - PDF -
T52
(T52_LD.pdf)
2D Drawing - PDF - T52
-
3D DWG - File - DWG
-
T52
(T52-A.dwg)
-
3D DXF - File - DXF
-
T52
(T52-A.dxf)
-
3D IGS - File - IGS
-
T52
(T52-A.igs)
-
3D RFA BIMM Objects - File - RFA
-
T52
(T52-A.rfa)
