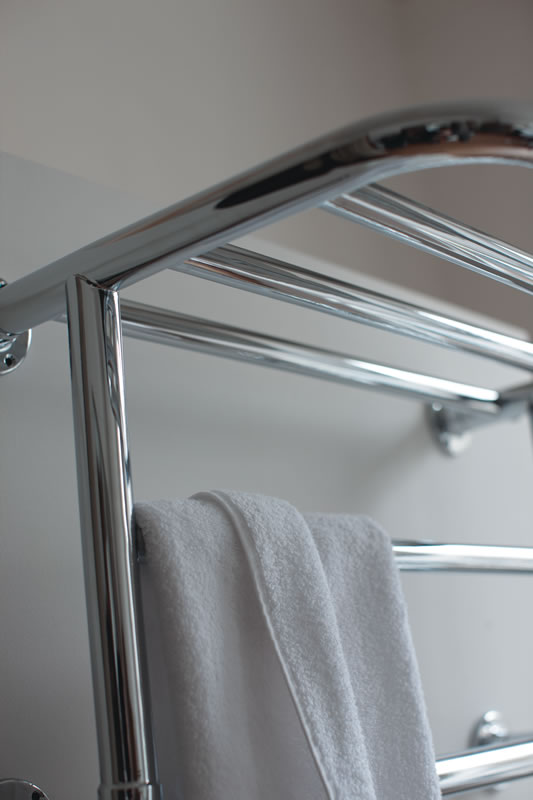

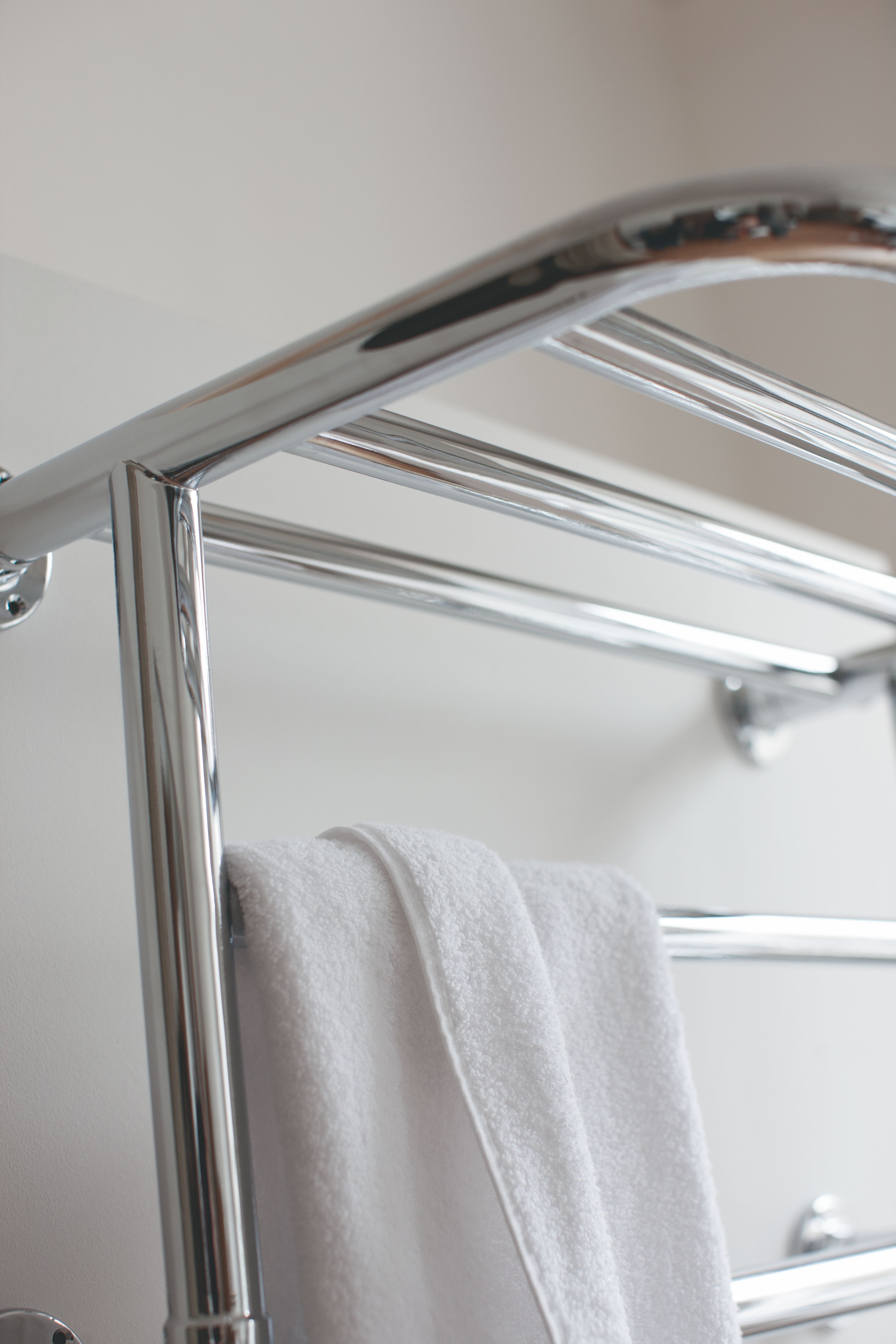

Strand radiator with angled valves
As Shown
| R11CHR Strand radiator |
Material
| R11CHR - radiator - Steel |
Nett Weight
| R11CHR - radiator - 6.44kg |
Gross Weight Including Packaging
| R11CHR - radiator - 7.44kg |
Packed Dimension
| R11CHR - 675 x 430 x 430 = 0.1248 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 2767:1991 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
Includes all brackets and fixings. |
|
400mm High x 640mm Wide.32mm tubes. |
|
High quality chrome plated finish. |
|
Designed to be plumbed into your central heating system. |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Output: 955 BTUs/218 watts (△T=50℃) |
|
Maximum working temperature:95℃ |
|
440mm plumbing pipe centers |
|
Distance from wall to the rail is 390mm. |
Compatible Products
| R6 CHR - Angled radiator valves chrome |
| SP801 | air valve for Burlington radiators |
Downloads
-
2D CAD-File - DWG -
R11 CHR
(R11_Strand_20210802.dwg)
-

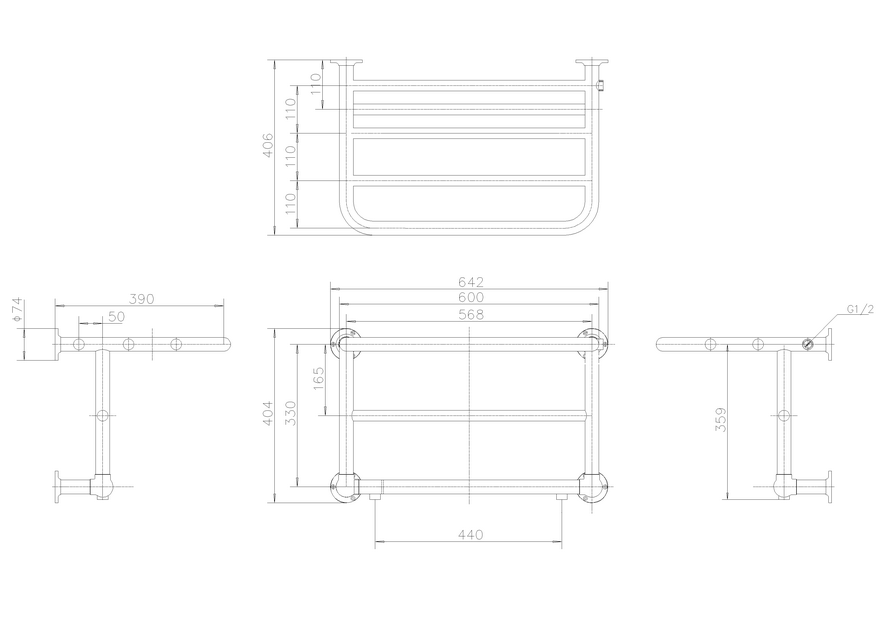

2D Drawing - PDF -
R11 CHR
(R11_Strand_20210802.pdf)
2D Drawing - PDF - R11 CHR
-
3D DWG - File - DWG
-
R11 CHR
(R11.dwg)
-
3D DXF - File - DXF
-
R11 CHR
(R11.dxf)
-
3D IGS - File - IGS
-
R11 CHR
(R11.igs)
-
3D RFA BIMM Objects - File - RFA
-
R11 CHR
(R11.rfa)
