Chaplin radiator

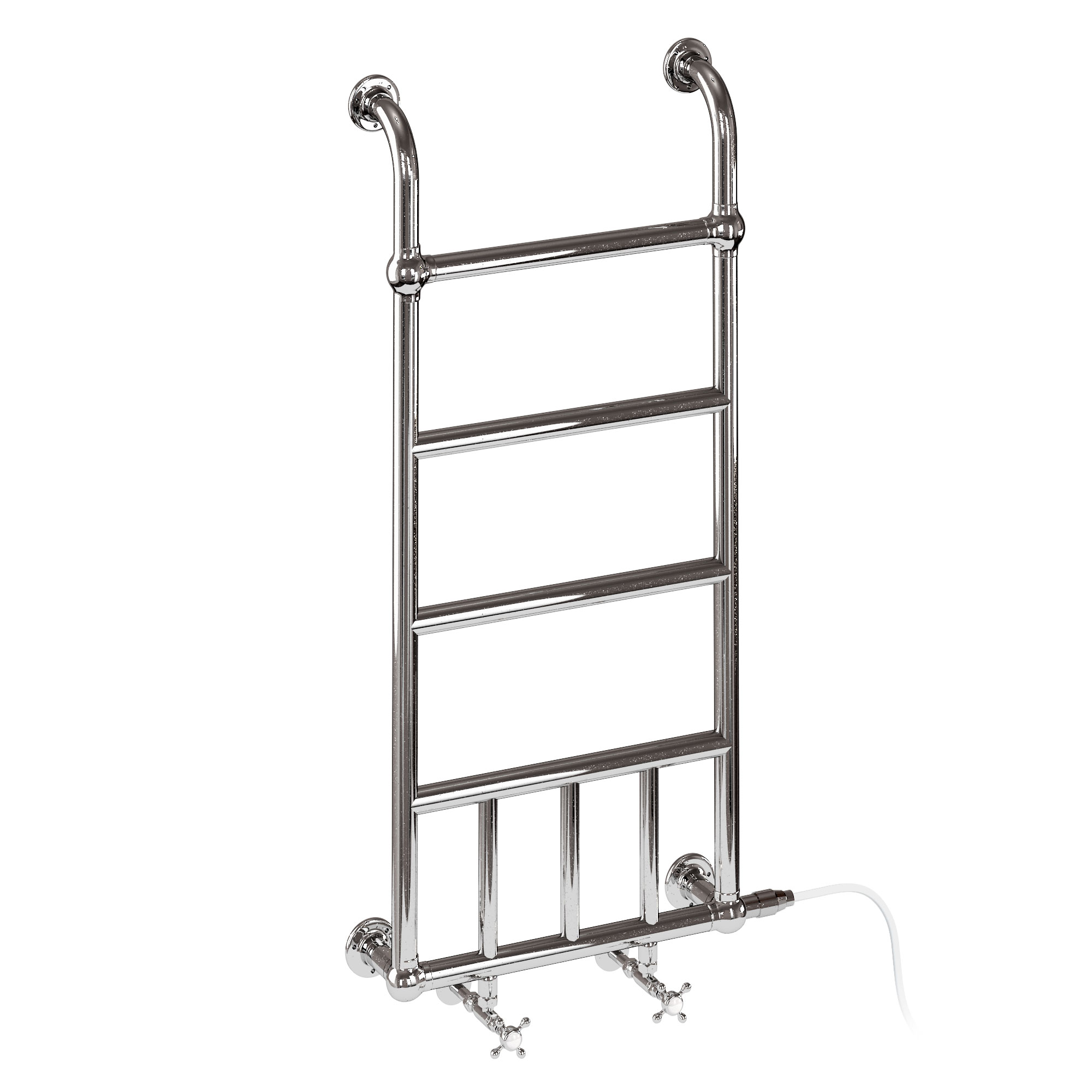

As Shown
| R12 CHR Chaplin radiator |
shown with the summer heating kit
Material
| R12 CHR - radiator - Steel |
Nett Weight
| R12 CHR - radiator - 7.72kg |
Gross Weight Including Packaging
| R12 CHR - radiator - 8.72kg |
Packed Dimension
| R12 CHR - 1170 x 570 x 145 = 0.0967 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 442-1:2015 |
|
BS EN 2767:1991 |
|
BS EN 442-2:2015 |
|
BS EN 248:2002 |
Additional Information
|
Distance from wall to the rail: 94mm. |
|
for technical information on the summer heating kit please refer to the summer heating kit section |
|
Fill the radiator approximately 90% (3.1L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) |
|
Includes all brackets and fixings. |
|
Valves are required. These are not included. |
|
Output:1024BTUs/235 watts(△T=50℃) |
|
Operating pressure up to 8 bar.(Certified by BEN N.L) |
|
Diameter of tubes is 32mm. |
|
Maximum working temperature:70℃ |
|
234mm plumping pipe centers |
Compatible Products
| R6 CHR - Angled radiator valves chrome |
| BUR9 - 200W Summer electric heating kit for Bloomsbury |
| SP801 | air valve for Burlington radiators |
| SP1782 | inner box of R12 CHR (with label) |
Downloads
-
2D CAD-File - DWG -
R12 CHR
(R12_Chaplin_20210802.dwg)
-

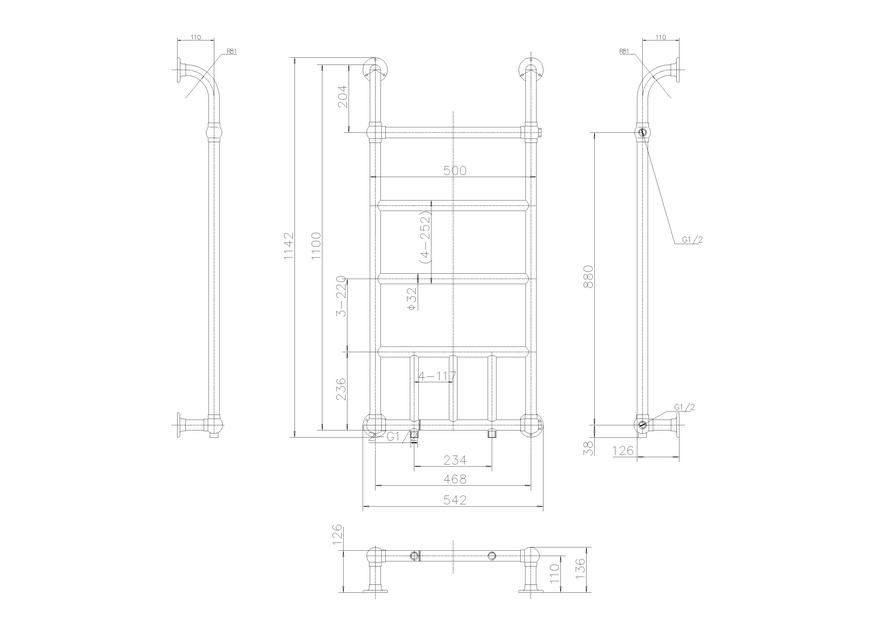

2D Drawing - PDF -
