Wall Hung Pan P10
As Shown
| P10 Wall hung pan |
| S18 Gloss white soft close hinge seat |
Nett Weight
| P10 - pan - 20.1kg |
| S18 - seat - 2.53kg |
Gross Weight Including Packaging
| P10 - pan - 21.65kg |
| S18 - seat - 2.76kg |
Packed Dimension
| P10 - 510 x 367 x 367 = 0.0687 m3 |
| S18 - 462 x 376 x 72 = 0.0125 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Wall hung pan must be used with a concealed cistern and a method for safely securing the pan to the 'wall' |
|
Steel frame for wall hung pan W33A is recommended for fixing the pan to the back wall and floor |
|
Recommended lever flush concealed cistern is : F6CC Plastic cistern with dual lever flush |
|
Recommended button flush concealed cisterns are : W31A - top and front access with flush button; W32A - front access dual flush plate. |
|
Wall hung pans must be used with standard Burlington toilet seats. |
Downloads
-
2D CAD-File - DWG -
P10
(P10 20201127.dwg)
-

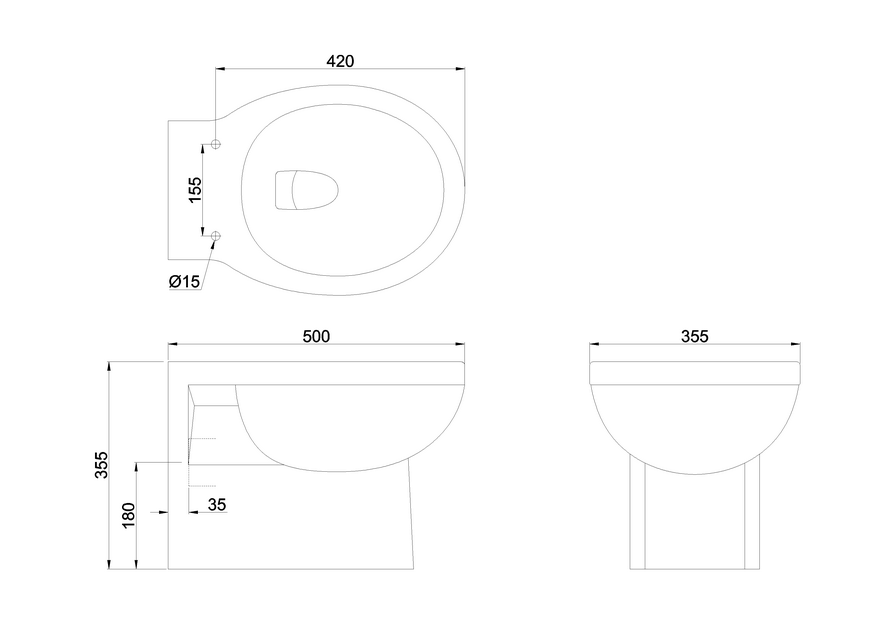

2D Drawing - PDF -
P10
(P10 20201127.pdf)
2D Drawing - PDF - P10
-
3D DWG - File - DWG
-
P10
(CY244WH P10_1.dwg)
-
3D DXF - File - DXF
-
P10
(CY244WH P10_1.dxf)
-
3D IGS - File - IGS
-
P10
(CY244WH P10_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
P10
(CY244WH P10_1.rfa)
- 3D IGS - File - IGS - S18 (S18.igs)
-

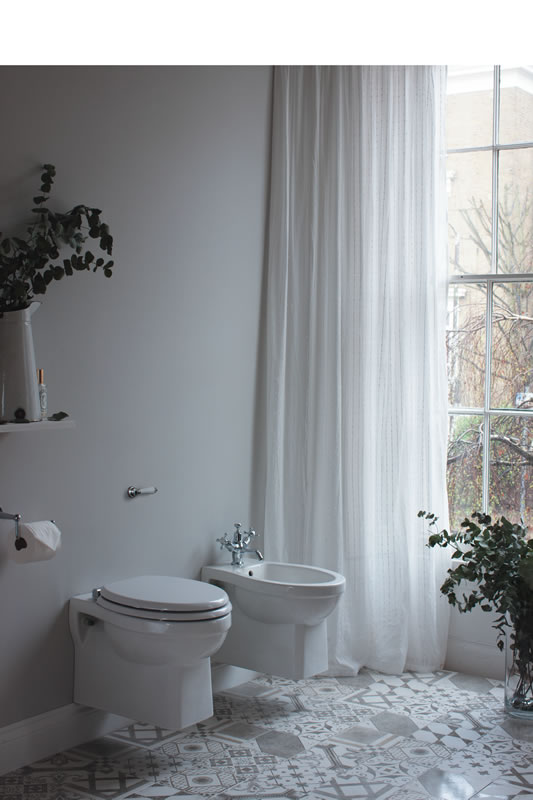

Lifestyle image 1 -
jpg -

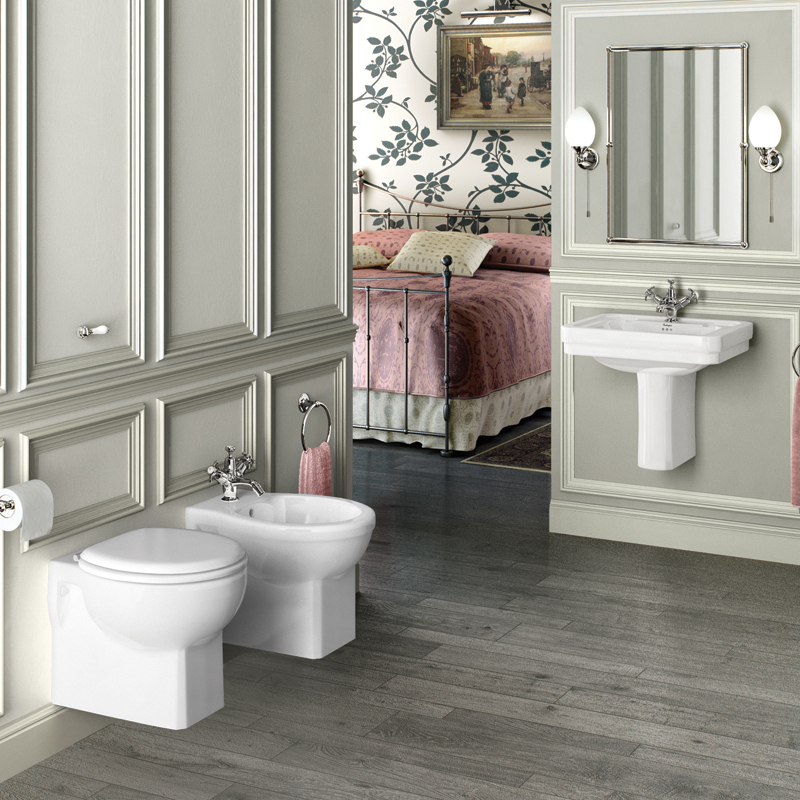

Lifestyle image 2 -
tiff
jpg -

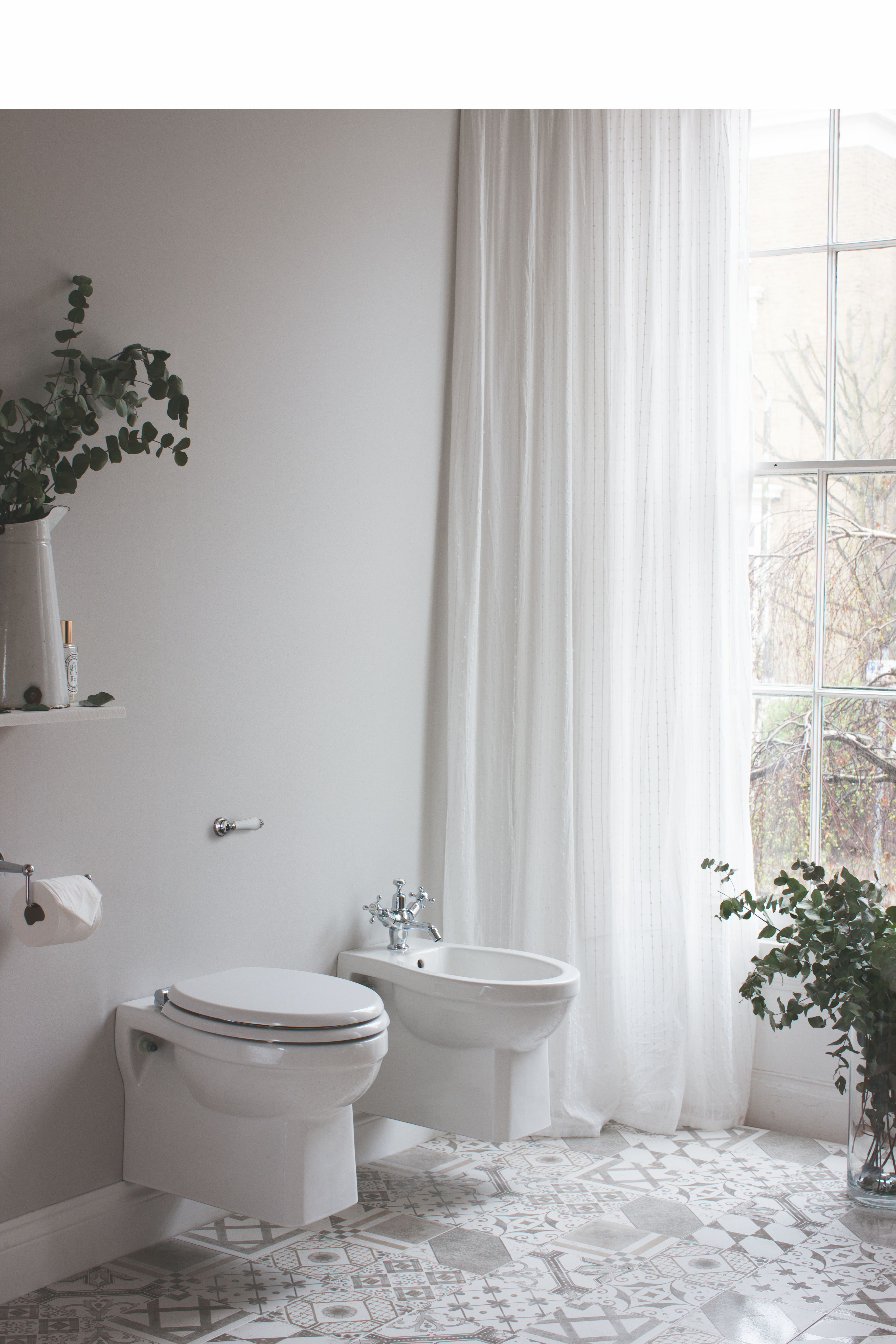

Lifestyle image 3 -
tiff
pending.
-

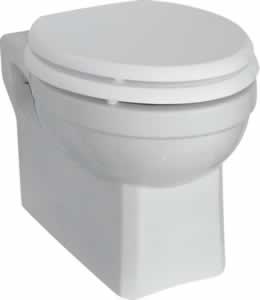

Product image 1 -
