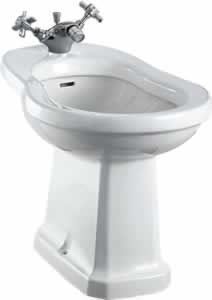

Floor standing Bidet P4
As Shown
| P4 Bidet |
Colour
| P4 - bidet - Gloss White |
Material
| P4 - bidet - Vitreous China |
Nett Weight
| P4 - bidet - 15.1kg |
Gross Weight Including Packaging
| P4 - bidet - 17.25kg |
Packed Dimension
| P4 - 570 x 410 x 420 = 0.0982 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14528:2015 |
Additional Information
|
P4 bidet is not a full back to wall bidet. It is a 'free standing bidet' for maximum ergonomic ease of use |
|
Supplied with floor fixings. |
|
A bidet trap (not supplied) is needed for installation. |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
-
2D CAD-File - DWG -
P4
(P4.dwg)
-

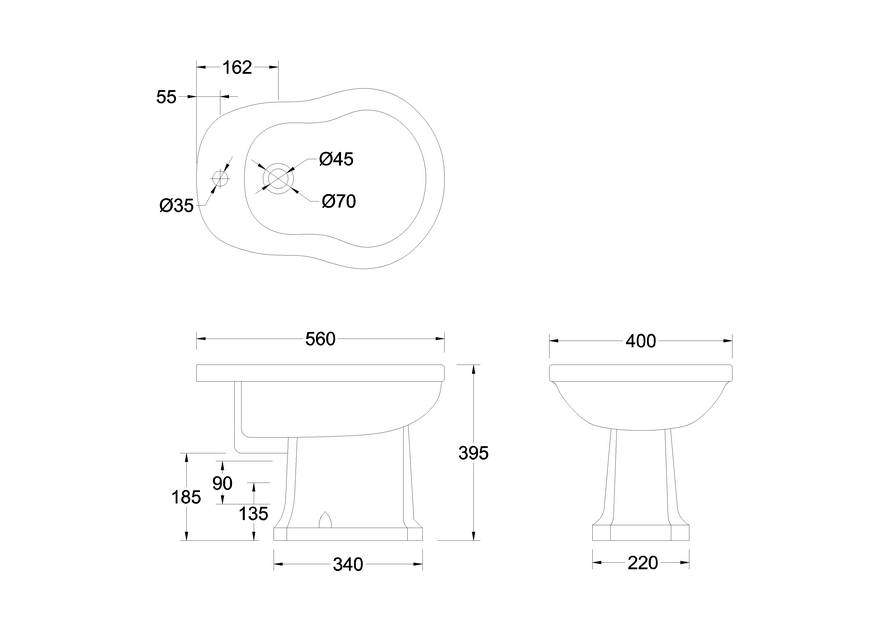

2D Drawing - PDF -
P4
(P4.pdf)
2D Drawing - PDF - P4
-
3D DWG - File - DWG
-
P4
(BY244 P4_2.dwg)
-
3D DXF - File - DXF
-
P4
(BY244 P4_2.dxf)
-
3D IGS - File - IGS
-
P4
(BY244 P4_2.igs)
-
3D RFA BIMM Objects - File - RFA
-
P4
(BY244 P4_2.rfa)
