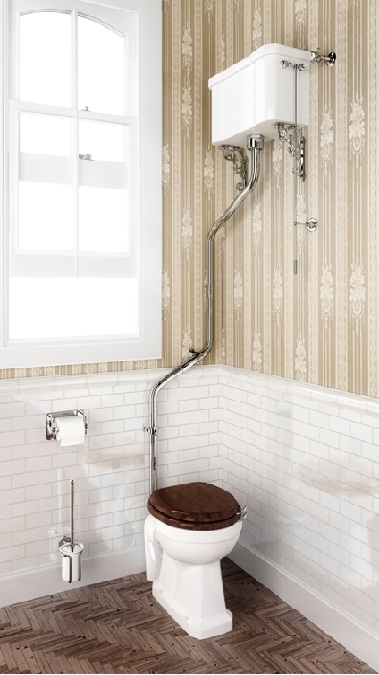

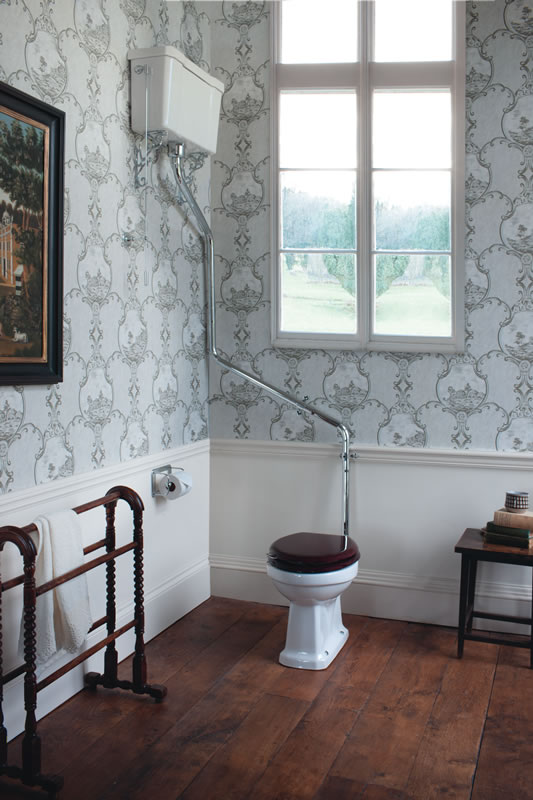

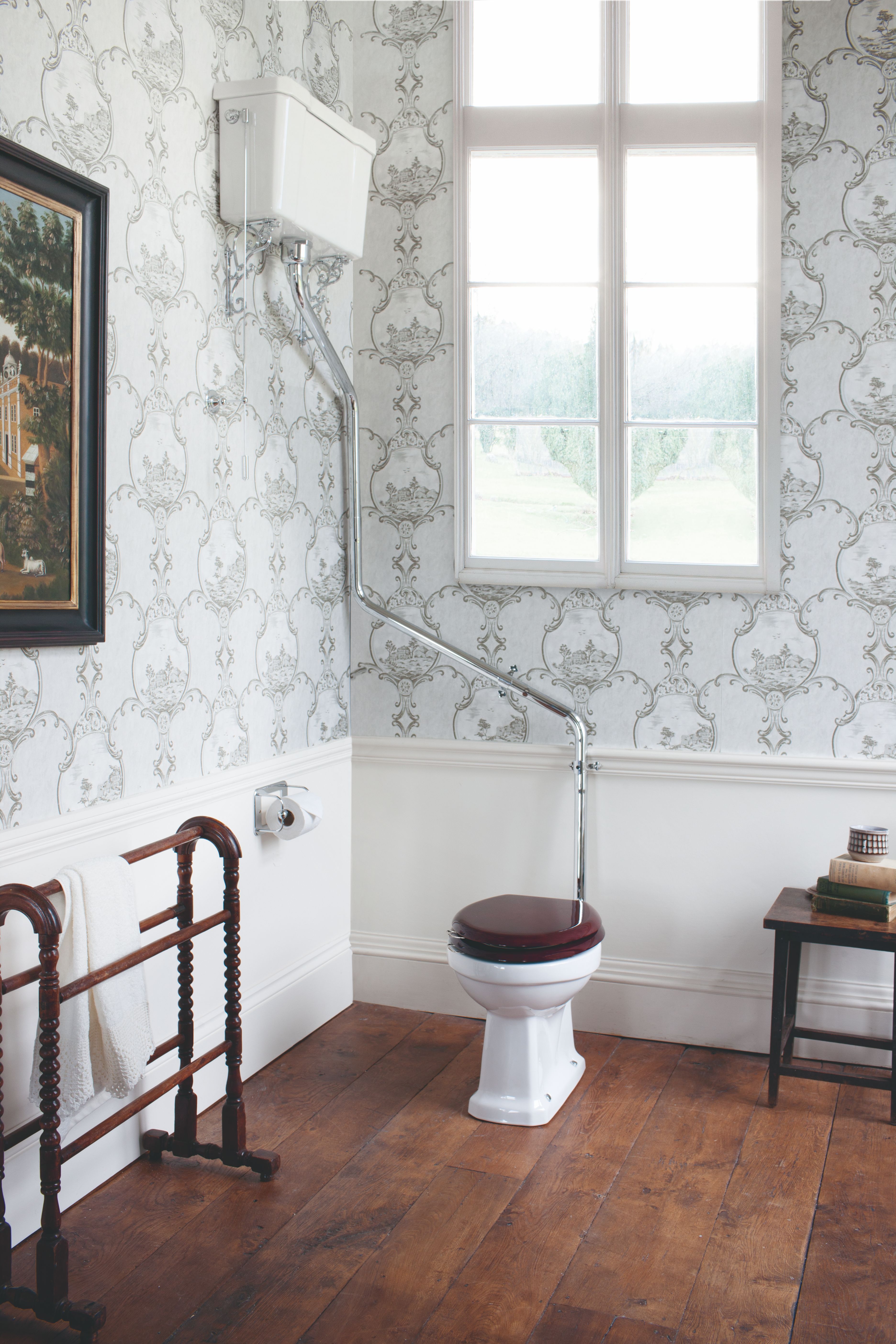

High Level Angled Flush WC
As Shown
| T34 CHR Angled High Level Flush pipes (4 parts) |
| C5 High level cistern |
| P2 Low/high level pan |
| S12 Mahogaony seat |
| A51CHR Burlington seat handle Chrome |
Colour
| T34 CHR - fittings - Polished Chrome |
| C5 - cistern - Gloss White |
| P2 - pan - Gloss White |
| S12 - seat - Gloss Mahogany |
| A51CHR - accessories - Polished Chrome |
Material
| T34 CHR - fittings - Brass |
| C5 - cistern - Vitreous China |
| P2 - pan - Vitreous China |
| S12 - seat - Molded Wood |
| A51CHR - accessories - Zinc Alloy |
Size
| T34 CHR - 435 x 35 x 865mm |
| C5 - 205 x 515 x 330mm |
| P2 - 524 x 360 x 403mm |
| S12 - 432 x 371 x 65mm |
| A51CHR - 50 x 56 x 8mm |
Nett Weight
| T34 CHR - fittings - 4.12kg |
| C5 - cistern - 16.2kg |
| P2 - pan - 17kg |
| S12 - seat - 2.87kg |
| A51CHR - accessories - 0.04kg |
Gross Weight Including Packaging
| T34 CHR - fittings - 6.31kg |
| C5 - cistern - 17.4kg |
| P2 - pan - 18.7kg |
| S12 - seat - 3.1kg |
| A51CHR - accessories - 0.07kg |
Packed Dimension
| T34 CHR - 1100 x 490 x 95 = 0.0512 m3 |
| C5 - 532 x 217 x 370 = 0.0427 m3 |
| P2 - 542 x 372 x 428 = 0.0863 m3 |
| S12 - 440 x 373 x 65 = 0.0107 m3 |
| A51CHR - 60 x 60 x 100 = 0.0004 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 248:2002 |
|
BS EN 33:2019 |
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
Additional Information
|
Supplied with floor fixings |
| SP459 | black rubber wedge for all finishes products of T30 |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP1727 | buffer clip B for T34 CHR |
| SP429 | buffer Clip for T30CHR without black rubber wedge |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP1034 | chrome hole stopper of cistern fittings for high level cisterns C5, C5D, T58 ALU, T59 WHI, T60 BLA |
| SP620 | complete bar hinges for S11, S12 |
| SP7 | fittings for High Level Cistern including Cistern Lever |
| SP97 | flush cone for HL cistern |
| SP826 | flush pipe A of product T34 CHR |
| SP1473 | flush pipe B of T34 CHR |
| SP1474 | flush pipe C of T34 CHR |
| SP1468 | flush pipe D for T34 CHR |
| SP13 | high Level Cistern Lid for C5 |
| SP1044 | high level dual flush valve including the cable, control box and cistern lever for product C5, T58 ALU, T59 WHI, T60 BLA, T70 CHR |
| SP14 | high Level Rod for T30 CHR, T34 CHR |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP384 | inlet valve with G1, 2 chromed-Brass shank and nut for High lever cistern fittings (part of SP7) |
| SP160 | l shape bracket(pair) for T31CHR |
| SP840 | noise reducer for high level cistern fittings |
| SP146 | pin screw for T30 CHR |
| SP918 | plastic hole stopper of cistern fittings for high level cisterns |
| SP17 | screw fixing pack for pan and bidet |
| SP802 | the bigger stopper for SP5A, ARCSP7, C24C, SP7 |
| SP95 | washers & plastic fixing nut for flush pipe |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
- Instructions - PDF - T34 CHR (English)
- Instructions - PDF - C5 (English)
- Instructions - PDF - S12 (English)
- Instructions - PDF - A51CHR (English)
- Instructions - PDF - S12 (French)
- Instructions - PDF - A51CHR (French)
- Instructions - PDF - T34 CHR (French)
- Instructions - PDF - C5 (French)
-
2D CAD-File - DWG -
P2 C5 T34 CHR
(P2 C5 T34 CHR_20201127.dwg)
-

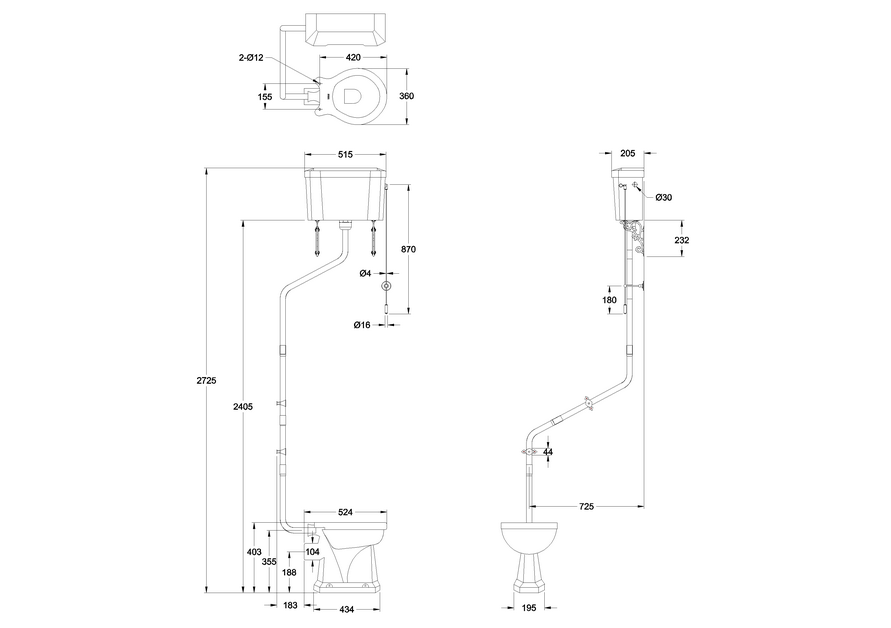

2D Drawing - PDF -
P2 C5 T34 CHR
(P2 C5 T34 CHR_20201127.pdf)
2D Drawing - PDF - P2 C5 T34 CHR
-
3D DWG - File - DWG
-
P2 C5 T34 CHR
(7909.dwg)
-
3D RFA BIMM Objects - File - RFA
-
P2 C5 T34 CHR
(7909.rfa)
-
3D IGS - File - IGS
-
P2 C5 T34 CHR
(t34.igs)
