Wall Hung 65 Vanity Unit single drawer - Classic Invisible Overflow basin 2 tap holes
Product Options
Colour options: furniture
|
Dark Olive
|

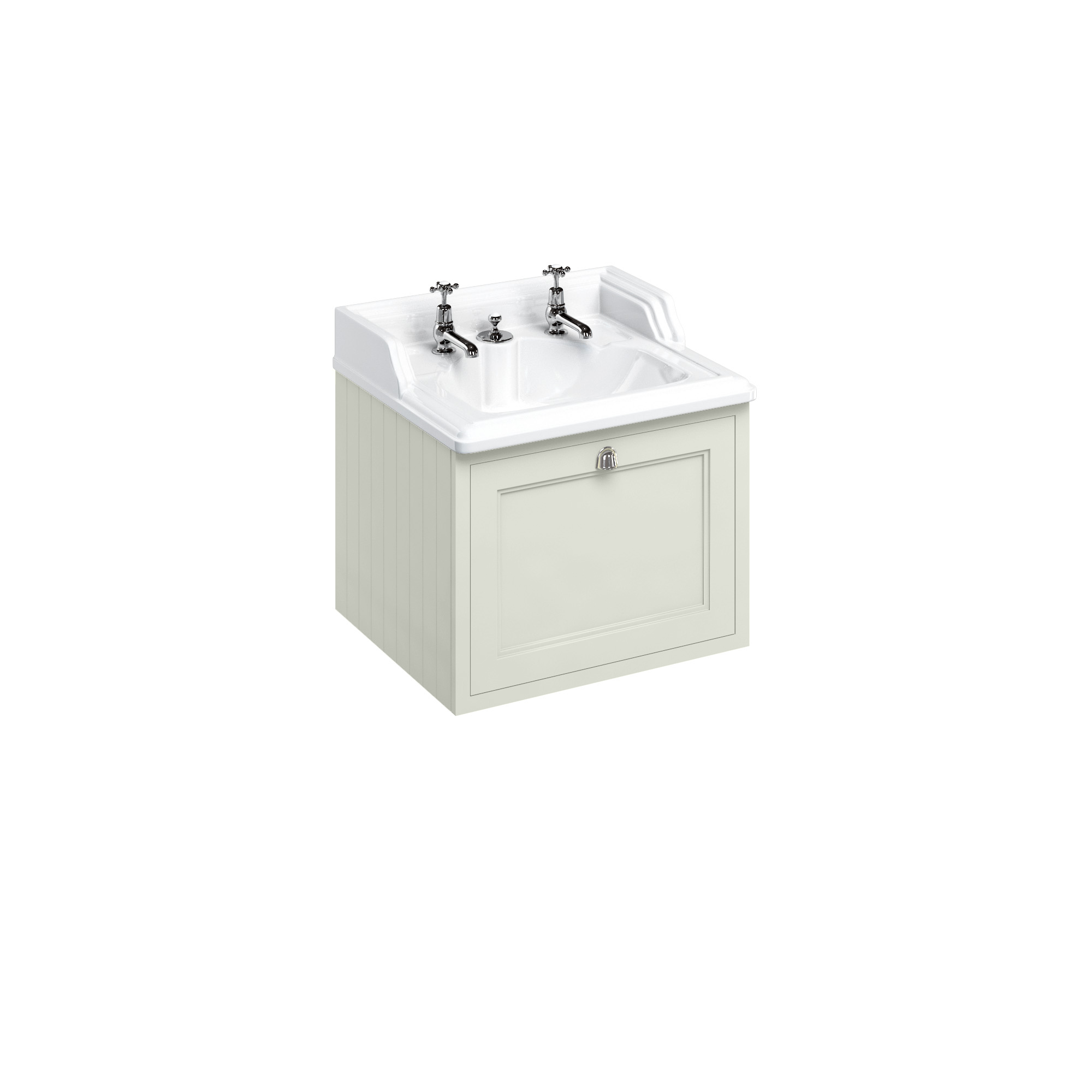

Sand
|

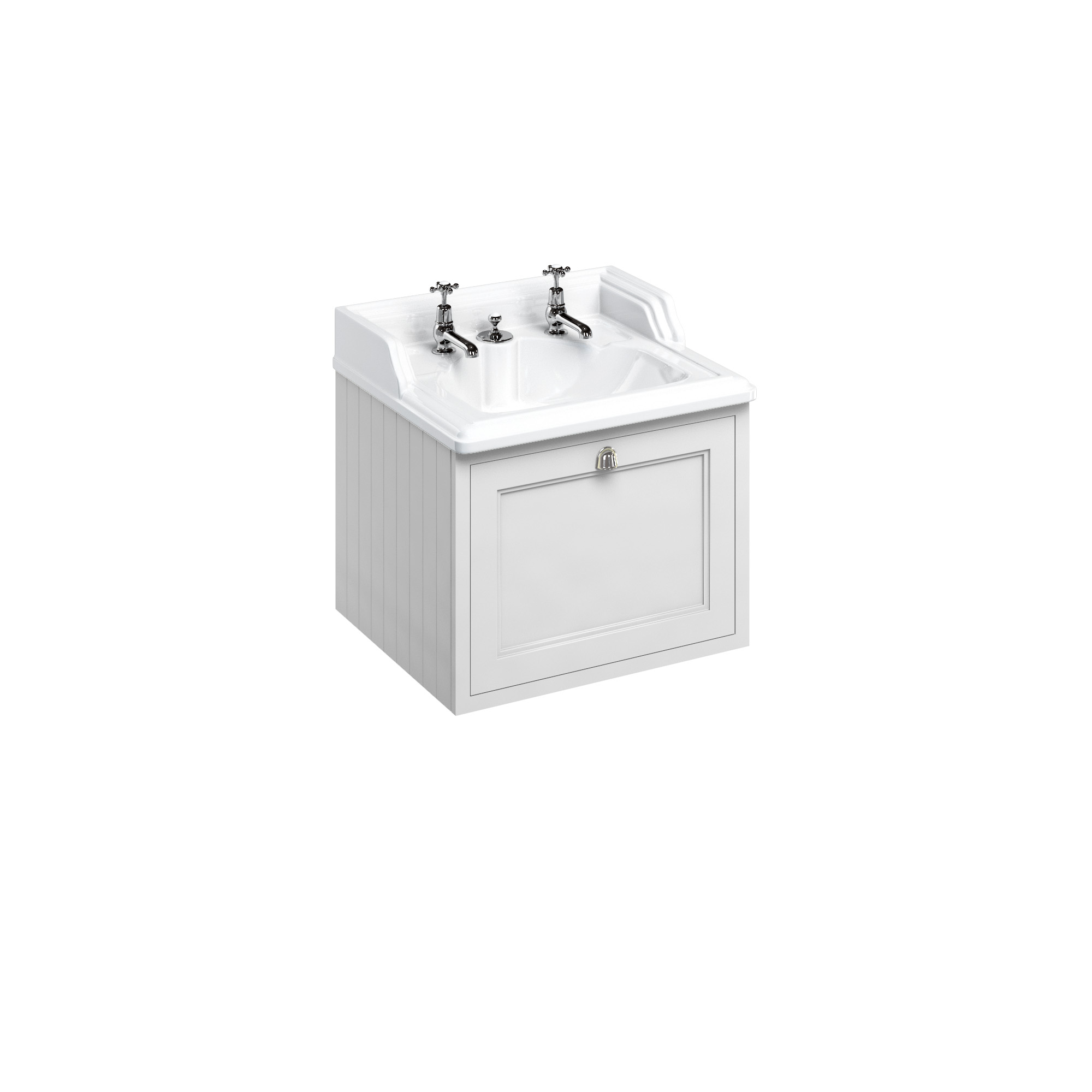

Matt White
|

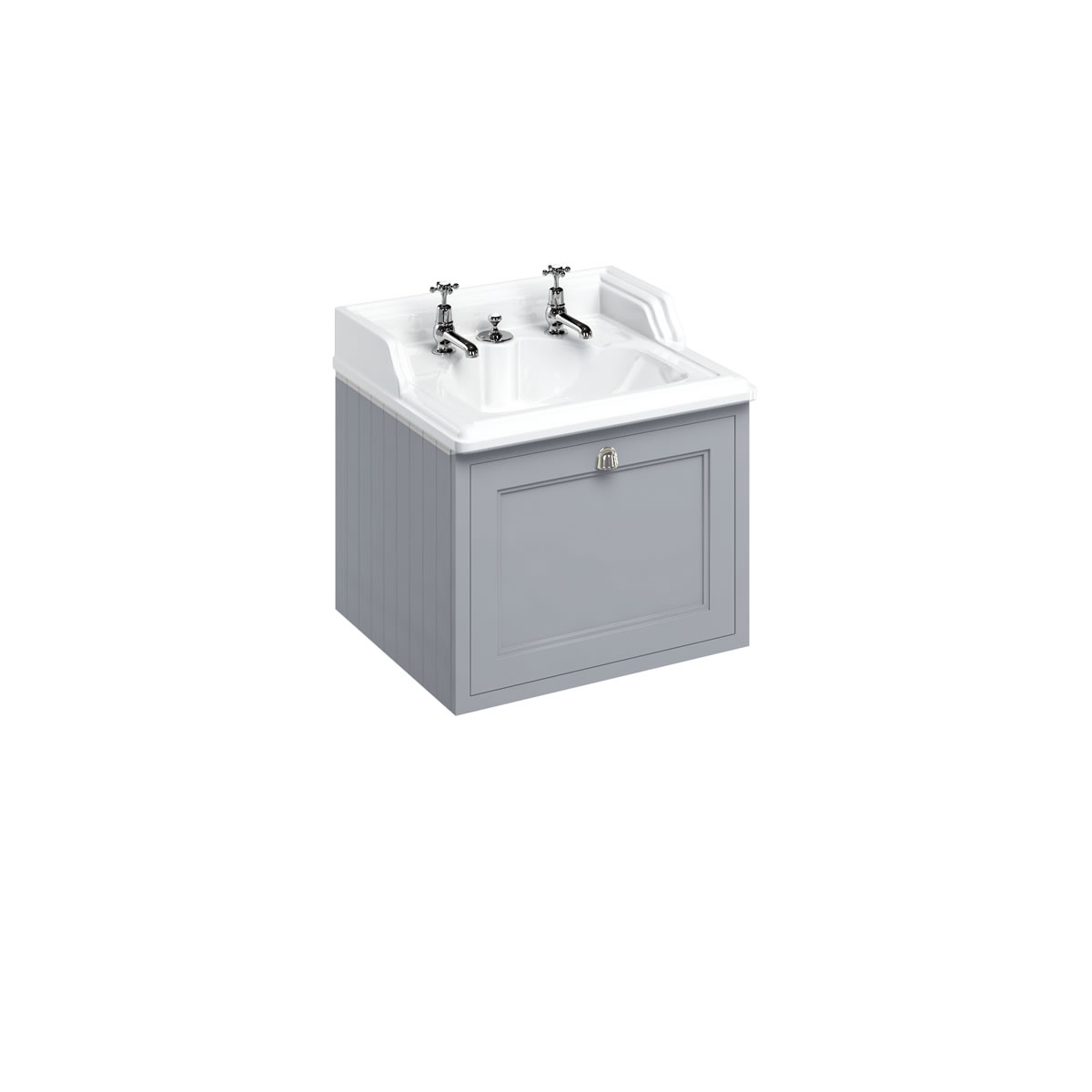

Classic Grey
|
As Shown
| B14 Classic 65cm basin for integrated waste & overflow |
| FW1O 600 wall hung single drawer unit with end finished panel |
Nett Weight
| B14 - basin - 16.95kg |
| FW1O - base unit - 21kg |
Gross Weight Including Packaging
| B14 - basin - 21.15kg |
| FW1O - base unit - 25kg |
Packed Dimension
| B14 - 670 x 597 x 315 = 0.126 m3 |
| FW1O - 690 x 590 x 540 = 0.2198 m3 |
Tap Hole Options
| Available with two (2TH) tap holes only |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
|
EN14749:2016 |
Additional Information
|
The invisible overflow drains the water when the water level reaches the top of the basin. |
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Drawers are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
| SP670 | one set of drawer runner 400mm for Burlington units |
Downloads
-
2D CAD-File - DWG -
FW1O_B14
(FW1_B14.dwg)
-

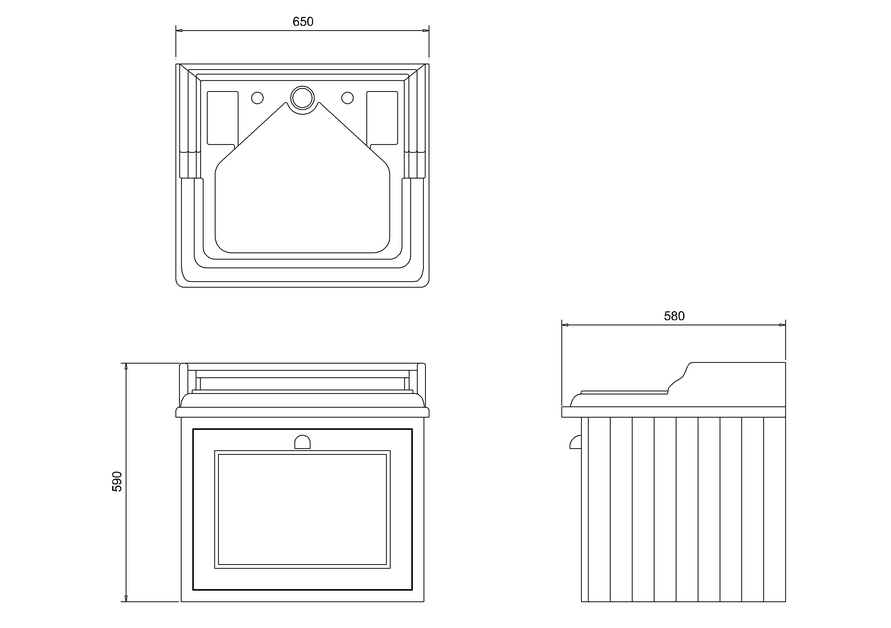

2D Drawing - PDF -
FW1O_B14
(FW1_B14.pdf)
2D Drawing - PDF - FW1O_B14
-
3D DWG - File - DWG
-
FW1O_B14
(90563.dwg)
-
3D DXF - File - DXF
-
FW1O_B14
(90563.dxf)
-
3D IGS - File - IGS
-
FW1O_B14
(90563.igs)
-
3D RFA BIMM Objects - File - RFA
-
FW1O_B14
(90563.rfa)
