Stand pipes

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG7 Bath Legs

ELG6 Bath Filler

Colour

ELG7 - legs - Polished Chrome

ELG6 - tap - chrome

Material

ELG7 - legs - Brass

ELG6 - tap - brass

Size

ELG7 - 95 x 95 x 740mm

ELG6 - 240 x 208 x 167mm

Nett Weight

ELG7 - legs - 4.67kg

ELG6 - tap - 4.25kg

Gross Weight Including Packaging

ELG7 - legs - 4.83kg

ELG6 - tap - 4.5kg

Packed Dimension

ELG7 - 800 x 140 x 85 = 0.0095 m3

ELG6 - 250 x 250 x 235 = 0.0147 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Downloads

Instructions - PDF - ELG7 (English)
Instructions - PDF - ELG6 (English)

2D CAD-File - DWG - ELG6 ELG7 (ELG6 ELG7_LD.dwg)

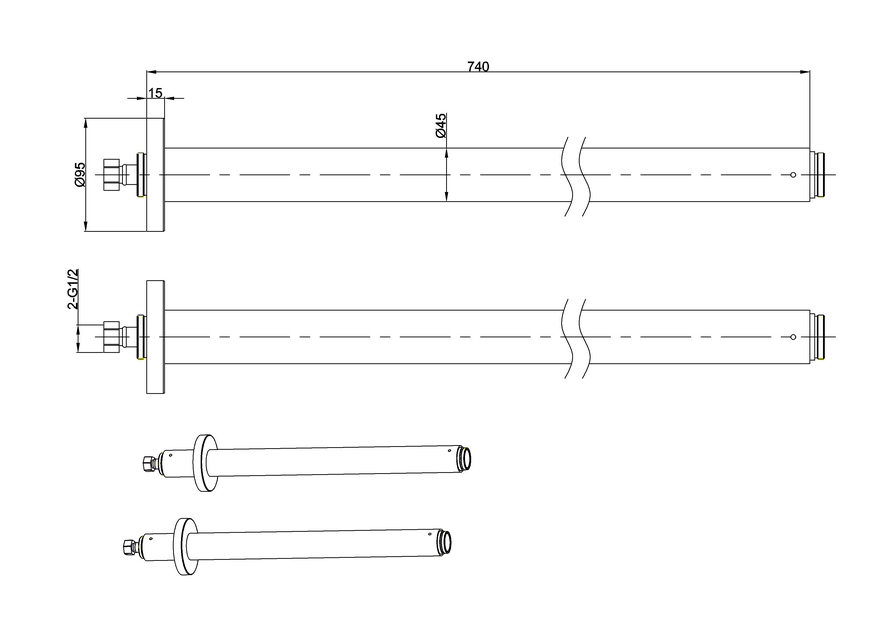

2D Drawing - PDF - ELG6 ELG7 (ELG6 ELG7_LD.pdf) 2D Drawing - PDF - ELG6 ELG7

3D IGS - File - IGS - ELG6 ELG7 (ELG7_aa002fc.igs)
3D RFA BIMM Objects - File - RFA - ELG6 ELG7 (ELG7_aa002fc.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
