Bath shower mixer

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG23 Bath shower mixer with handset kit

Colour

ELG23 - tap - Polished Chrome

Material

ELG23 - tap - Brass

Size

ELG23 - 240 x 203 x 167mm

Nett Weight

ELG23 - tap - 4.5kg

Gross Weight Including Packaging

ELG23 - tap - 4.75kg

Packed Dimension

ELG23 - 250 x 250 x 235 = 0.0147 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	16.39	n/a	40.84	n/a	70.69	n/a	n/a
Shower	4.84	n/a	10.85	n/a	23.28	n/a	n/a

Downloads

Instructions - PDF - ELG23 (English)

2D CAD-File - DWG - ELG23 (ELG23_LD.dwg)

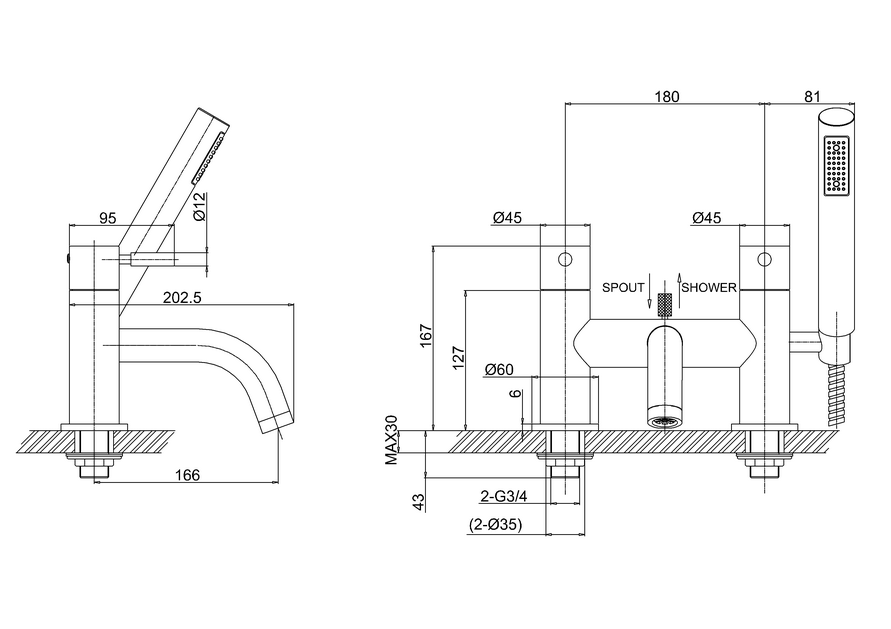

2D Drawing - PDF - ELG23 (ELG23_LD.pdf) 2D Drawing - PDF - ELG23

3D IGS - File - IGS - ELG23 (ELG23_DE422DC.igs)
3D RFA BIMM Objects - File - RFA - ELG23 (ELG23_DE422DC.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
