Bath filler

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG6 Bath Filler

Colour

ELG6 - tap - chrome

Material

ELG6 - tap - brass

Size

ELG6 - 240 x 208 x 167mm

Nett Weight

ELG6 - tap - 4.25kg

Gross Weight Including Packaging

ELG6 - tap - 4.5kg

Packed Dimension

ELG6 - 250 x 250 x 235 = 0.0147 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	16.27	n/a	33.93	n/a	73.85	n/a	n/a

Downloads

Instructions - PDF - ELG6 (English)

2D CAD-File - DWG - ELG6 (ELG6_LD.dwg)

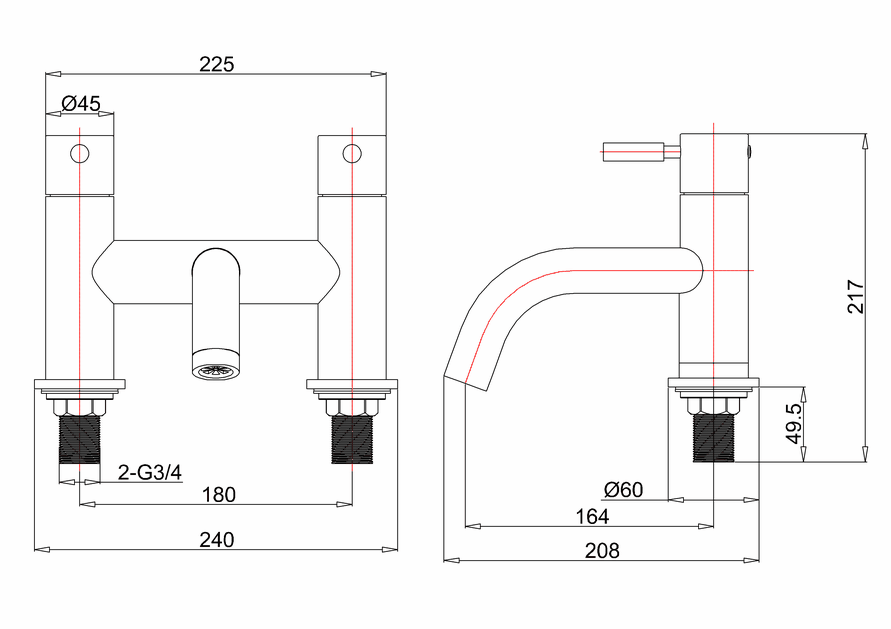

2D Drawing - PDF - ELG6 (ELG6_LD.pdf) 2D Drawing - PDF - ELG6

3D IGS - File - IGS - ELG6 (ELG6_DE322DC.igs)
3D RFA BIMM Objects - File - RFA - ELG6 (ELG6_DE322DC.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
