Bath 2 hole filler

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG18 Bath 2 Hole Filler

Colour

ELG18 - tap - Polished Chrome

Material

ELG18 - tap - Brass

Size

ELG18 - 175 x 205 x 130mm

Nett Weight

ELG18 - tap - 2kg

Gross Weight Including Packaging

ELG18 - tap - 2.13kg

Packed Dimension

ELG18 - 340 x 220 x 110 = 0.0082 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	3.37	5.84	9.55	12.31	18.5	n/a	20.26

Downloads

Instructions - PDF - ELG18 (English)

2D CAD-File - DWG - ELG18 (ELG18_LD.dwg)

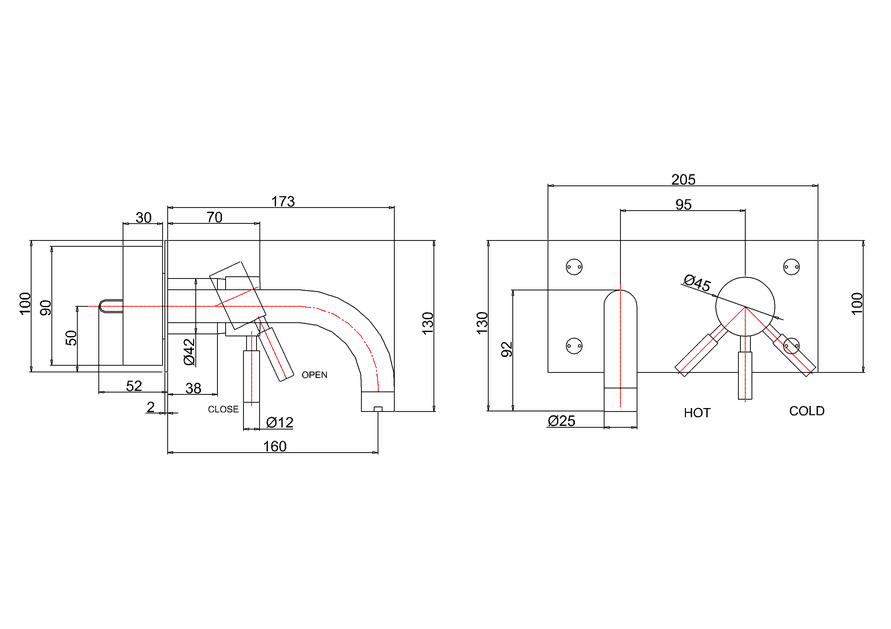

2D Drawing - PDF - ELG18 (ELG18_LD.pdf) 2D Drawing - PDF - ELG18

3D IGS - File - IGS - ELG18 (ELG18_DE321WC.igs)
3D RFA BIMM Objects - File - RFA - ELG18 (ELG18_DE321WC.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
