Mini basin mono

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG8 Mini Basin Mono

Colour

ELG8 - tap - Polished Chrome

Material

ELG8 - tap - Brass

Size

ELG8 - 135 x 125 x 50mm

Nett Weight

ELG8 - tap - 1.13kg

Gross Weight Including Packaging

ELG8 - tap - 1.25kg

Packed Dimension

ELG8 - 199 x 199 x 85 = 0.0034 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	1.55	n/a	4.5	n/a	8.14	n/a	n/a

Downloads

Instructions - PDF - ELG8 (English)

2D CAD-File - DWG - ELG8 (ELG8_LD.dwg)

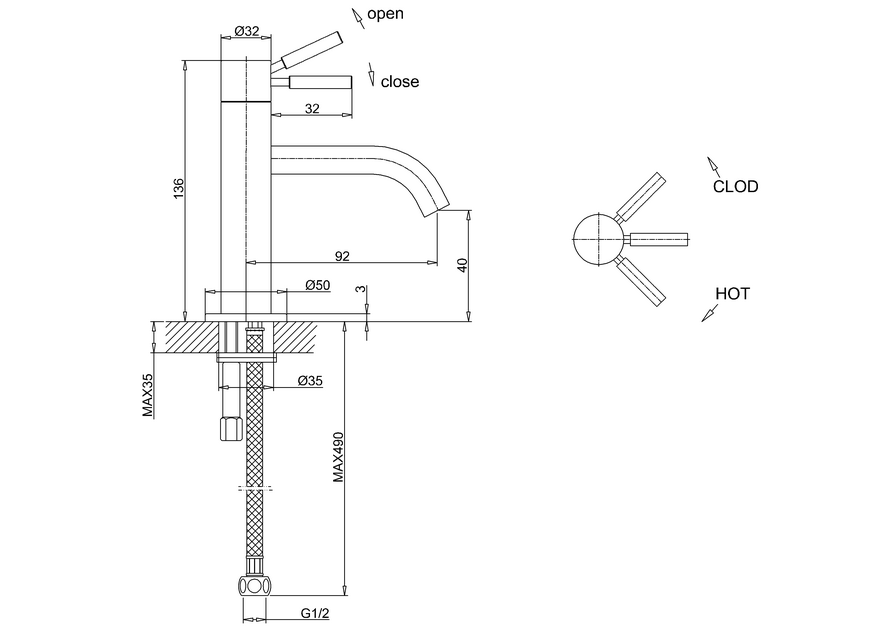

2D Drawing - PDF - ELG8 (ELG8_LD.pdf) 2D Drawing - PDF - ELG8

3D IGS - File - IGS - ELG8 (ELG8_DE114DNC.igs)
3D RFA BIMM Objects - File - RFA - ELG8 (ELG8_DE114DNC.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
