Basin 2 hole set

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG17 Basin 2 Hole Set

Colour

ELG17 - tap - Polished Chrome

Material

ELG17 - tap - Brass

Size

ELG17 - 225 x 205 x 130mm

Nett Weight

ELG17 - tap - 2kg

Gross Weight Including Packaging

ELG17 - tap - 2.13kg

Packed Dimension

ELG17 - 340 x 220 x 110 = 0.0082 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	3.11	n/a	8.37	n/a	15.46	n/a	n/a

Downloads

Instructions - PDF - ELG17 (English)

2D CAD-File - DWG - ELG17 (ELG17_LD.dwg)

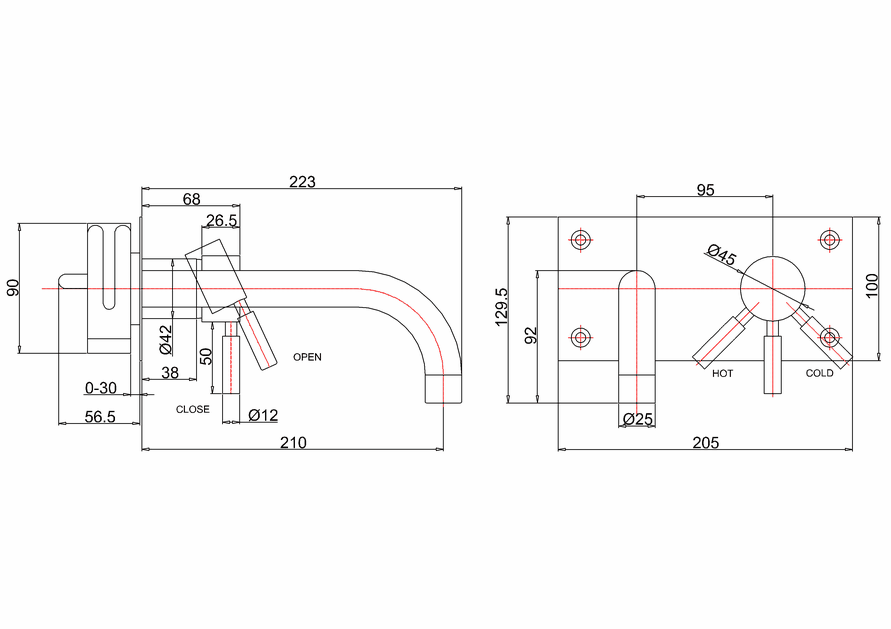

2D Drawing - PDF - ELG17 (ELG17_LD.pdf) 2D Drawing - PDF - ELG17

3D IGS - File - IGS - ELG17 (ELG17_DE121WNC.igs)
3D RFA BIMM Objects - File - RFA - ELG17 (ELG17_DE121WNC.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
