Basin tall mono

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

ELG3 Basin Tall Mono

Colour

ELG3 - tap - Polished Chrome

Material

ELG3 - tap - Brass

Size

ELG3 - 322 x 151 x 54mm

Nett Weight

ELG3 - tap - 2.42kg

Gross Weight Including Packaging

ELG3 - tap - 2.58kg

Packed Dimension

ELG3 - 425 x 250 x 65 = 0.0069 m3

Guarantee

10 year guarantee*
*Full terms & conditions here

Standards Information

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	3.02	6.47	8.09	13.89	14.14	n/a	18.34

Downloads

Instructions - PDF - ELG3 (English)

2D CAD-File - DWG - ELG3 (ELG3_LD.dwg)

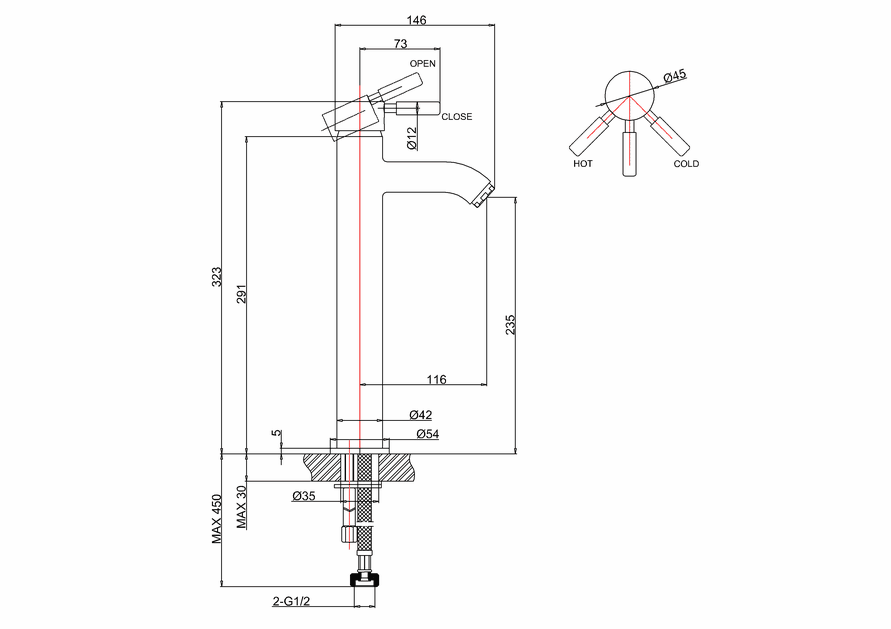

2D Drawing - PDF - ELG3 (ELG3_LD.pdf) 2D Drawing - PDF - ELG3

3D IGS - File - IGS - ELG3 (ELG3_DE112DNC.igs)
3D RFA BIMM Objects - File - RFA - ELG3 (ELG3_DE112DNC.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
