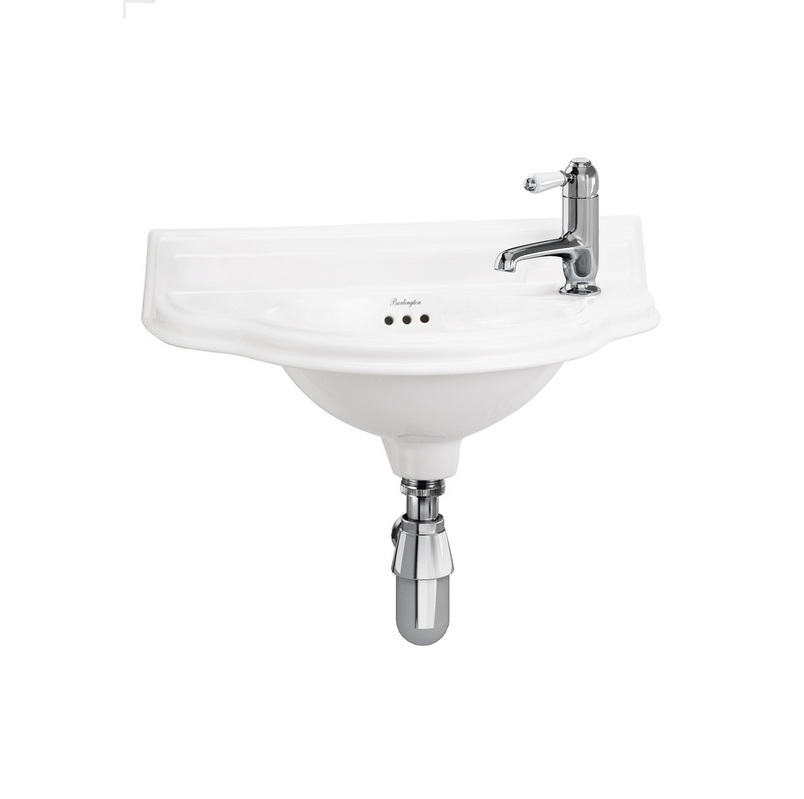

Curved Cloakroom basin
Product Options
tap hole options
|
1 tap hole
|
2 tap holes
|
As Shown
| P13R − |
Tap Hole Options
| Available with one (P13L or P13R) or two (P13) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| SP86 | wall brackets for cloakroom basins |
Downloads
-
2D CAD-File - DWG -
P13R
(P13R_LD.dwg)
-

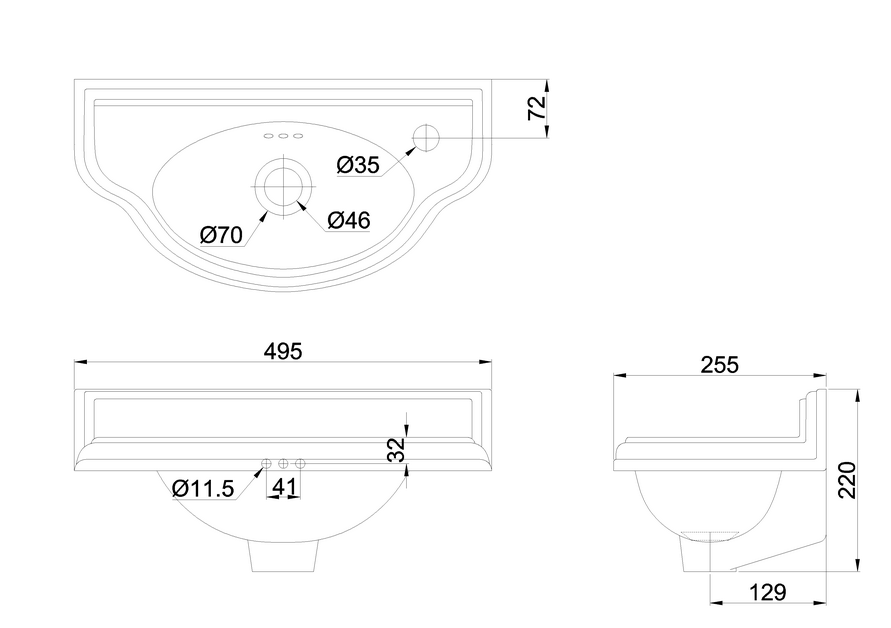

2D Drawing - PDF -
P13R
(P13R_LD.pdf)
2D Drawing - PDF - P13R
-
3D DWG - File - DWG
-
P13R
(WLY014-R P13R.dwg)
-
3D DXF - File - DXF
-
P13R
(WLY014-R P13R.dxf)
-
3D IGS - File - IGS
-
P13R
(WLY014-R P13R.igs)
-
3D RFA BIMM Objects - File - RFA
-
P13R
(WLY014-R P13R.rfa)
