Severn Thermostatic single function brass valve
Product Options
shower head options
Indicies & lever finish
6 inch
|
9 inch
|
12 inch
|
White
|
Medici
|
As Shown
| ME23 Medici B indice - 22mm |
| ME3 Medici ceramic ring 59mm |
| ME4 Medici hot/cold valve indice |
| ME5 Medici top on/off valve lever |
| V16 6 inch shower rose |
| VF1S Severn Thermostatic Single Outlet Concealed Shower Valve with Fixed Shower Arm |
| VF1S MED_V16 - Combined product code |
Colour
| ME23 - indice - medici |
| ME3 - ceramic ring - medici |
| ME4 - indice - medici |
| ME5 - lever - medici |
| V16 - shower rose - Polished Chrome |
| VF1S - valve - Polished Chrome |
Material
| ME23 - indice - ceramic |
| ME3 - ceramic ring - ceramic |
| ME4 - indice - ceramic |
| ME5 - lever - ceramic |
| V16 - shower rose - ABS |
| VF1S - valve - Brass |
Size
| ME23 - 22 x 22 x 6.3mm |
| ME3 - 59 x 59 x 20mm |
| ME4 - 25 x 25 x 6.5mm |
| ME5 - 50 x 50 x 110mm |
| V16 - 180 x 180 x 85mm |
| VF1S - 163 x 128 x 260.7mm |
Nett Weight
| ME23 - indice - 0.004kg |
| ME3 - ceramic ring - 0.032kg |
| ME4 - indice - 0.006kg |
| ME5 - lever - 0.062kg |
| V16 - shower rose - 0.34kg |
| VF1S - valve - 3.43kg |
Gross Weight Including Packaging
| ME23 - indice - 0.02kg |
| ME3 - ceramic ring - 0.04kg |
| ME4 - indice - 0.02kg |
| ME5 - lever - 0.09kg |
| V16 - shower rose - 0.58kg |
| VF1S - valve - 3.98kg |
Packed Dimension
| ME23 - 55 x 54 x 55 = 0.0002 m3 |
| ME3 - 70 x 70 x 25 = 0.0001 m3 |
| ME4 - 55 x 45 x 55 = 0.0001 m3 |
| ME5 - 55 x 55 x 115 = 0.0003 m3 |
| V16 - 200 x 190 x 100 = 0.0038 m3 |
| VF1S - 645 x 215 x 135 = 0.0187 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass faceplate, Claremont handle, with ceramic lever |
|
390mm adjustable fixed shower arm |
|

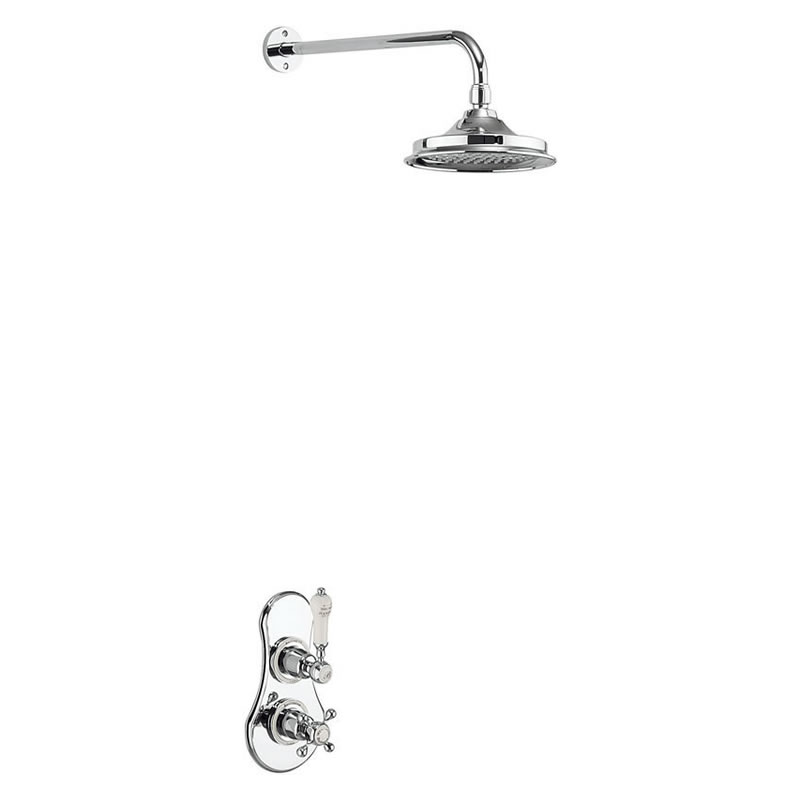

Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet 3/4 female thread |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 3.52 | 4.73 | 7 | 9.86 | 12.68 | n/a | n/a |
| 6 inch rose | 3.59 | 4.92 | 7.08 | 11.06 | 13.35 | n/a | n/a |
| 9 inch rose | 4.11 | 5.15 | 8.11 | 11.44 | 14.36 | n/a | n/a |
| SP163 | ceramic B indices with Chrome for V34 and V36 |
| V10-1 | ceramic lever for shower valve (single) |
| SP52 | ceramic part of lever for all finishes products of Burlington showering products (plain version, without any texts) |
| SP614 | ceramic ring for Trent, Severn, Spey |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP606 | face plates for SF1S, VF1S |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP599 | grub screw (M4x4) |
| SP313 | hent F3 flow control cartridge |
| SP842 | inlet filter for all finishes products of V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64 |
| SP753 | lever holder for Trent, Severn, Avon, Spey shower valves |
| SP751 | lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S |
| SP1499 | new Cartridge cap & grub screw for ON-OFF cartridge fo product TF1H, TF1H BLA, TF1S, TF1S BLA, TF3S, TF3S BLA, VF1S, VF3S - Chrome finish |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP1477 | retaining ring for all finishes products of TF3S, TF2S, TF1S, TF1H, VF1S, VF3S, SF1S, SF3S |
| SP1479 | retaining sleeve for TF1S, V52, TF3S, VF3S, TF3S BLA, SF3S, V50, VF1S, TF1H, TF1S BLA, TF1H BLA, SF1S |
| SP815 | retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - V16 (English)
- Instructions - PDF - VF1S (English)
- Instructions - PDF - VF1S (French)
-

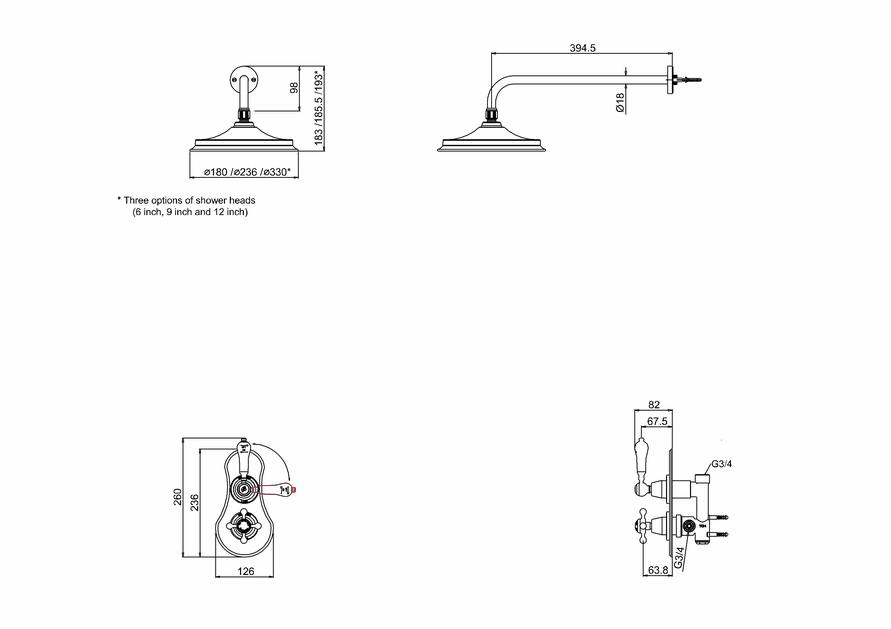

2D CAD-File - DWG -
VF1S MED_V16
(VF1S-V16_LD.dwg)
-
2D Drawing - PDF -
VF1S MED_V16
(VF1S-V16_LD.pdf)
2D Drawing - PDF - VF1S MED_V16
-
3D RFA BIMM Objects - File - RFA
-
VF1S MED_V16
(VF1S-V16.rfa)
- 3D DWG - File - DWG - VF1S (VF1S.dwg)
- 3D DXF - File - DXF - VF1S (VF1S.dxf)
- 3D IGS - File - IGS - VF1S (VF1S.igs)
- 3D IGS - File - IGS - ME4 (ME4.igs)
- 3D DWG - File - DWG - V16 (V16_6_showerhead.DWG)
- 3D DXF - File - DXF - V16 (V16_6_showerhead.dxf)
- 3D IGS - File - IGS - V16 (V16_6_showerhead.igs)
- 3D STP - File - STP - V16 (V16_shower_head.stp)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V16 (V16_6_showerhead.rfa)
