Avon Thermostatic single function brass valve
Product Options
shower head options
6 inch
|
9 inch
|
12 inch
|
As Shown
| AF1S Avon Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm |
| V16 6 inch shower rose |
| AF1S+V16 - Combined product code |
Nett Weight
| AF1S - shower kit - 3.41kg |
| V16 - shower rose - 0.34kg |
Gross Weight Including Packaging
| AF1S - shower kit - 4.59kg |
| V16 - shower rose - 0.58kg |
Packed Dimension
| AF1S - 480 x 295 x 175 = 0.0248 m3 |
| V16 - 200 x 190 x 100 = 0.0038 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass body, Claremont handle, with ceramic levers |
|
390mm adjustable fixed shower arm |
|

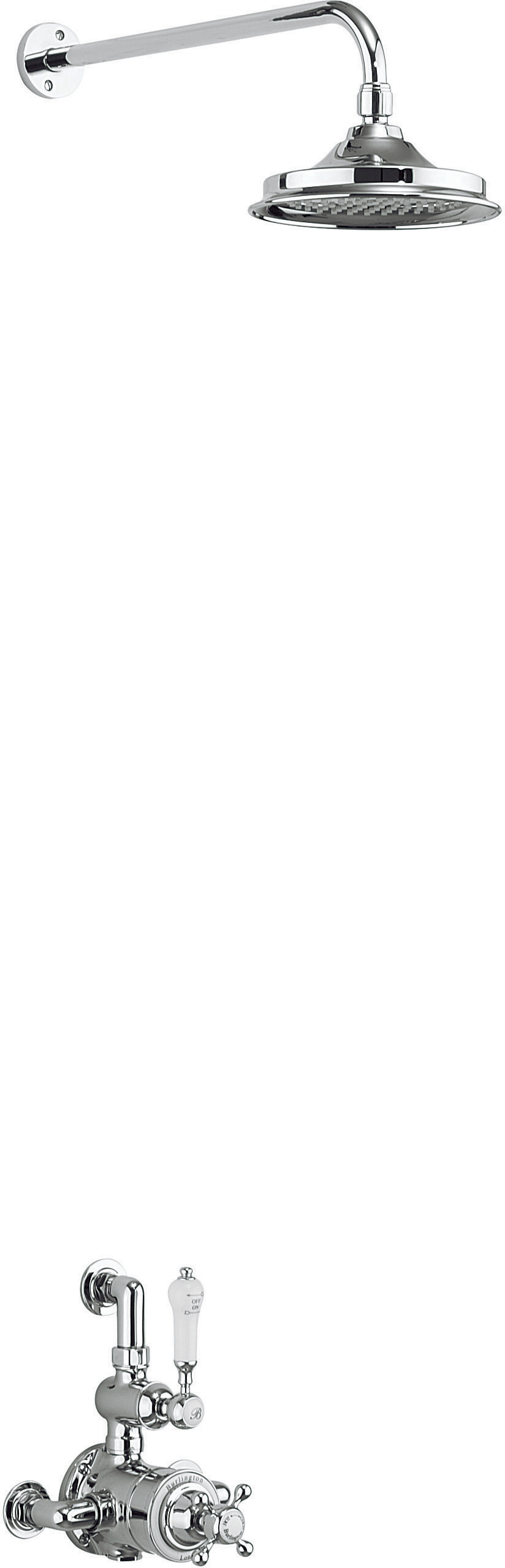

Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet ∅15mm |
Compatible Products
| V2 - Anglesey Valve Handle (single) |
| V3 - Birkenhead Valve Handle (single) |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.81 | 5.46 | 9.5 | 14.67 | 18.76 | n/a | n/a |
| 6 inch rose | 4.08 | 5.12 | 7.82 | 12.36 | 15.51 | n/a | n/a |
| 9 inch rose | 3.93 | 4.42 | 7.33 | 11.35 | 14.83 | n/a | n/a |
| SP118 | 2 x chrome dome + 2 x connection part for V25 |
| SP376 | adaptor(pair) G1, 2 male thread to 15mm pipe |
| SP175 | back plate of product AF3S, AF1S, ARC74 CHR |
| SP578 | bottom blanking plate for AF1S |
| SP958 | cartridge cap of product AF1S, AF3S |
| SP163 | ceramic B indices with Chrome for V34 and V36 |
| V10-1 | ceramic lever for shower valve (single) |
| SP52 | ceramic part of lever for all finishes products of Burlington showering products (plain version, without any texts) |
| SP108 | ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4 |
| SP1664 | check valve for all finishes products of EF1S, EF2S, T2WS, T2DS, AF1S, AF3S, T2DB, T2WB |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP725 | elbow for AF1S excluding the top and bottom nuts |
| SP553 | fixing nut & retaining ring of product AF1S, AF3S, ARC74 CHR |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP1248 | gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S |
| SP599 | grub screw (M4x4) |
| SP603 | grub screw (M5x5) for all finishes products of SF1S, SF3S, AF1S, AF3S, GU422DC, GU422DG, GU422DL |
| SP37 | hent F5 flow control cartridge |
| SP753 | lever holder for Trent, Severn, Avon, Spey shower valves |
| SP751 | lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S |
| SP935 | lower water flow control section of product AF1S, AF3S |
| SP128 | metal block for ARC74 CHR, AF1S, AF3S |
| SP1784 | olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS |
| SP714 | optional elbow for V25, ARC74 CHR, AF1S, AF3S (one pair) |
| SP155 | pair of cover plate for V25, AF3S, AF1S, ARC74 CHR |
| SP1310 | plastic block for all finishes products of AF1S, ARC74, V25, AF3S |
| SP1385 | retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S |
| SP997 | retaining sleeve of products AF1S, AF3S, ARC74 CHR |
| SP130 | single top, bottom control knob for flow of product AF1S, AF3S |
| SP601 | small grub screw (M4x4) |
| SP1369 | top control section for AF3S, V25, AF1S |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP1004 | top outlet elbow (including cover plate, fixing nut, compression ring, O rings) for product AF1S |
| SP32 | vernet T1 temperature control cartridge |
| SP929 | wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H |
Downloads
- Instructions - PDF - AF1S (English)
- Instructions - PDF - V16 (English)
- Instructions - PDF - AF1S (French)
-
2D CAD-File - DWG -
AF1S+V16
(AF1S-V16_LD.dwg)
-

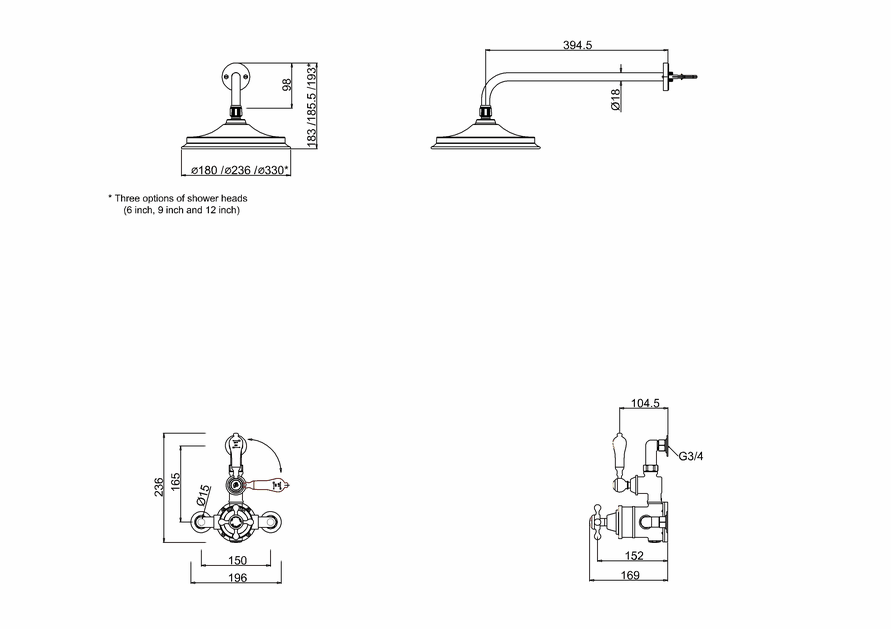

2D Drawing - PDF -
AF1S+V16
(AF1S-V16_LD.pdf)
2D Drawing - PDF - AF1S-V16
-
3D RFA BIMM Objects - File - RFA
-
AF1S+V16
(AF1S-V16.rfa)
-
3D IGS - File - IGS
-
AF1S+V16
(AF1S.igs)
- 3D DWG - File - DWG - AF1S (AF1S.dwg)
- 3D DXF - File - DXF - AF1S (AF1S.dxf)
- 3D DWG - File - DWG - V16 (V16_6_showerhead.DWG)
- 3D DXF - File - DXF - V16 (V16_6_showerhead.dxf)
- 3D IGS - File - IGS - V16 (V16_6_showerhead.igs)
- 3D STP - File - STP - V16 (V16_shower_head.stp)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V16 (V16_6_showerhead.rfa)
